Wireless Remote Handheld - DCS Remote Control Set - 50-1001

DCS Remote Control Set 50-1001

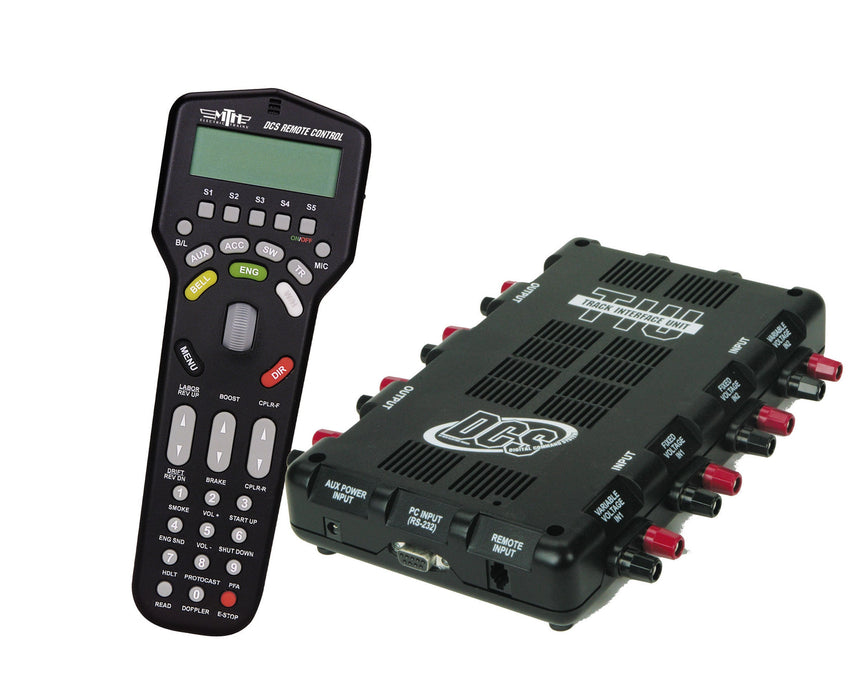

Wireless Remote Handheld

• MICROPHONE - Broadcast your voice from a locomotive with Proto-Dispatch™
• LCD DISPLAY
• SOFTKEYS - Activatelocomotive features
• MIC - Turns Proto-Dispatch™ on & off
• TR - Track menu (Access various tracks / blocks on your layout,for conventional AC mode)
• START UP - Plays engine startup sequence, activates sound, smoke, and lights
• Programming Port - For attaching tether between remote and TIU for programming new software features
• SW - Switch menu (turnout control)
• CPLR-F/CPLR-R Fires front & rear couplers
• THUMBWHEEL - Throttle & selection (scroll & press) tool DIR - Changes locomotive direction
• W/H - Blows whistle/horn
• DIR - Changes locomotive direction
• DOPPLER - Activates
• Proto-Doppler™
• E-STOP - Emergency Stop cuts power to all tracks
• PFA - Activates
• Passenger Station/Freight Yard Sounds
• SHUT DOWN - Plays engine shut down sequence, turns off sound, smoke, and lights
• START UP - Plays engine startup sequence, activates sound, smoke, and lights
• Programming Port - For attaching tether between remote and TIU for programming new software features
• B/L - Screen backlight on/off
• ACC - Accessory menu
• BELL - Rings bell
• ENG - Engine menu (to select and control engines)
• MENU - Access 4 main menus: Sound, Control, System, Advanced
• LABOR/REV UP OR DRIFT/REV DN Makes an engine sound like it's working harder (labored steam chuff or higher revving diesel) or easier (drifting chuff or lower revving diesel)
• BOOST/BRAKE Temporarily Raises or Lowers Speed
• SMOKE - Turns smoke unit on & off
• VOL+ - Globally increases all sounds
• VOL - Globally decreases all sounds
• ENG SND - Silences engine sounds
• HDLT - Turns headlights on & off
• PROTOCAST - Activates Proto-Cast™ for playing external music or sound effects through an engine
• READ - Search for TIUs, AIUs and Proto-Sound® 2.0 or 3.0 engines on the track

TIU-Track Interface Unit

• Proto-Cast (Audio) Connect any audio source using optional mini-to-mini cable (50-1009) and
  broadcast through engine
• OUTPUTS
  Two channels constantvoltage DCS command power (AC or DC) • Two channels conventional
  (variable voltage) or DCS command power (AC only)
• Proto-Dispatch (input for optional auxiliary microphone)
• AIU Input
• FIXED INPUTS up to two AC or DC transformers
• VARIABLE INPUTS up to two additional AC transformers
• Remote Input for programming new software features
• Serial Interface (RS-232)
• Aux Power Input
