Voltage Checker/Dyn 0001

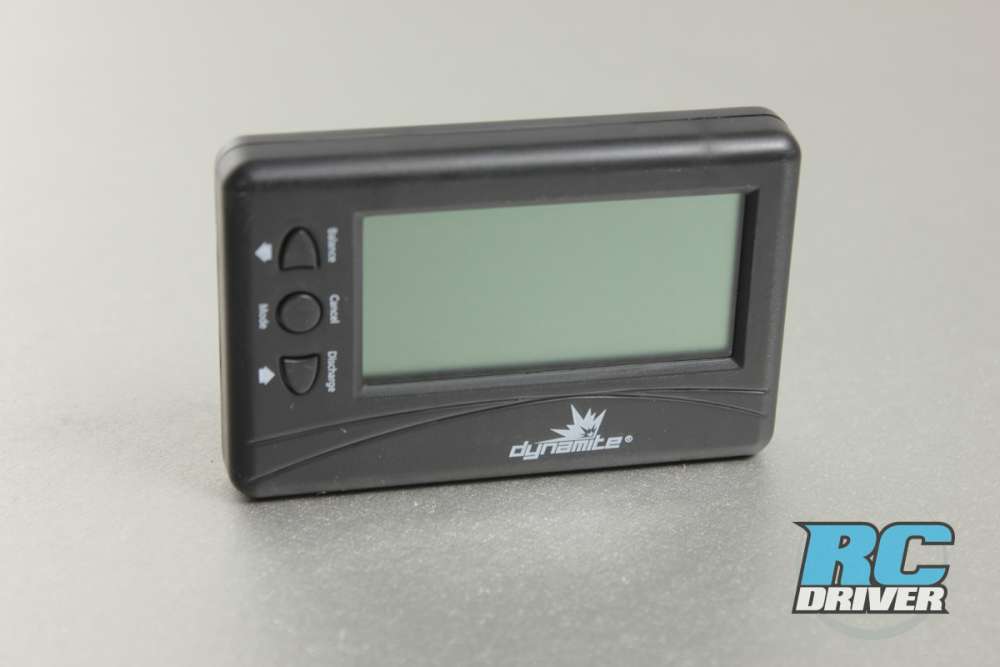

This is a LiPo voltage checker and warning alarm from Dynamite RC.

Features:

• LED status indicator and high-pitch warning sound
• Protects aircraft from unwanted landings and batteries from over-discharging
• Programmable voltage threshold
• Ideal for all electric vehicles, boats, and aircraft using LiPo batteries
• Protects drivers from over-discharging LiPO's when using an ESC that doesn't have Low Voltage Cutoff
• Monitors a battery's low voltage down to the cell level

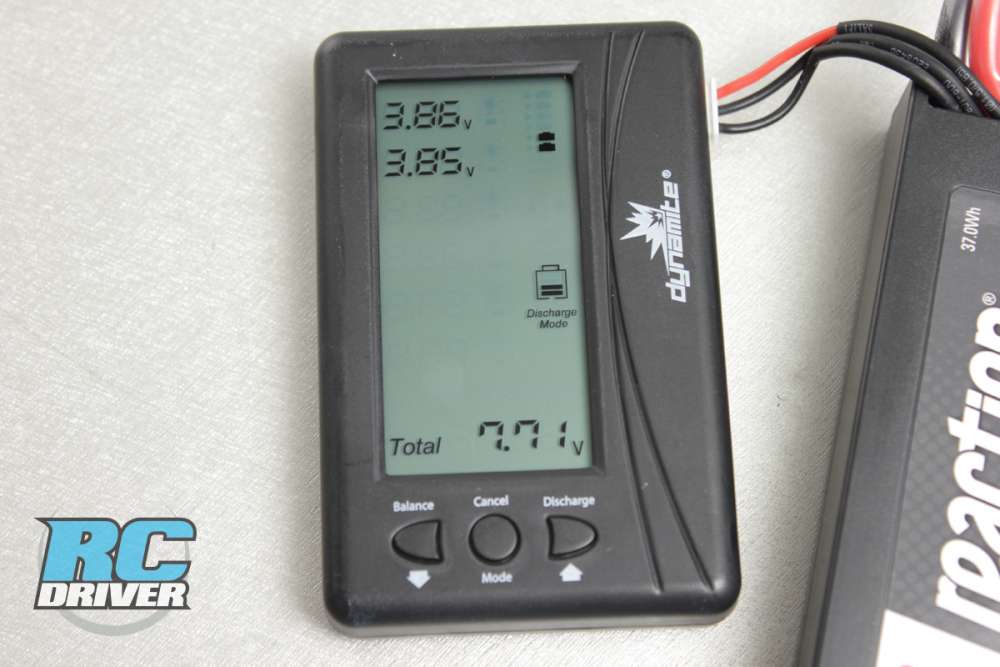

• Unit checks and displays the cell count, voltage of the overall pack and then each cell individually up to 8S

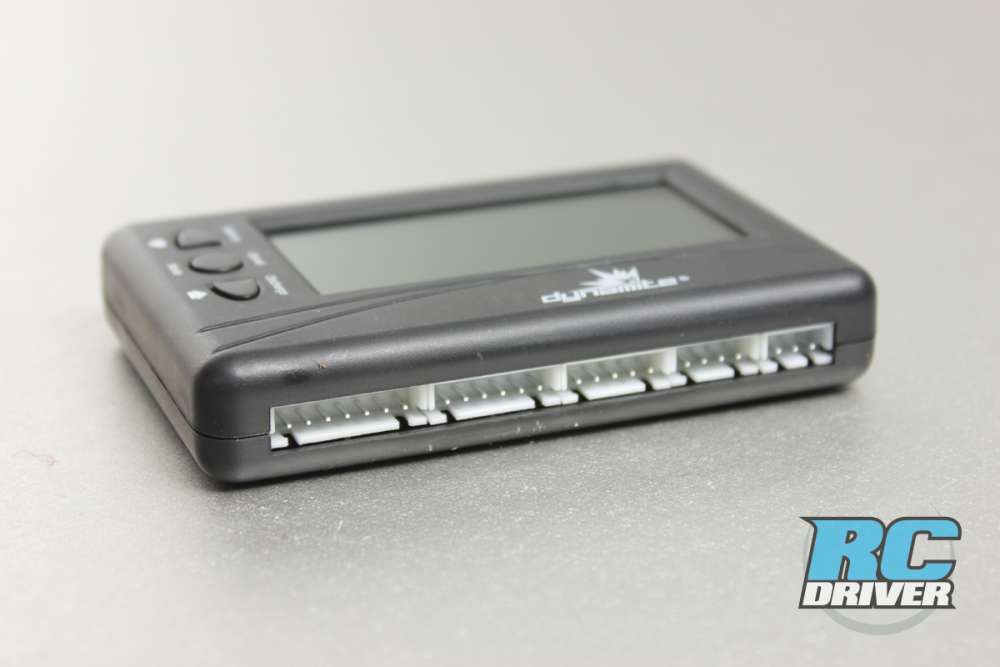

• Compatible with JST-XH type balance connectors
• Large digital LED display
• High-pitched low voltage warning buzzer
• Compatible with 1-8S LiPo/Li-Ion/LiMn/Li-Fe
• Voltage detection precision to 0.01V
• Low voltage alarm mode for 2-8S
• When the cell voltage is below the set value, the buzzer will sound along with red LED light, default is 3.3V

Tech Specs:
Cell Voltage Display Range: 0.5V-4.5V
Pack Voltage Display Range: 0.5V-36V
Alarm Set Value Range: OFF-2.7V-3.8V
Height: 0.35 in (9mm)
Length: 1.53 in (39mm)
Width: 0.94 in (24mm)
