Ublox Neo M8n Gps

Ublox NEO-M8N GPS with Compass for Pixhawk with extra connector for APM

1. Ready to Connect to PIXHAWK FC with 6-pin connector Attached

2.  Receiver type 72-channel Ublox M8 engine

3.  Galileo-ready E1B/C (NEO-M8N)

4.  Nav. update rate1 Single GNSS: up to 18 HZ

5.  Acquisition Cold starts: 26 s

6. Onboard Compass

Features:

1.  GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1

2.  SBAS L1 C/A: WAAS, EGNOS, MSAS

3.  Galileo-ready E1B/C (NEO-M8N)

4. Onboard Compass

5.  Assistance AssistNow GNSS Online

6.  AssistNow GNSS Offline (up to 35 days)

7.  AssistNow Autonomous (up to 6 days)

8.  OMA SUPL & 3GPP compliant

9.  Oscillator TCXO (NEO-M8N/Q),

10.  Crystal (NEO-M8M)

11.  RTC crystal Built-In

12.  Noise figure On-chip LNA (NEO-M8M). Extra LNA for

13.  lowest noise figure (NEO-M8N/Q)

14.  Anti-jamming Active CW detection and removal. Extra

15.  onboard SAW bandpass filter (NEO-M8N/Q)

16.  Memory ROM (NEO-M8M/Q) or Flash (NEO-M8N)

17.  Supported antennas Active and passive

18.  Odometer Travelled distance

19.  Data-logger For position, velocity, and time (NEO-M8N)

Package Includes:

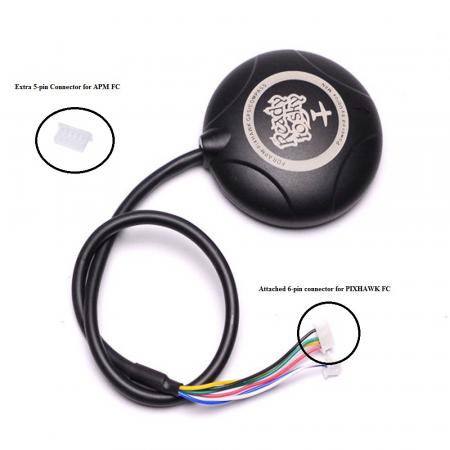

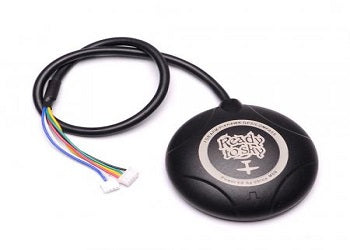

1 x Ublox NEO M8N GPS for Pixhawk and APM flight controller
1 x Extra 5-pin Connector  for APM FC
