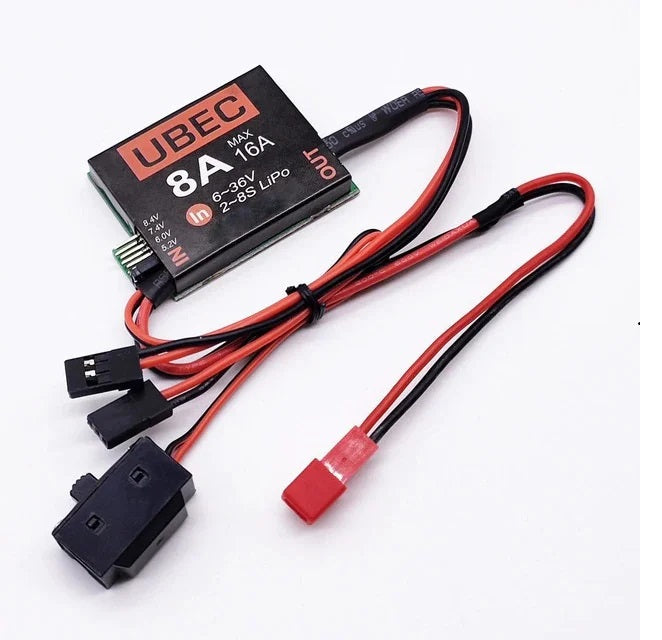

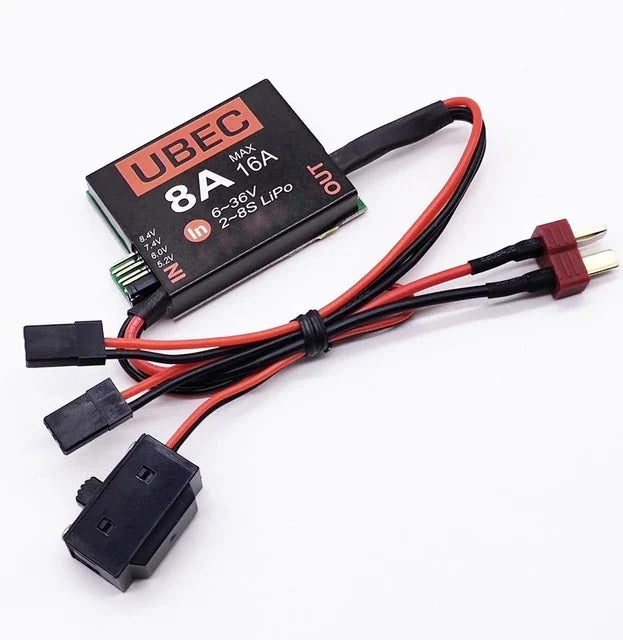

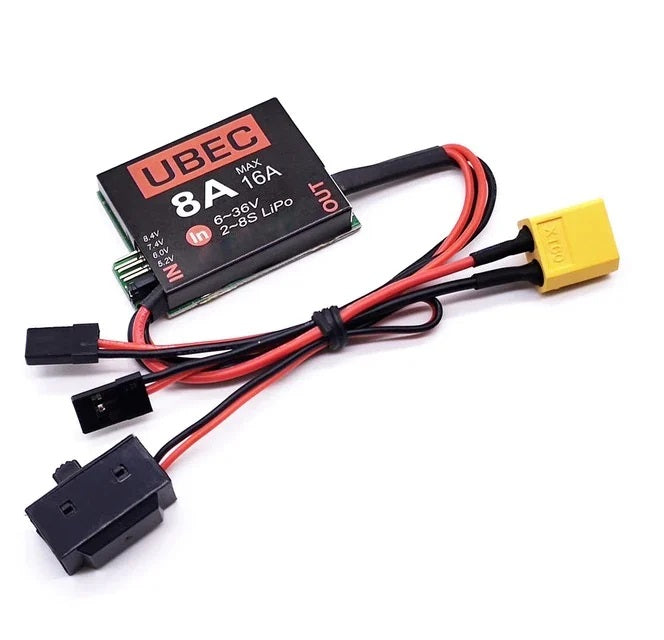

Ubec-8A 6-36V 2~8S Lipo Esc

Ubec-8A 6-36V 2~8S LIPO ESC

1. Model: 8A-UBEC is a DC-DC regulator
2. Input: 6V-36V (2-8 cells lithium battery pack)
3. Output Voltage: 5.2V,6.0V,7.4V,8.4V  optional
4. Continuous output currenT: 8 Amps
5. Burst output current: 15 Amps

The 8A-UBEC is a switching-mode DC-DC regulator supplied with a 2-3 cells lithium battery pack and it outputs a consistent safe voltage for your receiver, gyro and servos. It is very suitable for nitro powered RC helicopter (bigger than 30 class) and big fixed-wing aircraft.
Compared with the linear mode UBEC, the overall efficiency of the switching-mode BEC is much higher, so it can extend the working time of the receiver battery pack, and because a switch mode UBEC can significantly reduce the heat emission, it can avoid the loss of control caused by the over-heat problem which is frequently happened with the linear mode UBEC.

Features:

1. It adopted the advance DC-DC regulator chip with conversion efficiency exceeds 90%
2. Applicable for all kinds of recievers/gyros/servos,etc
3. Dual parallel output can carry larger current
4. Cables provide larger current to flow into the receiver
5. The external switch can turn on/off  the UBEC easily.

Specifications:

1.  Output Voltage: 5.2V,6.0V,7.4V,8.4V  optional
2.  Continuous output current: 8 Amps
3.  Burst output current: 15 Amps
4.  Input: 6V-36V (2-8 cells lithium battery pack)
5.  Weight: 36g

Package Includes:

1 x Ubec-8A 6-36V 2~8S LIPO ESC
