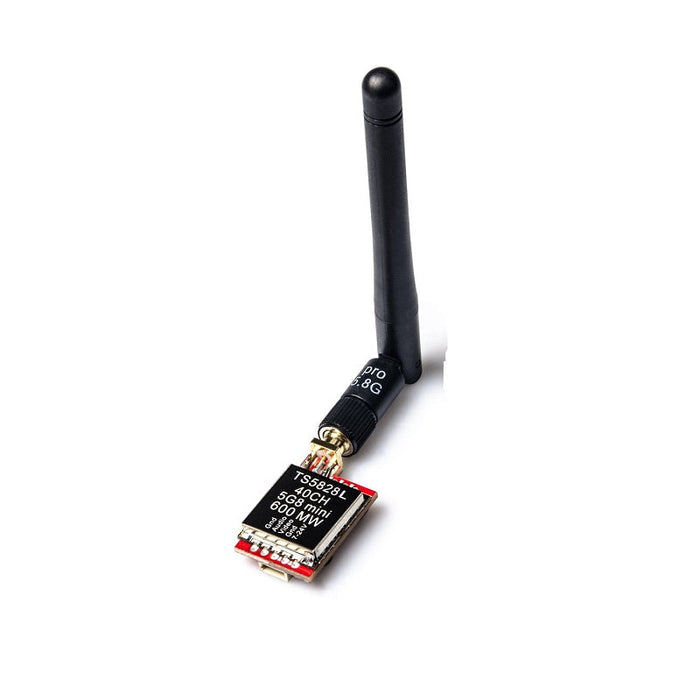

TS5828L 5.8G 600MW 40CH Transmitter with Antenna
TS5828L 5.8G 600MW 40CH Transmitter with Antenna
Description:
The all-new TS5828L Mini 40CH 600MW Transmitter packs a whopping 600mW of ultra-clean 5.8GHz power! A must for those looking for longer range and locked in the video.
The TS5828L is transmitting a full range of 48 channels and uses an easy-to-use interface, it also comes with a clean pre-wired harness, and only weighs in at a scant 15grams, it’s Perfect for a wide range of aircraft!
The TS5828L packs 600mw of 5.8GHz power and 48 channels into a micro-sized audio/video transmitter. It weighs just 15g completed with the wire harness and stock antenna, making it perfect for a wide range of aircraft and particularly for smaller 150-250 sized multi-rotors such as the 250QAV.
Frequency Table:
You can couple this 5.8GHz transmitter with our FPV cameras,
FPV Camera
Features :
- Compact and lightweight
- Perfect for use with small models
- Covers A, B, C, D, H, L bands
- 48 Channels
- 600mw RF output
- Wide input voltage range
- Long-range:1~2km with the stock antenna
- Stable signal
Package Includes:

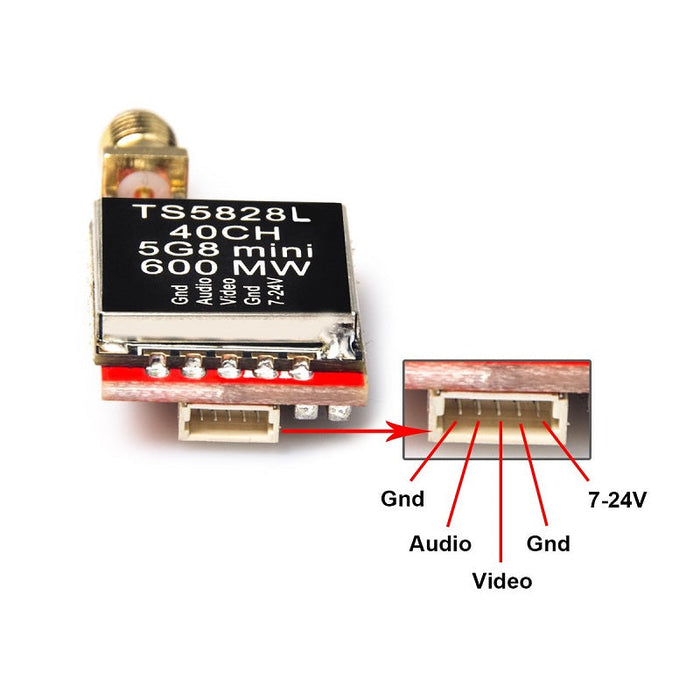

1 x TS5828L Mini 40CH 600MW Transmitter module
1 x Threaded Detachable Antenna
1 x AV Cable
Specification:
| Item Name |
FPV Transmitter |
| Channel |
48CH |
| Frequency(GHz) |
5.6G-5.9G |
| Current(mA) |
190mA |
| Temperature(℃) |
-10℃ to 85℃ |
| Video Bandwidth(MHz) |
8 |
| Audio Bandwidth(MHz) |
6.5 |
| Antenna |
RP-SMA |
| Antenna Length(mm) |
106 |
| Antenna Diameter(mm) |
8 |
| Weight(g) |
16 |
| Length (mm) |
38 |
| Width (mm) |
18 |
| Height (mm) |
8 |
| Shipment Weight |
0.02 kg |
| Shipment Dimensions |
11 × 5 × 2 cm |
