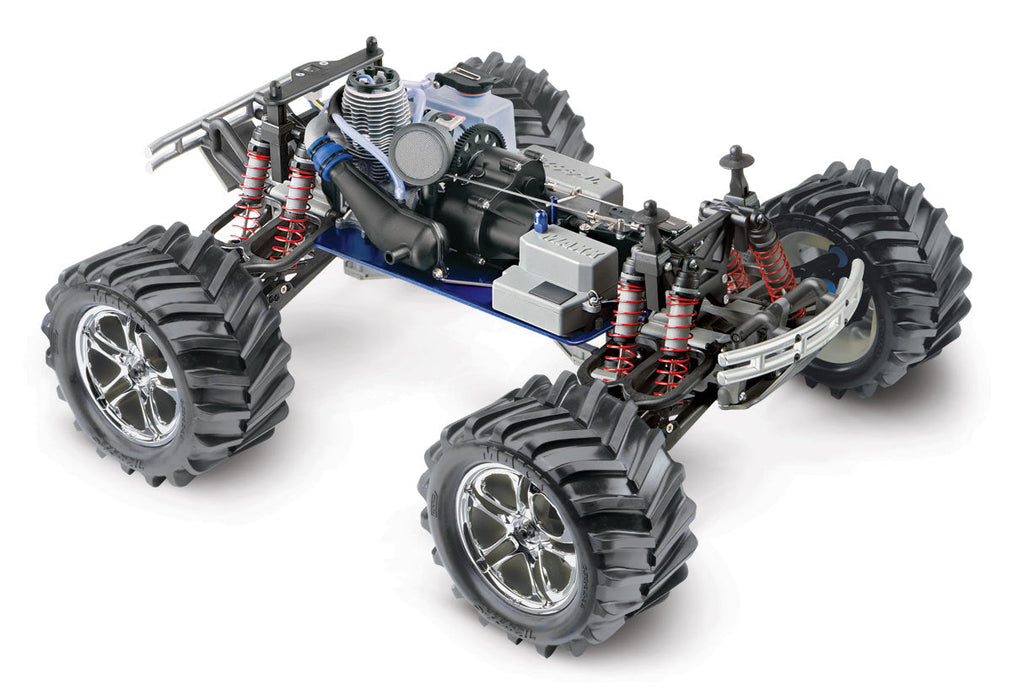

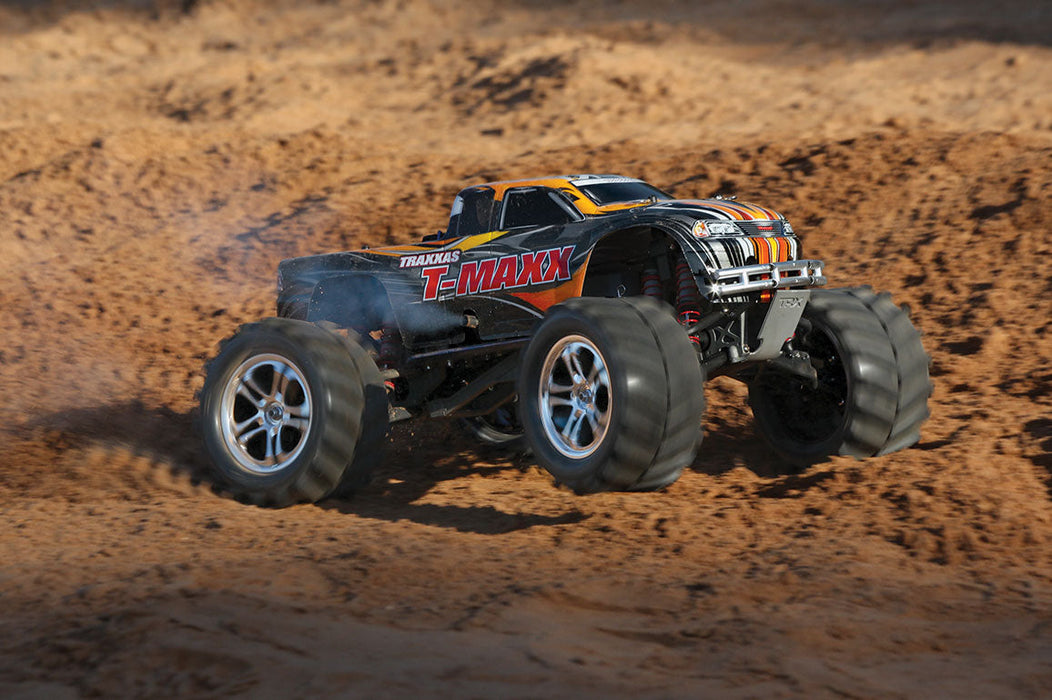

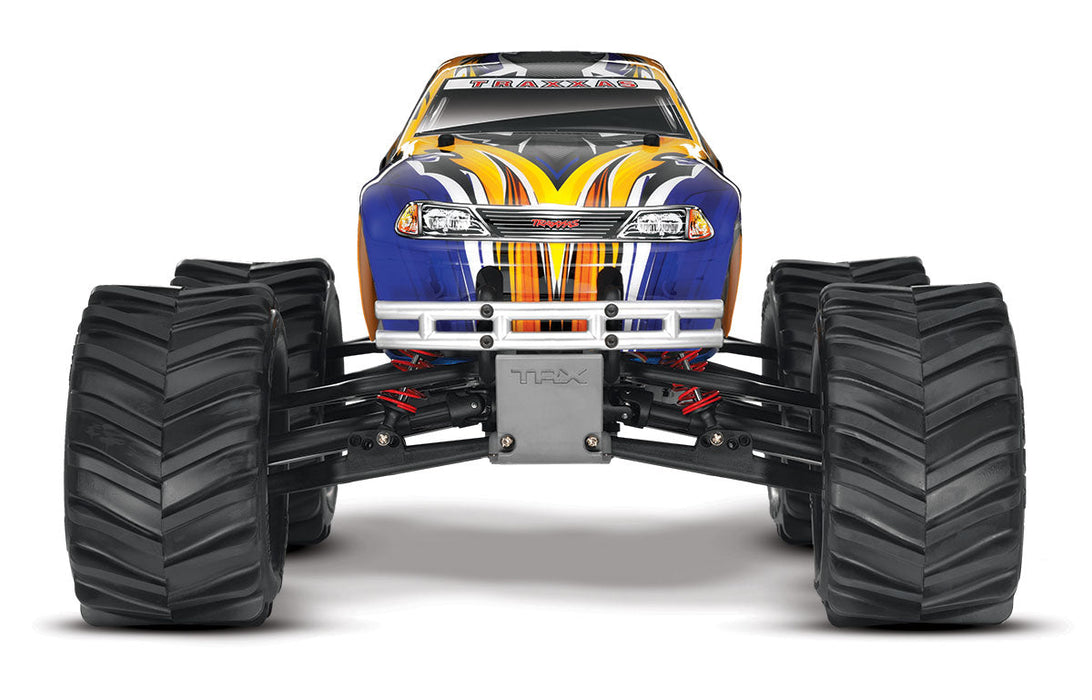

Traxxas T-Maxx 2.5 1/10Scale Monster Truck 4Wd White 49104-1

T-MAXX 3.3 (#49077-1)


T-MAXX (#49104-1)


ENGINE

TRX® 3.3

TRX® 2.5

STARTER

EZ-START®

EZ-START®

CHASSIS TYPE

EXTENDED CHASSIS
4 MM 6061-T6 ALUMINUM

3.2 MM 6061-T6
ALUMINUM

LENGTH (INCLUDING WHEELIE BAR)

21.2 INCHES
539 MM

19.1 INCHES
486 MM

FRONT TRACK

16.5 INCHES
417 MM

16.5 INCHES
417 MM

REAR TRACK

16.5 INCHES
417 MM

16.5 INCHES
417 MM

CENTER GROUND CLEARANCE

4.2 INCHES
106 MM

4 INCHES
101 MM

HEIGHT (OVERALL)

10.9 INCHES
277 MM

10.4 INCHES
264 MM

WHEELBASE

13.2 INCHES
335 MM

12 INCHES
305 MM

FRONT SHOCK LENGTH

XXLONG

XXLONG

REAR SHOCK LENGTH

XXLONG

XXLONG

WEIGHT (RTR NO FUEL)

4.54 KG
160 OUNCES

4.07 KG
143.5 OUNCES

FRONT TIRES

6.3" X 3.5" X 3.8"

5.75" X 3.2"

REAR TIRES

6.3" X 3.5" X 3.8"

5.75" X 3.2"

FRONT WHEELS

CHROME HURRRICANE™

3.2 INCH 5-SPOKE

REAR WHEELS

CHROME HURRRICANE™

3.2 INCH 5-SPOKE

WHEEL DIAMETER

3.8 INCHES
97 MM

3.2 INCHES
81 MM

TRANSMISSION

WIDE-RATIO
TWO-SPEED
FORWARD-ONLY

AUTO TWO-SPEED
FORWARD/REVERSE

GEAR RATIO (1ST GEAR)

24.8:1

24.1:1

GEAR RATIO (2ND GEAR)

15.8:1

16.4:1

DIFFERENTIAL TYPE

HARDENED STEEL
BEVEL GEAR, SEALED,
LIMITED SLIP

HARDENED STEEL
BEVEL GEAR

DRIVE SYSTEM

SHAFT-DRIVEN 4WD

SHAFT-DRIVEN 4WD

RADIO SYSTEM

TRAXXAS TQ™ 2.4GHZ
HIGH OUTPUT WITH TRAXXAS LINK™
(3-CHANNEL)

TRAXXAS TQ™
(3-CHANNEL)

BRAKE TYPE

VENTED DISC

DISC

FUEL TANK CAPACITY

125 CC

125 CC

TOP SPEED

45+MPH

40+MPH

SKILL LEVEL

4

3
