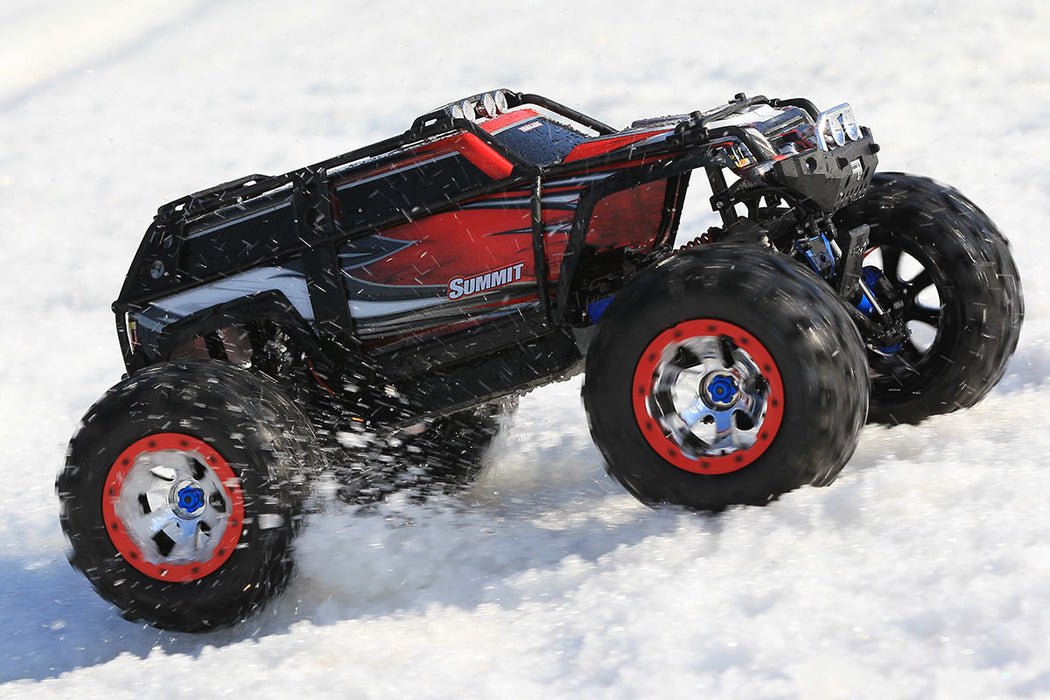

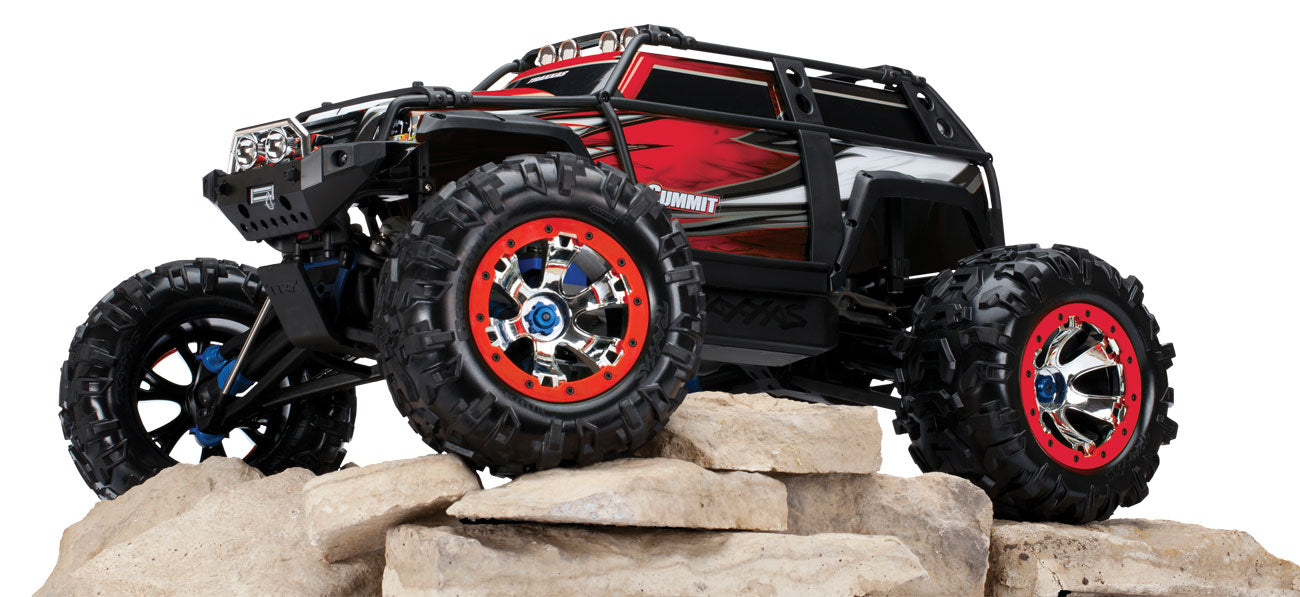

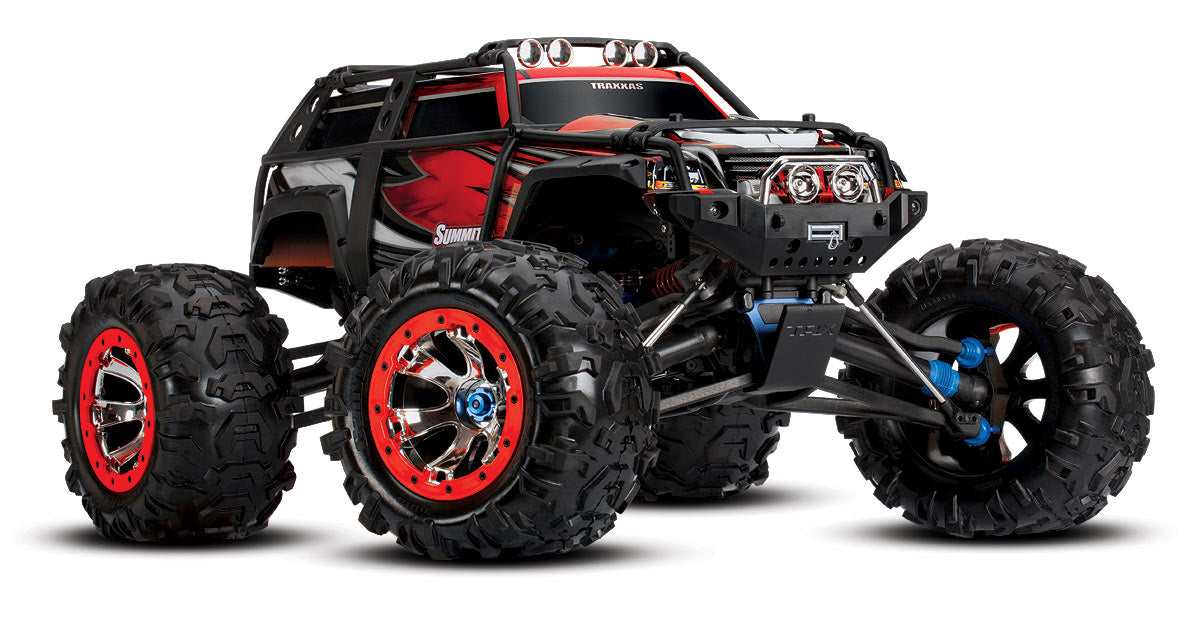

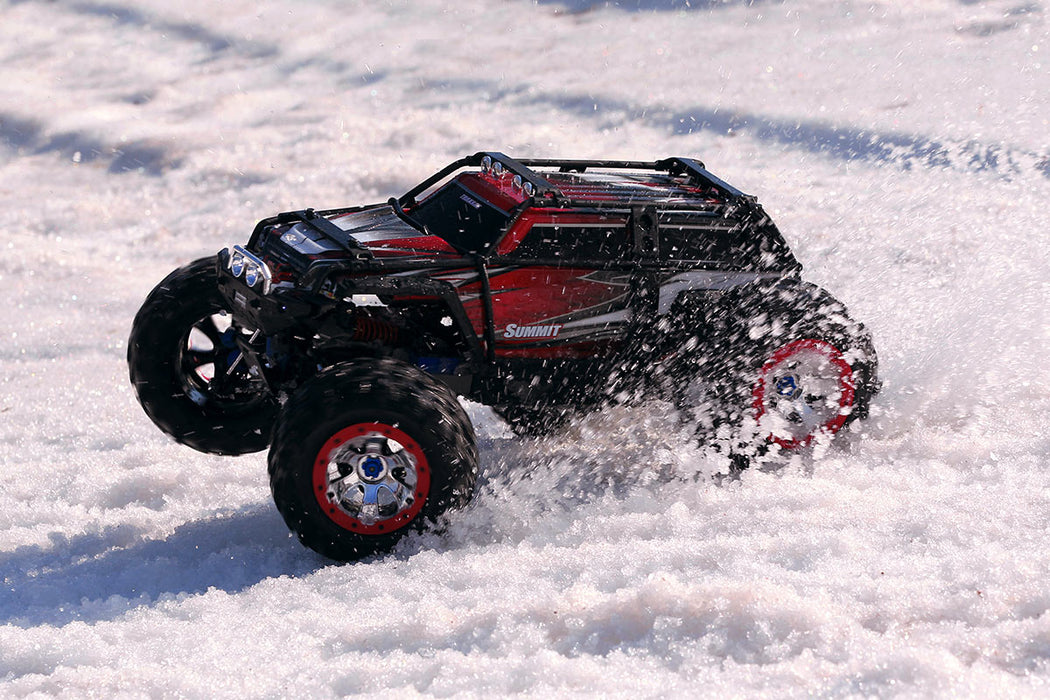

Traxxas Summit 4X4 1/10Scale 4Wd Black/Red 56076-1

LENGTH:

­

22.17 INCHES (563 MM)

FRONT TRACK:

­

18.48 INCHES (470 MM)

REAR TRACK:

­

18.58 INCHES (472 MM)

CENTER GROUND CLEARANCE:

­

4.76 INCHES (121 MM)

WEIGHT:

­

175.66 OUNCES (4.98 KG) (W/O BATTERIES)

HEIGHT (OVERALL):

­

12.6 INCHES (320 MM)

WHEELBASE:

­

14.84 INCHES (377 MM)

FRONT SHOCK LENGTH:

­

87 MM

REAR SHOCK LENGTH:

­

87 MM

FRONT TIRES (PRE-GLUED):

­

CANYON AT™ (7.1" X 3.8")

REAR TIRES (PRE-GLUED):

­

CANYON AT™ (7.1" X 3.8")

FRONT WHEELS:

­

3.8" GEODE™ (CHROME)

REAR WHEELS:

­

3.8" GEODE™ (CHROME)

SPEED CONTROL TYPE:

­

EVX-2 WITH LOW VOLTAGE DETECTION
FORWARD/REVERSE/BRAKE

MOTOR (ELECTRIC):

­

TITAN® 775, HIGH-TORQUE
FAN COOLED (10-TURN)

TRANSMISSION:

­

HIGH-LOW TWO-SPEED

OVERALL DRIVE RATIO:

­

STOCK, OUT-OF-BOX:
25.34 (HIGH GEAR)
70.18 (LOW GEAR)

DIFFERENTIAL TYPE:

­

BEVEL GEAR, SEALED, LIMITED SLIP

GEAR PITCH:

­

32-PITCH

CHASSIS STRUCTURE/MATERIAL:

­

MOLDED COMPOSITE NYLON TUB

BRAKE TYPE:

­

ELECTRONIC

DRIVE SYSTEM:

­

SHAFT-DRIVEN 4WD

STEERING:

­

BELLCRANK

RADIO SYSTEM:

­

TQI™ 2.4GHZ (4-CHANNEL)

SKILL LEVEL:

2

REQUIRED BATTERIES

­

4 "AA" (TRANSMITTER)
NIMH (X2) OR 2-CELL LIPO (X 2)
