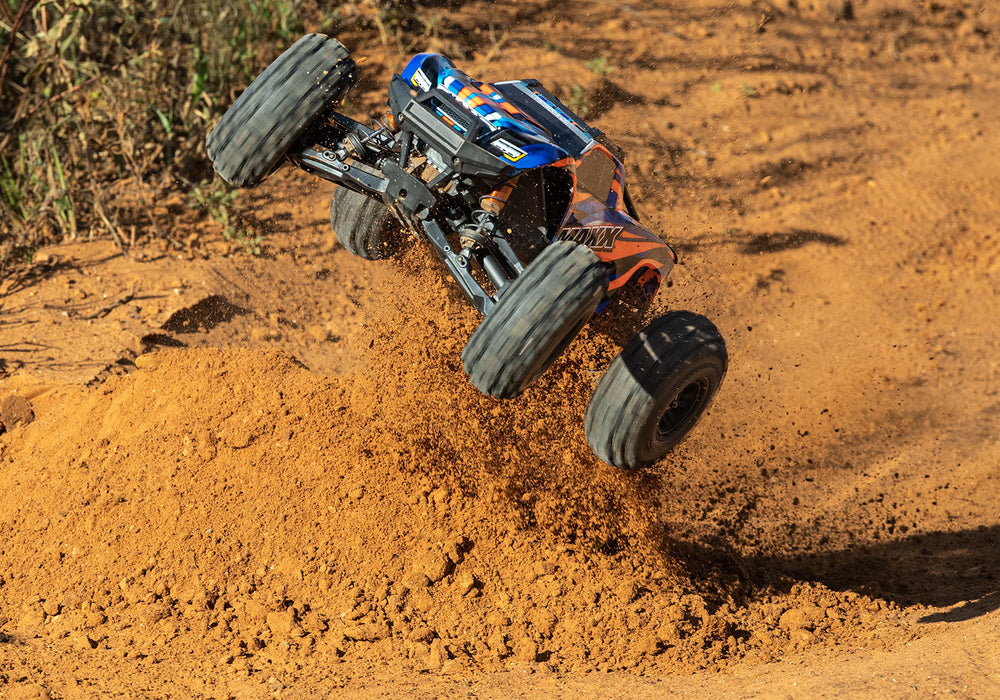

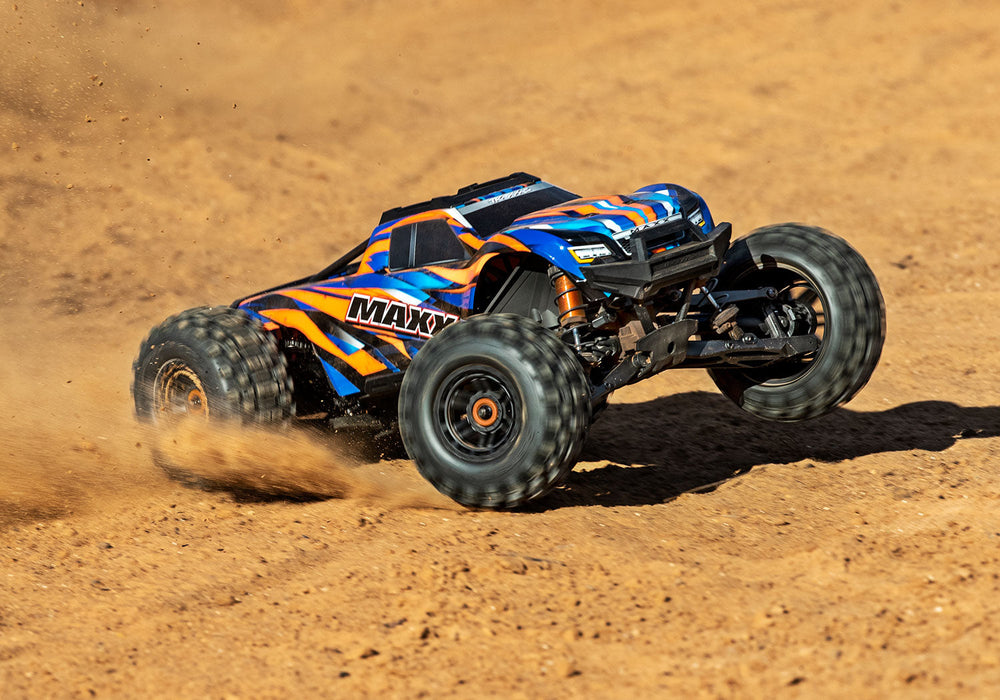

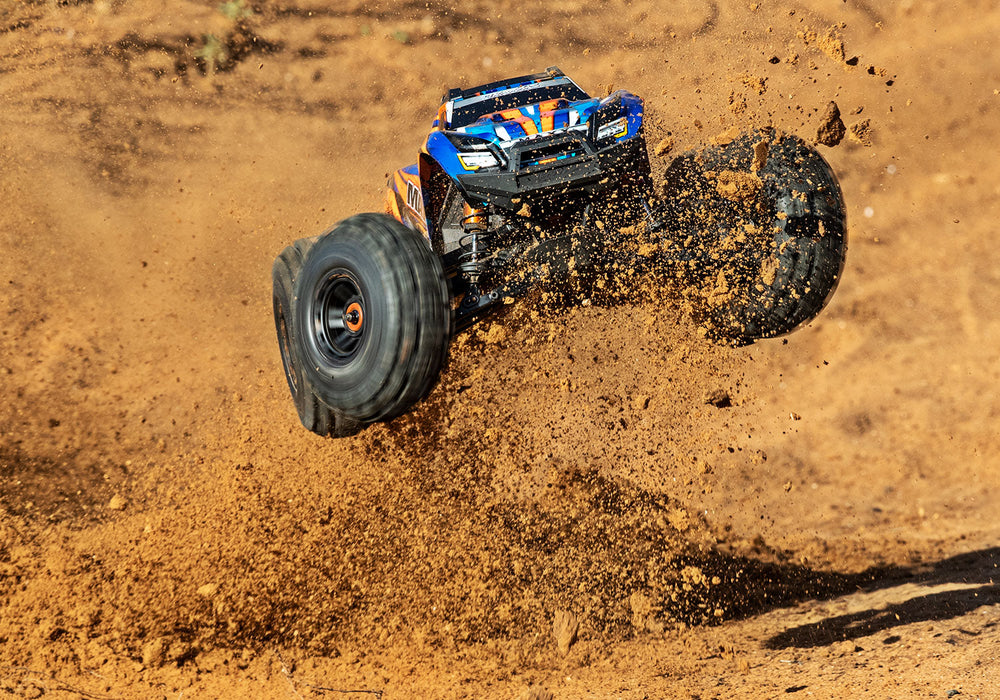

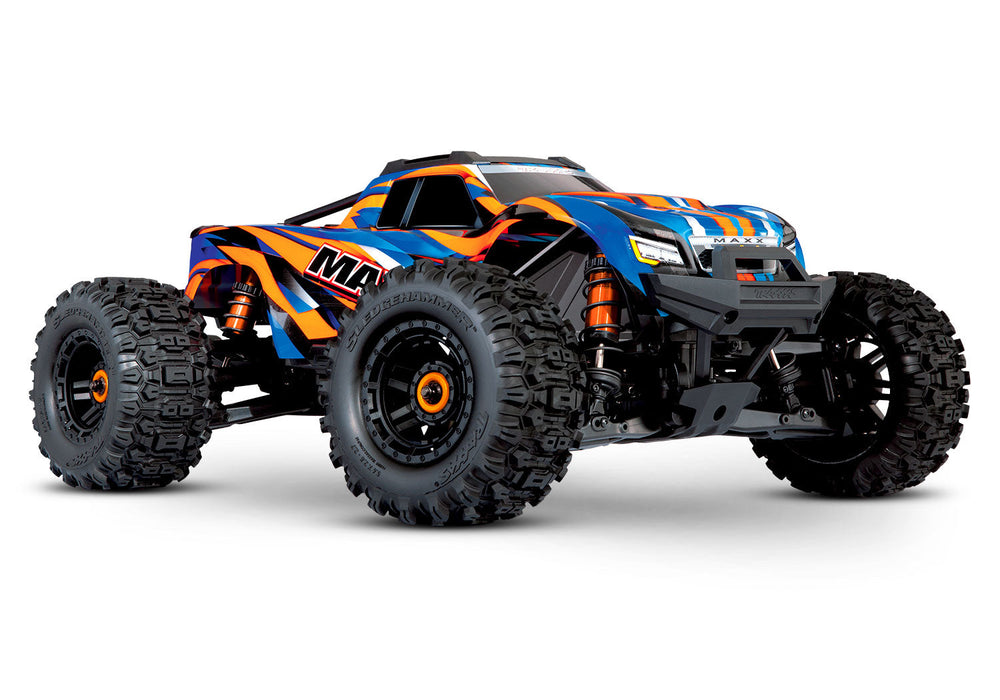

Traxxas Maxx 1/10Scale Monster Truck Orange 89086-4

Name: Traxxas Maxx 1/10Scale Monster Truck Orange 89086-4
Brand: Traxxas
SKU: 04605
Price: 92020.0 INR
Availability: OutOfStock

SKU 04605

Sold out

₹ 92,020.00 - ₹ 92,020.00

₹ 92,020.00

₹ 92,020.00 - ₹ 92,020.00

₹ 92,020.00

Length:	22.50 inches (572mm)
Front Track:	15.95 inches (405mm)
Rear Track:	15.95 inches (405mm)
Ground Clearance (lowest skid):	1.90 inches (49mm)
Ground Clearance (center skid):	2.6 inches (67mm)
Weight:	10.40 lbs (4.7kg)
Height (ride):	9.12 inches (232mm)
Wheelbase:	13.85 inches (352mm)
Shock Length:	4.90 inches (124mm)
Tire Diameter:	5.64 inches (143mm)
Wheel Diameter:	2.8 / 3.6 inches (70 / 92mm)
Speed Control:	Velineon VXL-4s
Motor (electric):	540XL (2400 kV)
Transmission:	Single-Speed
Overall Drive Ratio:	12.37 (23/50 motor pinion and spur gear)

Differential Type:	Sealed, hardened steel bevel, limited slip
Gear Pitch:	Module 1.0
Chassis Structure/Material:	Composite Modular Tub
Brake Type:	Electronic
Drive System:	Shaft-driven 4WD
Steering:	Double-shear bellcrank
Wheels & Tires:	2.8” wheels, pre-glued Sledgehammer^® Tires & foam inserts; 5.6x2.8–3.6
Radio System:	2-Channel, TQi^™ 2.4GHz Transmitter with TSM^® receiver
Servo:	Torque: 285oz-in.
Top Speed:	60+ MPH with 4S LiPo battery and optional gearing (sold separately)
Skill Level:	4
Battery Tray:	186mm L x 48mm W x 43mm H
Required Batteries:	4 “AA” (transmitter)

Type:	2400 kv sensorless brushless
Weight:	317g (11.18oz)
Length:	3.58 inches (91mm)
Diameter:	1.41 inches (36mm)
Connector Type:	Traxxas 6.5mm bullet connectors

Input Voltage:	3S–4S LiPo (11.1V – 16.8V)
Case Size:	2.83 inches (72mm) x 2.32 inches (59mm) x 1.93 inches (49mm)
Weight:	201g (7.09oz)
BEC Voltage:	6.0 V
BEC Current Continuous:	10 A
BEC Current Peak:	20 A
Motor Connectors:	Traxxas 6.5mm bullet connectors
Battery Connectors:	Traxxas High-Current Connectors
Power Wire:	10-gauge Maxx Cable
Ports:	RX input, auxiliary fan, Traxxas accessory port

VXL-4s^™ Waterproof Electronic Speed Control
- 3S–4S LiPo compatible
- Built-in cooling fan
- Real-time telemetry via Traxxas Link^™
- Machined heat sinks
- 10-gauge silicone wire
- Integrated protection circuits
- LED status lights
- Waterproof
Velineon^® 540XL Brushless Motor
- Long format brushless motor
- 4-pole 2400 kV
- 5mm output shaft
- Aluminum heat sink
- Cooling fan
55+ MPH out of the box using single 4S LiPo battery (sold separately)
60+ MPH with optional gearing and single 4S LiPo battery (sold separately)
Traxxas Stability Management^™
- Helps prevents spinouts and loss of control
- Adjusts from off to 100% assistance from the transmitter
TQi^™ 2.4GHz High Output Radio System
- TQi^™ 2.4GHz transmitter
- Traxxas Link^™ enabled
- TQi 2.4GHz 5-channel micro receiver (#6533) with fail-safe security and integrated telemetry ports
- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models—just switch on and drive, “model selection” is not required
- Multi-Function knob
- Adjustable steering and throttle percentage (dual rates)
- Adjustable steering and throttle sensitivity (exponential)
- Adjustable steering and throttle end points
- High 13ms frame rate and near-zero latency for responsive control
- Telemetry-ready 5-channel micro receiver

Clipless Body Mount System
- Quick one-hand installation and removal
- Uses pivoting rear latch mechanism
- Eliminates body posts and clips
- Reinforced for extra protection against tearing
Drivetrain
- Full-time shaft-driven 4-wheel drive
- Torque-Biasing Center Drive^™ absorbs shocks and distributes power
- 17mm keyed wheel hex with 5mm nut
- Sealed, silicone fluid-filled diffs with large module ring and pinion gears
- Heavy-duty Cush Drive^™
- Extreme-duty telescoping driveshafts
- Splined aluminum center driveshaft
Secure Motor Mounting System
- Precise, fixed gear mesh adjustments
- Motor retention separate from gear mesh
- Full-length motor cradle
New Modular Composite Chassis
- Extended modular chassis design interlocks with front and rear bulkheads
- Absorbs and distributes impact energy
- Easy to service and access components
- Driveline is sealed in the chassis to keep out dirt and grit
Easy Battery Access
- Extended battery tray accepts Traxxas’ largest 6700mAh 4-cell LiPo battery
- Battery is protected deep in the chassis
- Battery hold-downs pivot for easy access
- More secure than conventional retention systems
Heavy-Duty Steering Bellcranks and Servo
- Large-scale high-output steering servo
  - 285oz-in of torque
  - 0.18 sec transit speed
- Triangulated mounting system to fully support case
- Heavy-duty double-shear bellcranks

Suspension
- WideMaxx^® double-shear suspension arms
- Engineered to optimize suspension travel and steering angles
- All critical suspension points have double shear strength
- Steel pivot balls
- C-hub and steering block geometry maximizes steering angle
- Fixed, high-strength camber and toe links
- Steel upper and lower tie bars
- Full contact sealed bearings used throughout driveline
GT-Maxx^® Shocks
- Machined aluminum threaded body
- Extra-large bore and capacity
- Large-diameter damper shaft
- Lower seal cartridge with dual X-rings
- Adjustable upper spring retainer
- Plastic shock caps with pivot balls
- Lower spring perches bolted on
Bumpers
- Tough energy absorbing front and rear bumpers
- Lower front and rear skids for impact and abrasion resistance
- Integrated nerf bars for side impact resistance
- Wheelie bar with integrated carry handle
Wheels/Tires
- Tough 2.8” wheels with keyed 17mm hex receptor
- Sledgehammer^® extreme tires for sure-footed traction
- 1-piece foam inserts
- Pre-glued and ready for action
- TSM^™ rated

LiPo Battery
Traxxas recommends a 4-cell 14.8V Power Cell LiPo battery for maximum performance. A 3-cell 11.1V LiPo battery will operate the vehicle with reduced performance. NiMH batteries are not supported.
LiPo Balance Charger with iD^™
Traxxas EZ-Peak Live 4s-capable charger is recommended for easy and fast charging performance (model #2971).
AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
