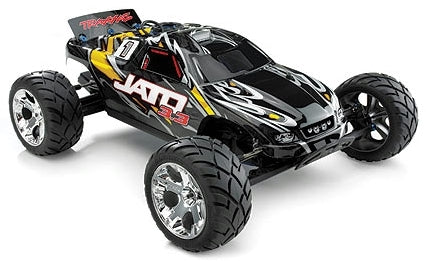

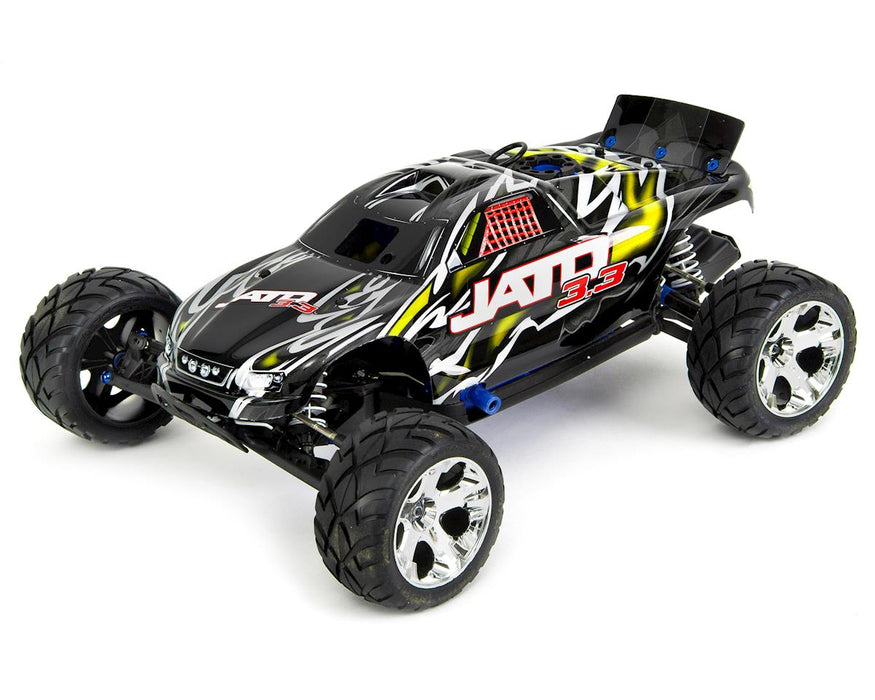

Traxxas Jato 3.3 1/10Scale 2Wd Truck Yellow 55077-1

LENGTH

­

16.53 INCHES (420 MM)

FRONT TRACK

­

12.87 INCHES (327 MM)

REAR TRACK

­

13.00 INCHES (330 MM)

WEIGHT (NO FUEL)

­

83.03 OUNCES (2.35 KG) (W/4 AA IN REAR + WHEELIE BAR)

HEIGHT (OVERALL)

­

5.70 INCHES (145 MM)

WHEELBASE

­

11.22 INCHES LONG (285 MM)
11.14 INCHES SHORT (283 MM)

WHEEL DIAMETER

­

2.85 INCHES (72.4 MM)

TIRE DIAMETER

­

4.13 INCHES (105 MM)

FRONT TIRES

­

ANACONDA® 4.1 INCHES (105 MM)

REAR TIRES

­

ANACONDA® 4.1 INCHES (105 MM)

FRONT WHEELS

­

2.8" ALL-STAR™ MIRROR-CHROME

REAR WHEELS

­

2.8" ALL-STAR™ MIRROR-CHROME

FRONT SHOCK LENGTH

­

3.43 INCHES (87 MM), GTR™ ALUMINUM

REAR SHOCK LENGTH

­

3.43 INCHES (87 MM), GTR™ ALUMINUM

GEAR RATIO (1ST GEAR)

­

9.77:1 (TOTAL GEAR REDUCTION)

GEAR RATIO (2ND GEAR)

­

7.29:1 (TOTAL GEAR REDUCTION)

GEAR PITCH

­

32 (0.8 MODULE)

STEERING

­

BELLCRANK W/ INTEGRATED SERVO SAVER

TRANSMISSION

­

AUTO TWO-SPEED

DIFFERENTIAL TYPE

­

HARDENED-STEEL BEVEL GEAR, SEALED

DRIVE SYSTEM

­

SHAFT-DRIVEN 2WD

CHASSIS TYPE

­

3 MM PLATE, 6061-T6 ALUMINUM

RADIO SYSTEM:

­

TQI™ 2.4GHZ (2-CHANNEL) WITH TRAXXAS STABILITY MANAGEMENT® AND TRAXXAS LINK WIRELESS MODULE

TELEMETRY:

­

EQUIPPED WITH SPEED, RPM,
BATTERY VOLTAGE, AND ENGINE TEMPERATURE

CHARGER:

­

TRAXXAS 2-AMP DC PEAK DETECTING FAST CHARGER

ENGINE (FUEL-POWERED):

­

TRX® 3.3 RACING ENGINE WITH EZ-START®

BRAKE TYPE:

­

SEMI-METALLIC DISC WITH STEEL PADS

FUEL TANK CAPACITY:

­

75 CC

TOP SPEED:

­

65+MPH

SKILL LEVEL:

­

5
