Traxxas E-Revo Vxl 2.0 4Wd Moster Truck Orange Tsm Tqi 2.4Ghz #86086-4

TRAXXAS E-REVO VXL 2.0 4WD MOSTER TRUCK ORANGE TSM TQI 2.4GHZ #86086-4

Specifications:
Length: 23.05 inches (585mm)

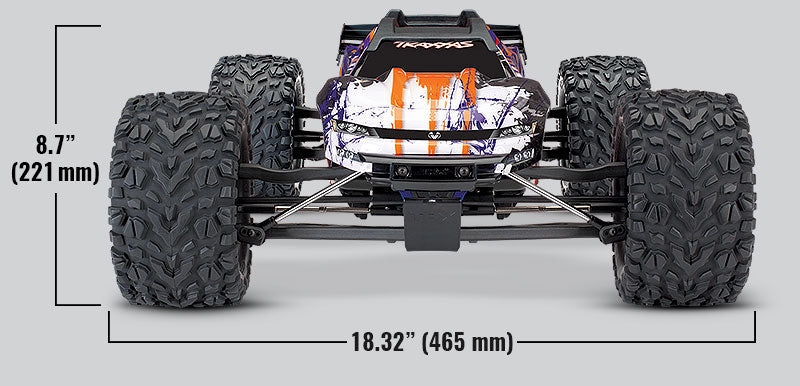

Width: 18.32 inches (465mm)
Ground Clearance: 2.9 inches (73mm)
Weight: 11.2lb (5.08kg)
Height: 8.7 inches (221mm)
Wheelbase: 14.94 inches (380mm)
Front Shock Length: 3.42 inches (87mm)
Rear Shock Length: 3.42 inches (87mm)
Tires (pre-glued): 6.4 x 3.5 inches (162mm x 88mm)
Wheels: 3.8 inches (97mm)
Speed Control: Velineon® VXL-6s
Motor (electric): 2200kV
Transmission: Single speed
Gear Pitch: 1.0 Metric pitch (Mod-1)
Final Drive Ratio: 20.49:1
Differential Type: Sealed 4-gear
Center Differential Type: Sealed 4-gear (20M weight oil)
Chassis Structure / Material: Composite tub
Brake Type: Electronic
Drive System: Shaft driven 4WD
Steering: Bellcrank
Radio System: TQi™ 2-channel transmitter with TRA6533 TSM receiver
Servo: Dual 2075
Top Speed (optional gearing): 70+ mph
Skill Level: 3
Battery Compartment: 156mm x 50mm x 29mm

Includes:

• E-Revo with VXL-6s ESC and 2200kV motor
• Quick Start Guide
• TQi™ 2.4GHz radio system
• High quality maintenance tools

Needed to Complete:

• (2) 2S LiPo or 3S LiPo Battery w/Traxxas iD Connector
• (1) Compatible Battery Charger
• (4) “AA” Batteries (for transmitter)

HOT Top Speed: 80+km/h out of the box, 110km/h+ possible!

• HOT Brutal 6S power and higher top speed with new controller and motor (LiPo-capable/waterproof)
• HOT Reinforced MAXX-SPEC/TM driveshafts
• HOT Larger Talon EXT tires for even more traction and grip
• HOT Newly developed clutch and gear unit
• Reinforced, larger differentials
• Reinforced wishbones
• Body with quick-change function
• Dual servo control, ball bearings
• self-righting function
• reinforced engine mount
• reinforced bulk head
• 5 channel TSM micro receiver
• Ready for use in any weather - whether mud, snow ...
• Waterproof electronics for all-weather operations
• Several modes can be set on the controller - training, race mode, etc.
• Regulator overheating protection
• Active fan integrated in the controller
• Up to 25.2 volts for massive brushless power
• Traxxas TQi 2.4GHz radio system (wireless module #6511 optionally available)
• Traxxas ID high-current plug-in system
• Controller and receiver mounted directly on the chassis
• ProGraphix body, painted and cut
• Fully ball bearing
• Permanent all-wheel drive
• Hardened, PTFE-coated aluminum oil pressure shock absorbers
• Heavy-duty 17mm wheel hubs
• Quick-change battery compartments

POWER. STRENGTH. SPEED.
There is no other RC monster truck like E-Revo. It embodies the highest level of creativity in design and engineering that has unleashed a breathtaking array of new technologies, new innovations and outrageous speeds that are redefining the benchmark for monster truck performance in racing. Now there is a new generation of the E-Revo. This new E-Revo retains all the benefits of the original, groundbreaking, award-winning design, but amplifies them with brute force and intensity to deliver the ultimate 6S monster . Get ready for a whole new level of power, strength and speed.

MAXX-SPEC™ POWERTRAIN
Inspired by its big brother X-Maxx, E-Revo's drive system has evolved to match the incredible 6S performance. Jump higher, ride harder. Your new E-Revo 2.0 comes out of the box ready to attack, ready to go wherever your imagination takes you.

SELF-RIGHTING
The sheer power of the E-Revo can turn you upside down at times. Traxxas' exclusive self-righting system keeps the fun going with minimal disruption. Just push a button on the transmitter and in most cases E-Revo is back on its wheels in just a few seconds. It couldn't be more comfortable.

BRUTAL 6S POWER
Equipped with a reinforced drive train, the E-Revo's VXL-6s drive system now delivers more power than ever before, up to a speed of over 110 km/h . Sophisticated design and advanced microprocessor control make this the most powerful and reliable high-voltage VXL propulsion system ever. Traxxas Extreme Power is the new standard for power RC cars and E-Revo is ready for any challenge.

ADVANCED SUSPENSION
Special suspension design drastically multiplies travel for tremendous agility and incredibly precise damping. Other benefits include built-in progressive spring rate due to rocker geometry and the ability to independently change settings like ride height without affecting damping and spring rate. The inboard shocks are mounted horizontally to lower the center of gravity and are of course protected from bumps and debris. The innovative suspension design is unmatched in terms of travel and performance for all types of rides and terrain.

INNOVATIVE LOW-CG CHASSIS
The highly developed Revo chassis has incredible strengthand is extremely light at the same time. The chassis absorbs and dissipates tremendous impact without flexing. Key components like the batteries are placed as low and close to the centerline as possible to lower the center of gravity (CG) for superior, balanced handling. Key areas have been reinforced for added strength and rigidity such as the battery compartments and bulkhead mounts. New front and rear upper struts are rigid for added durability.

NEW DIFFERENTIALS
4-speed differentials feature massively larger ring gears and pinion gears that use more than twice the steel for extreme durability. The differentials are sealed and filled with heavy oil, giving them the performance feel oflimited slip differentials . Steel drive cups fit over huge 8mm diameter hardened steel output shafts running on oversized sealed bearings.

VXL-6S POWER SYSTEM
The governor assembly is an all-new Traxxas design that includes advanced microprocessor control with sophisticated software for instantaneous response and a wide range of functions. The VXL-6s ESC provides real-time telemetry to the Traxxas Link App (requires optional TQi Wireless Module (6511) - available at Monster Hopups). The massive 2200kV brushless RC motor delivers the torque and power for rapid acceleration and an incredible 110km/h top speed.

BODY ATTACHMENT
A new, heavy-duty, clip-less body latch system has been used, allowing for one-handed body assembly. The locking system includes an internal body cage that heavily reinforces the body for durability. Proven on various Traxxas RC vehicles, this strong and innovative body and cage system combines safety and comfort.

TALON EXT TIRES
The new larger and more all-terrain Talon EXT tires offer superior traction and performance on almost any surface. The aggressive tread design features a tougher rubber compound and thicker sidewalls to better cope with the high speeds of over 100km/hTo finish. The new black 6-spoke rims have been developed for maximum strength and an aggressive look.

REAR WING
Another hallmark of the E-Revo 2.0 is the distinctive rear wing. This is optimized to reduce drag while providing valuable downforce for better road holding at high speeds. A rigid cross brace allows multiple wing adjustments and provides ample support during rollovers. The wing is also great as a wheelie stop when full 6s power is called for!

BATTERY COMPARTMENTS
The innovative chassis design includes protected battery compartments on the sides of the chassis for a clean look. The battery-Quick release doors mount directly to the chassis, eliminating the risk of lost brackets or tethers. The battery compartments have been reinforced to virtually eliminate flexing and provide a more secure battery door latch. At Monster-Hopups you will find a wide range of suitable LiPo batteries and chargers.

TRAXXAS STABILITY MANAGEMENT™ (TSM)
Traxxas Stability Management™ (TSM) works behind the scenes to harness the E-Revo 2.0V XL's extreme brushless power for maximum acceleration and ultra-precise control. Go ahead, go full throttle! TSM never limits the power output, but works with barely noticeable steering interventions and ensures that the E-Revo always goes where you steer it, even if traction is lost due to spinning tires. The intensity of the TSM support can be conveniently adjusted on the hand-held transmitter.

WATERPROOF ELECTRONICS
RC action all year round, regardless of the weather conditions. Thanks to the patented, innovative sealing solutionsfrom Traxxas, water, mud and snow won't slow down the E-Revo. All electronic components are completely waterproof. Drive your RC vehicle wherever and whenever you want - the only limit is your imagination.
