T Motor F60 Pro Iv V2 1950/2550Kv Motor

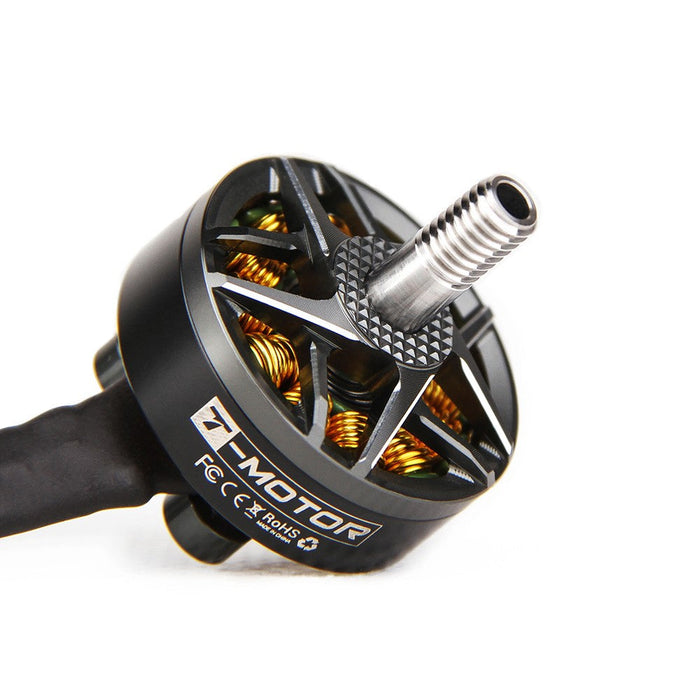

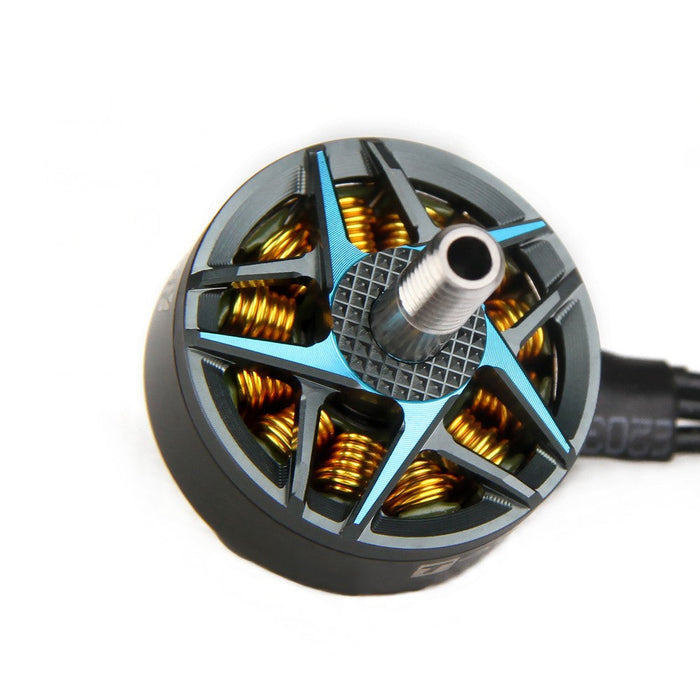

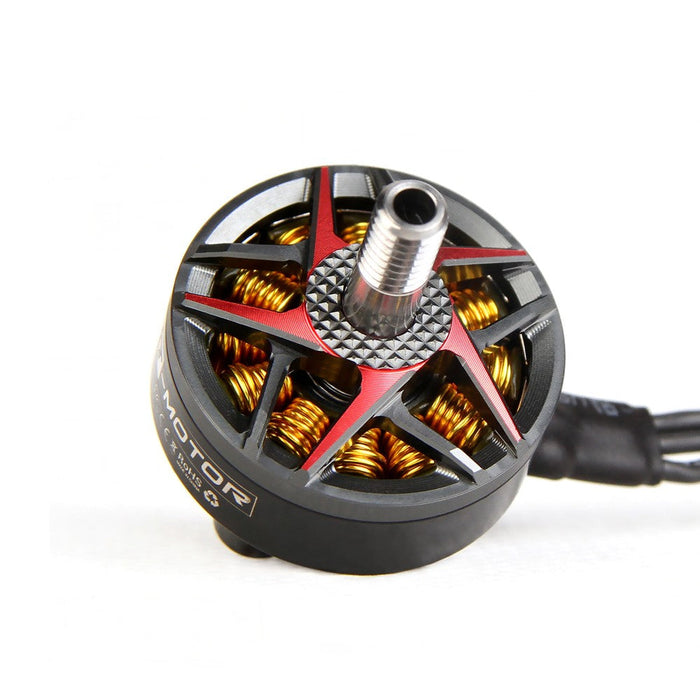

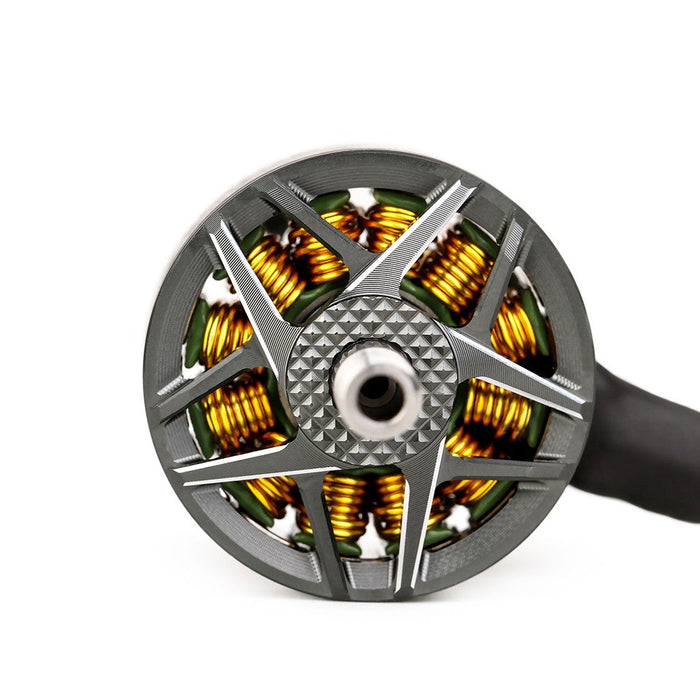

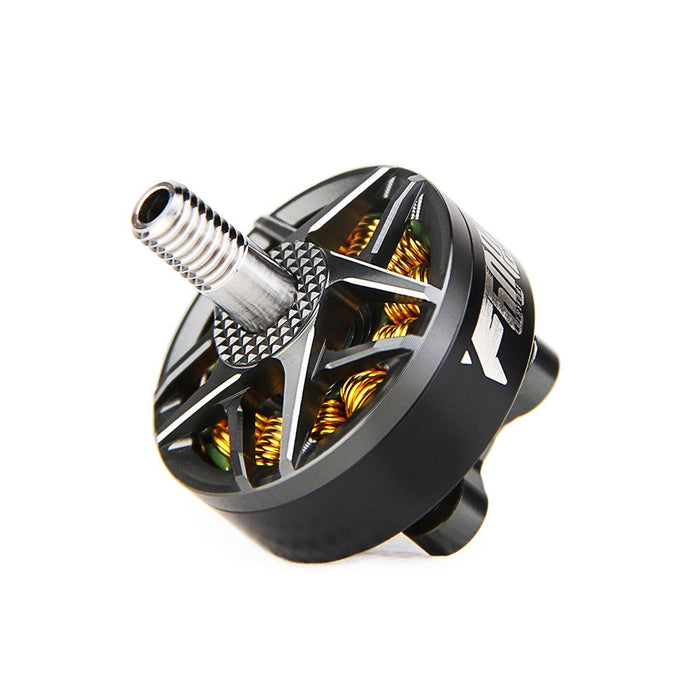

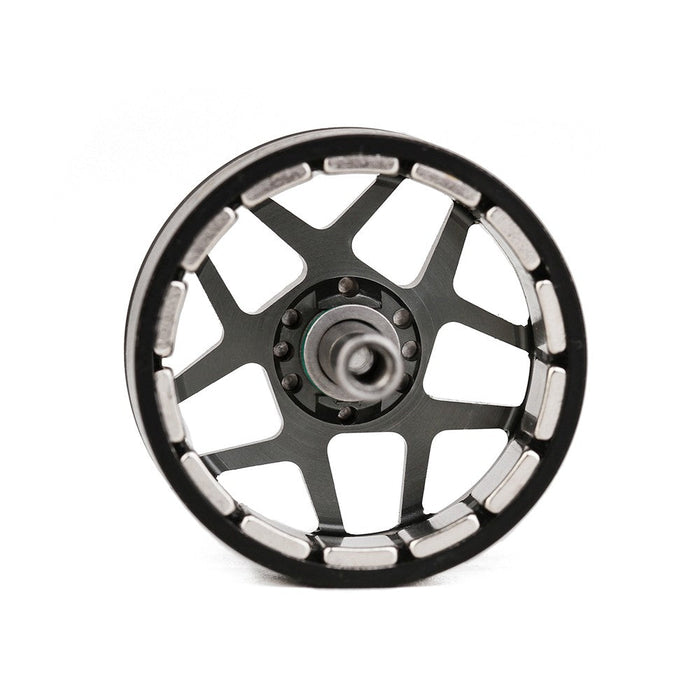

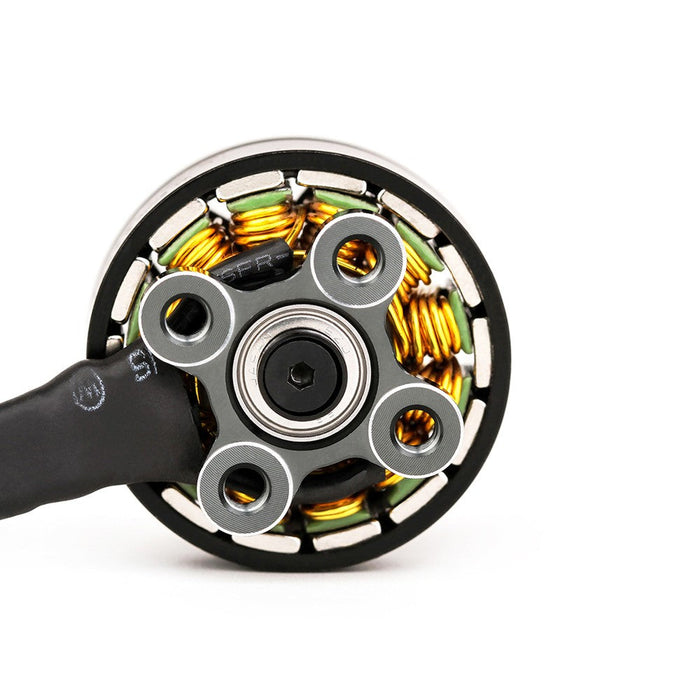

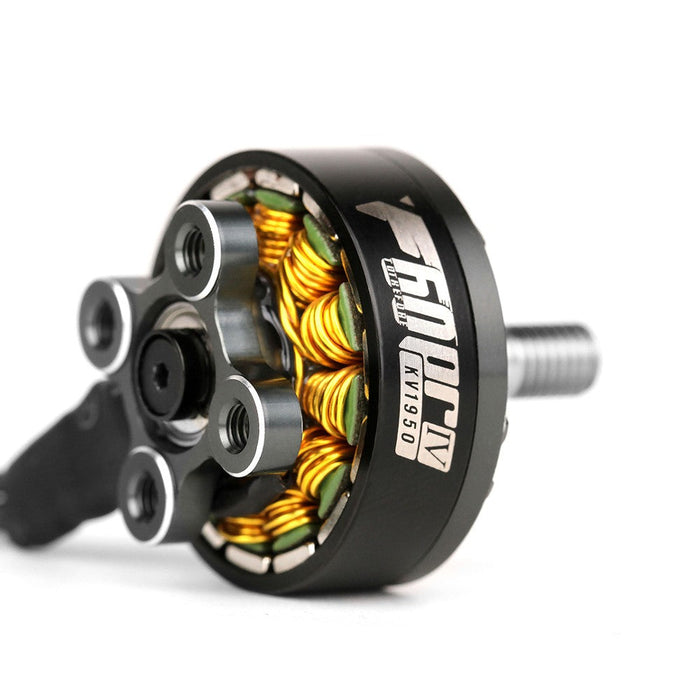

T-Motor F60 PRO IV V2.0 1950KV/2550KV Motor

The F60 Pro IV has been upgraded to V2.0. This motor continues the lineage of great FPV racing motors by T-Motor. The Pro IV provides more thrust and increased durability compared to its predecessor.

The 1950KV is equipped with high-temperature silver-core windings able to withstand up to 88C, after 100% throttle running 1 min, while the 2550KV can withstand 61C after 100% throttle running 1min. The overall stability of the motor has been enhanced.

Each Pro IV V2.0 motor is supplied with high-quality EZO bearings for maximum performance and lifespan. The new bell design looks amazing, while also providing the same non-slip propeller grip like the Pro III.

Features

• EZO bearing
• Antislip design
• Lock screw for easy motor bell removal

Specifications

KV: 1950

• Motor Dimensions:8*32.7mm
• Lead: 20#AWG 150mm
• Shaft Diameter:4mm
• Idle Current:3A
• Power (60s):949W
• Weight (Inc. Cable):4g
• Internal Resistance: 60mΩ
• Configuration: 12N14P
• Rated Voltage (Lipo):4-6S
• Peak Current (60s):42A

KV: 2550

• Motor Dimensions:8*32.7mm
• Lead: 20#AWG 150mm
• Shaft Diameter:4mm
• Idle Current:8A
• Power (60s):602W
• Weight (Inc. Cable):3g
• Internal Resistance: 43mΩ
• Configuration: 12N14P
• Rated Voltage (Lipo):4S
• Peak Current (60s):41A
