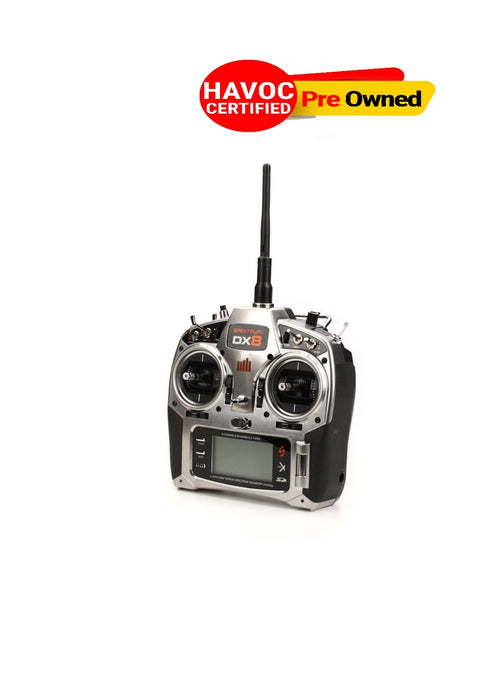

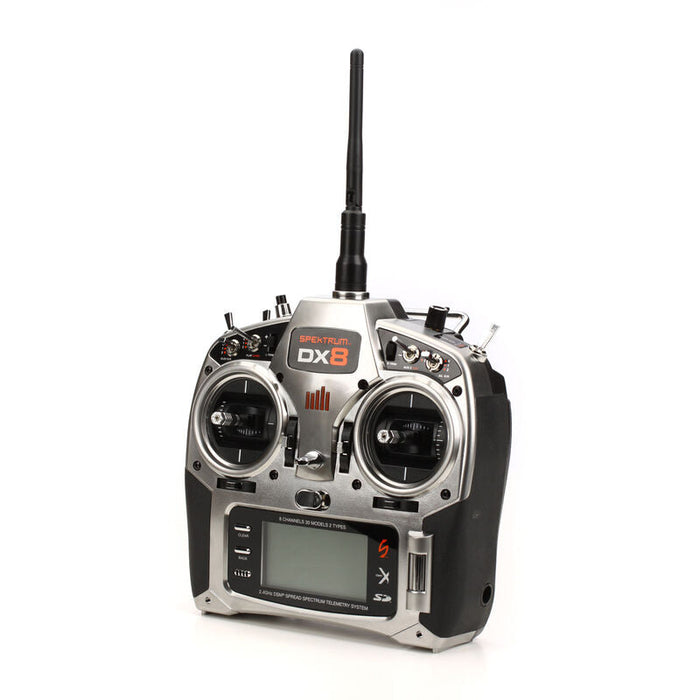

SPEKTRUM TRANSMITTER DX8 WITH RECEIVER - QUALITY PREOWNED

SPEKTRUM TRANSMITTER DX8 WITH RECEIVER

AIRPLANE FUNCTIONS

• 9 wing types: Normal, Dual Aileron, Flaperon, 1 Aileron + 1 Flap, 1 Aileron + 2 Flap, 2 Aileron + 1 Flap, 2 Aileron + 2 Flap, Elevon, Elevon-B
• 5 tail types: Normal, V-Tail, Dual Elevator + 1 Rudder, Dual Rudder + 1 Elevator, Dual Rudder + Dual Elevator
• 3-position flap with elevator compensation
• Adjustable flap speed
• Programmable aileron differential/li>
• 5-point graphic throttle curve
• Aileron rudder mixes
• Elevator/flap mixes
• 6 programmable mixes

HELICOPTER FUNCTIONS

• Governor programming
• Active governor trim
• Active gyro trim
• 5-point graphic throttle and pitch curves
• Swashplate timing
• 6 swashplate types: 1 Servo Normal, 2 Servos 180°, 3 Servos 90°, 3 Servos 120°, 3 Servos 135°, 3 Servos 140°
• Electronic E-ring

SAILPLANE FUNCTIONS

• 4 flight modes
• 4 wing types: 1 Aileron, 2 Aileron, 2 Aileron + 1 Flap, 2 Aileron + 2 Flap
• 3 tail types: Normal, V-Tail A, V-Tail B
• Motor control assignment
• Camber system
• Camber presets
• Flap-to-elevator curve mix
• Aileron-to-flap mix
• Aileron-to-rudder mix
• Elevator-to-flap mix
• 2 free programmable mixes
• Independent aileron trim per flight mode

• Comfortable, no-slip rubber grips
• Adjustable stick length and tension
• Smooth, quad-bearing gimbals
• User-adjustable mode configurations (1, 2, 3 or 4)
• User-assigned switch functions
• Easy-to-read backlit screen
• Intuitive SimpleScroll programming interface

Key Features

• High-speed 11ms frame rate with 2048 resolution
• 30-model internal memory
• Large 128 x 64 backlit screen
• Includes TM1000 full-range telemetry module providing real-time flight log data, receiver voltage, flight pack voltage, RPM and temperature
• Includes AR8000 8-channel high-speed receiver
• Includes 2000mAh NiMH battery pack
• Includes SD card for Spektrum™ Data Interface
• Includes global 12V charger with adapters for international use
• Includes Spektrum neckstrap
• 4 user-selectable control modes (modes 1, 2, 3 and 4)
• Spektrum Data Interface for expanded model memory, model sharing and firmware updates
• Exclusive Spektrum AirWare™ software
• SimpleScroll™ programming interface for easy menu navigation
• Electronic E-ring electronically prevents overdriving the cyclic servos
• 5-point graphic tail curve
• 5-point graphic throttle and pitch curve
• Active gain and governor trim allows in-flight adjustment
• Swashplate timing
• Telemetry alerts (vibe and audible)
• 6 swashplate types
• 3-position flap switch with flap delay and elevator compensation programming
• 8 wing types and 5 tail types
• Language select (English, Italian, French, Spanish or German)
• User-assigned switch function
• Programmable throttle cut
• Refined ergonomics with no-slip comfort grips
• Programmable timer with throttle timer startup
• Quad bearing gimbals
