Smps 12V600Watt Morsun

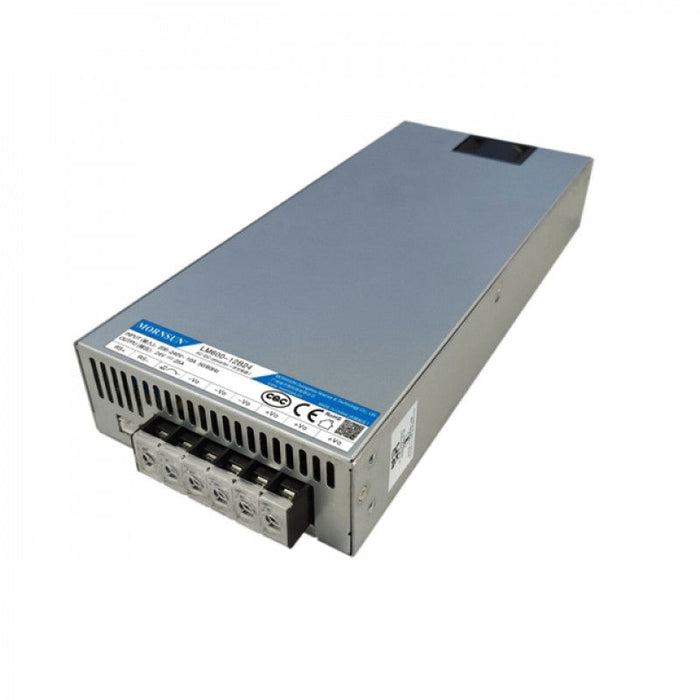

LM600-12B12 Mornsun SMPS - 12V 50A - 600W AC/DC Enclosed Switching Single Output Power Supply
LM600-12B12 series is one of Mornsun’s enclosed AC-DC switching power supply. It features AC input and at the same time accepts DC input voltage, cost-effective, low no load power consumption, high efficiency, high reliability and double or reinforced insulation. These converters offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, IEC/EN60335, GB4943, IEC/EN61558 standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home etc.
Key Specifications:
|
Type |
Enclosed Type Single Output |
|
Output Power |
600W |
|
Series |
LM600-12B |
|
Part Number |
LM600-12B12 |
|
Mechanical Form |
Enclosed |
|
IP Level |
Non-Waterproof |
|
Output Voltage |
12V |
|
Output Current |
50A |
Features
- Input voltage range: 176 - 264VAC or 240 - 370VDC
- Accepts AC or DC input (dual-use of same terminal)
- Ultra low standby power consumption <0.75W @230VAC
- Operating ambient temperature range: -30℃ to +70℃
- LED indicator for power on
- Operating up to 5000m altitude
- Output short circuit, over-current, over-voltage, over-temperature protection
- Built-in DC fan
- Warranty - 3 years
