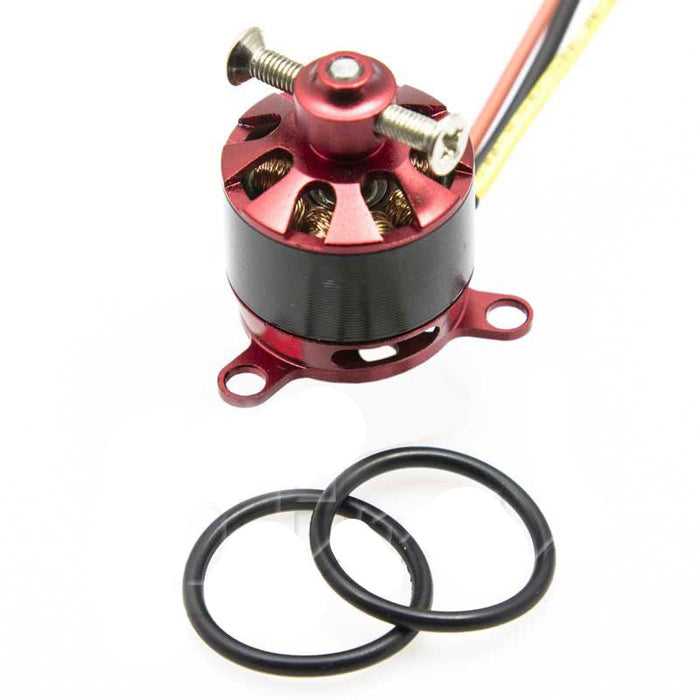

Sky Surfer V4 Brushless Motor(C2822-2140)

Sky Surfer V4 Brushless Motor (C2822-2140)

Specification:
● Stator Diameter: 22.0 mm
● Stator Thickness: 6.0mm
● No. of Stator Arms: 12
● No. of Magnet Poles: 14
● Motor Wind: 9 Turn D
● Motor Kv: 2140 RPM / Volt
● No-Load Current (Io):  0.7 Amps @ 10 volts
● Max Continuous Current: 22 Amps
● Max Continuous Power: 230 Watts
● Weight: 41 Grams(4.092oz)
● Resistance : 69 mΩ
● Outside Diameter: 27.8 mm(1.094 in)
● Shaft Diameter: 4.0 mm(0.157 in)
● Body Length: 3.0 mm(0.118 in)
● Overall Shaft Length: 43 mm(1.686 in)
● Max LiPo Cell: 2-3 S
● Motor Timing: 7°
● Drive Frequency: 8kHz

Package Content:
● 1no : Avionic Skysurfer V4 brushless motor (C2822-2140)
