SafeConnect XT60 Female with 14AWG Silicon Wire 10cm-1Pcs
Description:

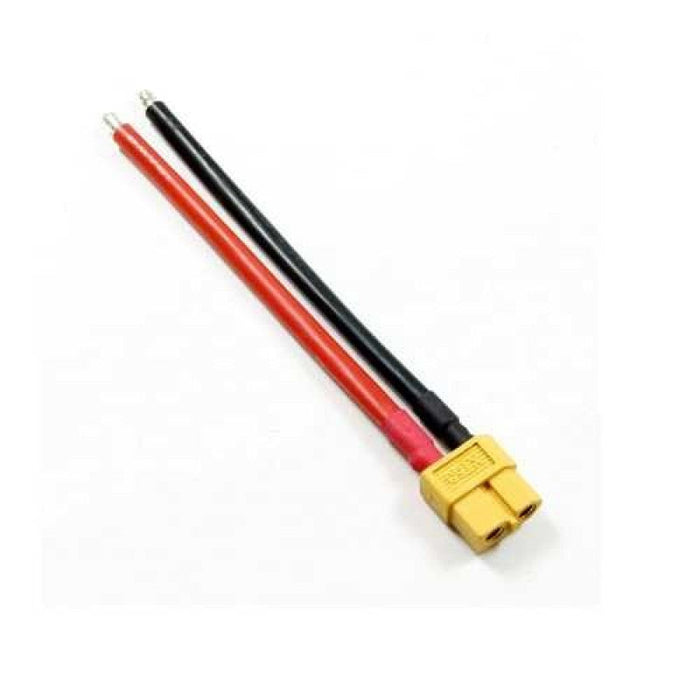

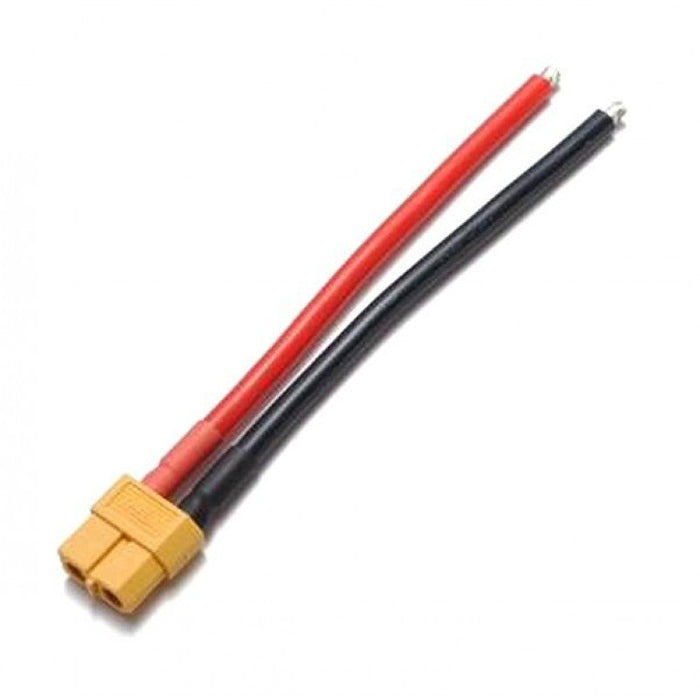

The XT60 Female with 14 AWG Silicon Wire 10cm (1pcs/bag) is useful while connecting your battery and ESC. These are widely used Li-PO battery connectors XT60 Female w/ 12AWG Silicon Wire 10cm (1pcs/bag) makes the connection between the battery and motor easier.

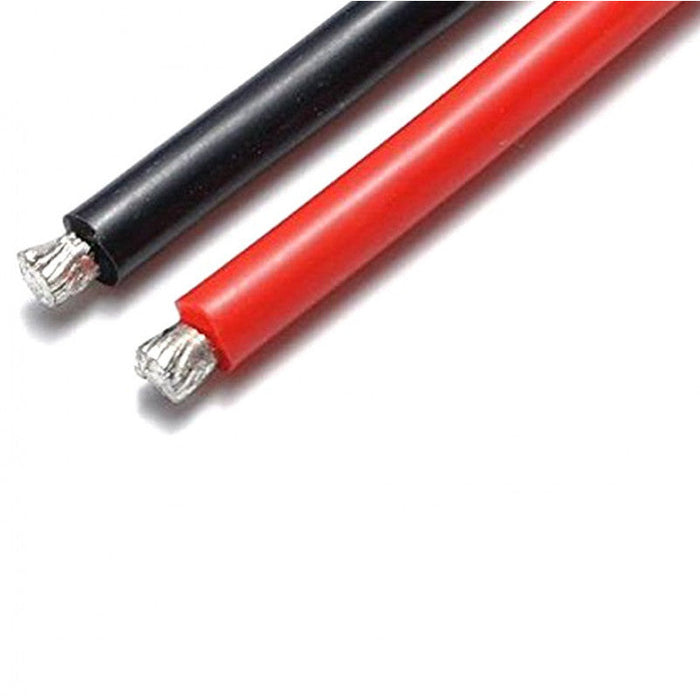

These are heavy duty cables, great for projects that involve bigger motors and controllers, such as our high-power motor drivers and Simple Motor Controllers. The XT60 Female with 14AWG Silicon Wire 10cm (1pcs/bag) is capable of connection with XT60 Male Connector. These connectors are made from high-temp nylon with gold-plated spring pins or sockets molded in. The shape of this generic XT60 prevents reverse polarity, and when plugged in the connection is super-solid.
The XT60 connectors are suitable for high power brushless and brushed ESC and motors which are used in RC helicopters, quadcopter, plane, and cars. They ensure high amp connections.
Note: The connector is available in two different variants (XT60 Female and XT60H-F Female), we will ship it randomly.
Features :
- Connector Type: XT60 Female
- High-Temp Nylon Material of Connector
- High-Quality Connector
- Designed for heavy-duty
- High Power Application
Package Includes :
1 x SafeConnect XT60 Female with 14AWG Silicon Wire 10cm-1Pcs.
Specification:
| Brand |
Amass |
| Gender |
Female |
| Rated Operating Voltage (VDC) |
500 |
| Current Handling Capacity (A) |
60 |
| No. of Contact Points |
2 |
| Connector Type |
XT60 Female |
| Contact Material |
Brass |
| Contact Plating |
Gold flash |
| Metal Connector Size (mm) |
4.5 |
| Operating Temperature Range (°C) |
-20 to 120 |
| Flammability Rating |
UL94V-0 |
| Color |
Connector: Yellow |
| Weight (gm) |
18 |
| Allowed Wire Size (AWG) |
16 ~ 14 |
| Shipment Weight |
0.02 kg |
| Shipment Dimensions |
7 × 6 × 4 cm |
