KYOSHO DODGE CHALLENGER INFERNO GT2 33008B CAR

Kyosho 1/8 Inferno GT2 Challenger Demon Nitro 4WD RTR

This is the Glow Powered, 2.4GHz Radio Controlled, Ready to Run,

1/8 scale 2018 Spec Inferno GT2 Dodge Challenger SRT DEMON

Race Spec On-Road Car.

FEATURES

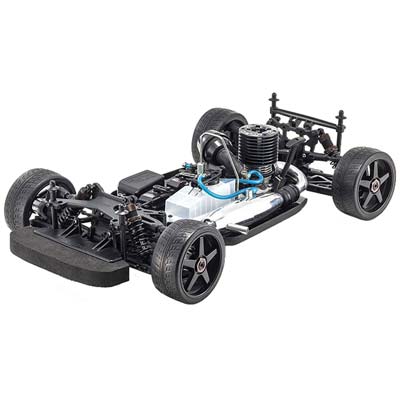

Chassis: Aluminum, with resin chassis stiffener, front center

gravity type radio box for improved stability

Drive: Four wheel shaft drive

Transmission: Two-speed

Differentials: Spiral type ring & pinion gear

Radio: Kyosho Syncro KT-331P FHSS transmitter with jog dials, 15

mode memory, endpoint adjustment, dual-rate and exponential

settings, KR331 receiver

Steering Servo: High torque KS5031-09MW metal-geared servo

Engine: Kyosho KE25 with pull starter, slide valve carburetor, rear

exhaust

Exhaust System: Polished aluminum tuned pipe

Clutch: 3-piece, 1.3" (34mm) small flywheel for sharp throttle

response

Wheels: Five spoke, black in color

Tires: On road 3.8 x 1.6" (97 x 40mm) with foam inserts

Brake: Front and rear independent disc

Fuel Tank: 5.1oz (150cc)

Front Bumper: Foam

Shocks: Oil-filled

Shock Towers: Composite plastic, 0.197" (5mm) thick

Ball Bearings: Full set, 18 on drive train and 2 on clutch bell

Caster: Adjustable, caster/toe-in refers to the angle of the front

suspension when viewed from the side of the car in relation to the

chassis

Camber: Adjustable, camber refers to the angle of the tops of the

tires from vertical when viewed from front or behind vehicle

INCLUDES

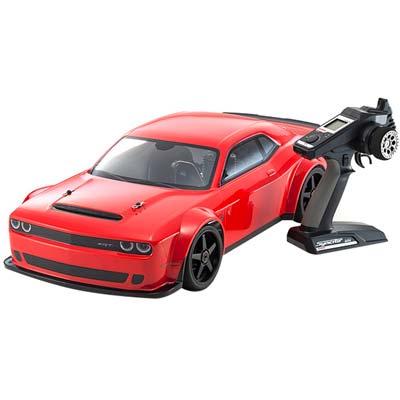

Assembled Dodge Challenger SRT DEMON, w/trimmed & painted Body, KE25

Engine, Tuned Pipe, Radio System, Wrenches and Instruction Manual

REQUIREMENTS

AA Batteries: Eight, four for transmitter, four for receiver

Fuel: Car blend with 15-30% nitro content, 20% required for break-in

Glow starter, track and maintenance equipment

SPECIFICATIONS

Vehicle;

Length: 20.3" (515mm)

Width: 12.2" (310mm)

Height: 5.3" (135mm)

Wheelbase: 14.2" (360mm)

Front Tread: 10.3" (262mm)

Rear Tread: 10.4" (265mm) distance from center of tires side-to-side

Ground Clearance: 0.59" (15mm)

Gear Ratio: 1st 10.14:1, 2nd 7.90:1

Weight: 8.04lbs (3650g)

Body;

Length: 25.4" (646mm)

Width: 11.6" (294mm) measured at center between wheel wells

Height: 6.2" (157mm)
