Radio Master Transmitter Tx16S Max 4In1

RADIO MASTER TRANSMITTER TX16S MAX 4IN1

RadioMaster set out to create the very best radio in its class without compromises with the TX16S MAX. The TX16S Max has the best of everything you could ever fit into radio right from the very start. Super smooth precision Hall sensor gimbals with CNC aluminum facias, built-in USB-C charging port, class-leading ergonomics, standardized internal Multi-Module, improved key layout and menu navigation, external SD port, external UART expansion ports, improved sliders, and much more! Ships ready for Mode 2! The RadioMaster TX16S OpenTX Multi-Protocol 16ch Transmitter is available in stylish colors like carbon fiber, silver, and rose gold!

Specification

• Type: TX16S MAX Radio Controller
• Size: 286.9*128.9*183.8mm
• Weight: 750g (without battery)/820g (with 2 x 18650 batteries installed)
• Voltage: DC7-8.4V
• Battery: 2 x 18650 (tray supplied) or 2S lipo (batteries not included)
• Current: 350mah (NO CRSF)
• Channel: 16ch
• External Micro SD slot: Card Included
• 2 x External UART Expansion Ports
• Touch Panel installed (Requires OpenTX/EdgeTX 2.4 Update)

Features

• STM32F429BIT6 MCU

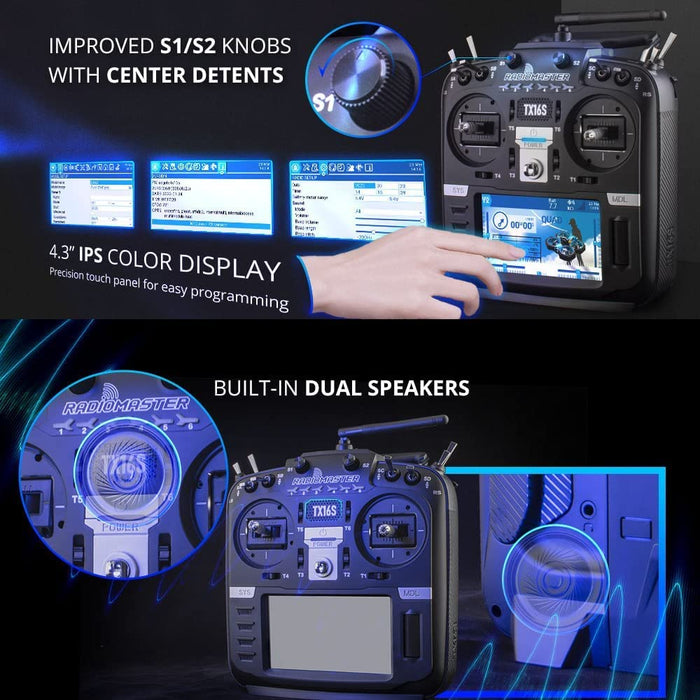

• Industrial grade 4.3 inch IPS 480*272 Screen with touch
• Compatible with OpenTX
• Wheel menu button

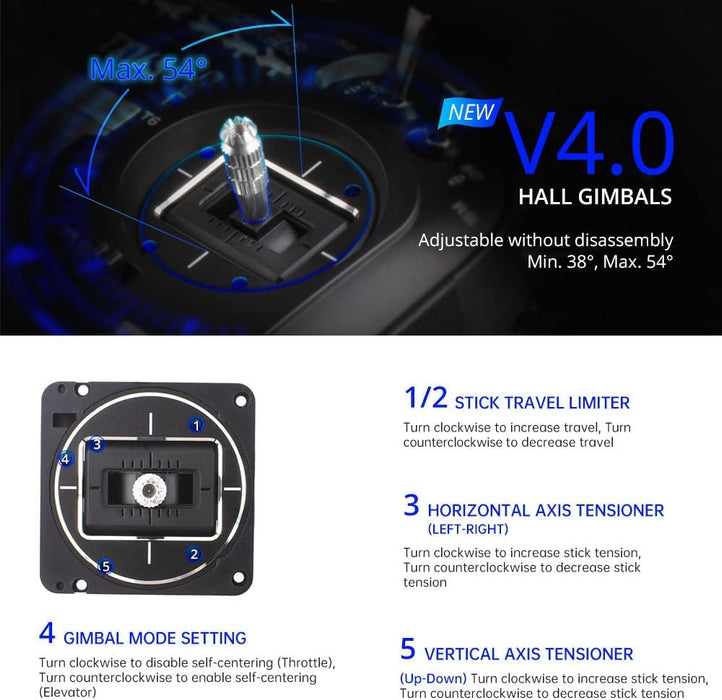

• Full size HALL sensor gimbals with CNC Aluminum Facia.
• Internal Multi-protocol RF System
• Native Full Speed TBS Crossfire support (400K)
• Supports Telemetry (Protocol and Receiver dependent)
• Memory 16M (can be expanded by Micro SD card)
• Voice function
• Vibration reminder function
• Improved JR module slot
• 6-Flight Mode Buttons (Pixhawk, custom functions and more!)
• Three-color LED status display
• USB-C Charging port.
• USB-C Simulator and PC connection port.
• External UART ports to expand the capabilities of your radio.
• CNC option parts and leather grips factory fitted.
• Neck Strap included

Internal Multi-protocol RF

The TX16s internal RF system features the CC2500, NRF24L01, A7105 and CYRF6936 RF Chip modules all integrated on one board. This module most of today’s prominent RF protocols (See RF Chip data below). The RadioMaster internal RF module will support firmware updates directly from the radios Operating system.

Package Includes

• 1 * TX16S MAX Radio Controller
• 1 * 18650 tray
• 1 * USB-C cable
• 1 * Neck Strap
