Pro-Tronik 5A HV 2-12S UBEC

Pro-Tronik 5A HV 2-12S UBEC

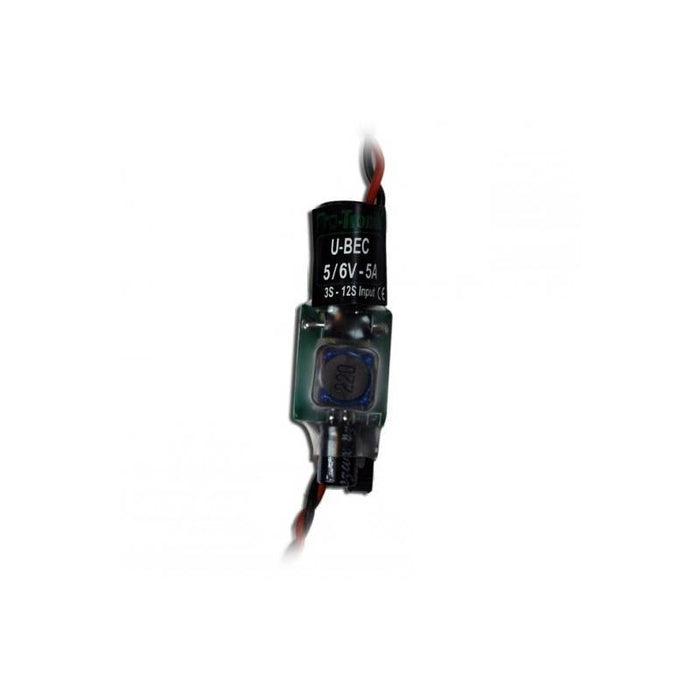

Pro-Tronik 5A HV 2-12S UBEC. Very compact, very powerful, this accessory is the perfect complement to  any Opto Brushless controllers. The UBEC is a new generation accessory that enables to safely feed the reception of a model from the drive battery, regardless of its voltage up to 42v (12s).

Pro-Tronik 5A HV 2-12S UBEC

Pro-Tronik 5A HV 2-12S UBEC. Very compact, very powerful, this accessory is the perfect complement to  any Opto Brushless controllers. The UBEC is a new generation accessory that enables to safely feed the reception of a model from the drive battery, regardless of its voltage up to 42v (12s).

Features

• Dimensions: 55 x 18 x 18 mm
• Weight: 17 g
• Input connectors: Silicon wires 200 mm (0,5 mm²)
• Output connectors: Standard lead/ silicon wires 200 mm (0,5 mm²)
• Technology used: Switching buck converter IFR
• Input voltage: 6 to 42 V (8,5 V mini for 5 A output)
• Batteries: NiCd, NiMH, LiIon, LiPo and LiFe
• No load Amp draw: 0.004A (10V)
• Output voltage: 5 or 6 V +/- 2 % (depending on jumper position)
• Permanent output Amp: 5A
• Voltage stability: Better than 1 % (from 0 to 5 A)
• Temp proctection: Integrated
• Inversed polarity protection: No
• Shorts protection: yes (Auto Protect)
• Efficiency: > 82 % (10 V input, 5 V output @ 2,7 A)
