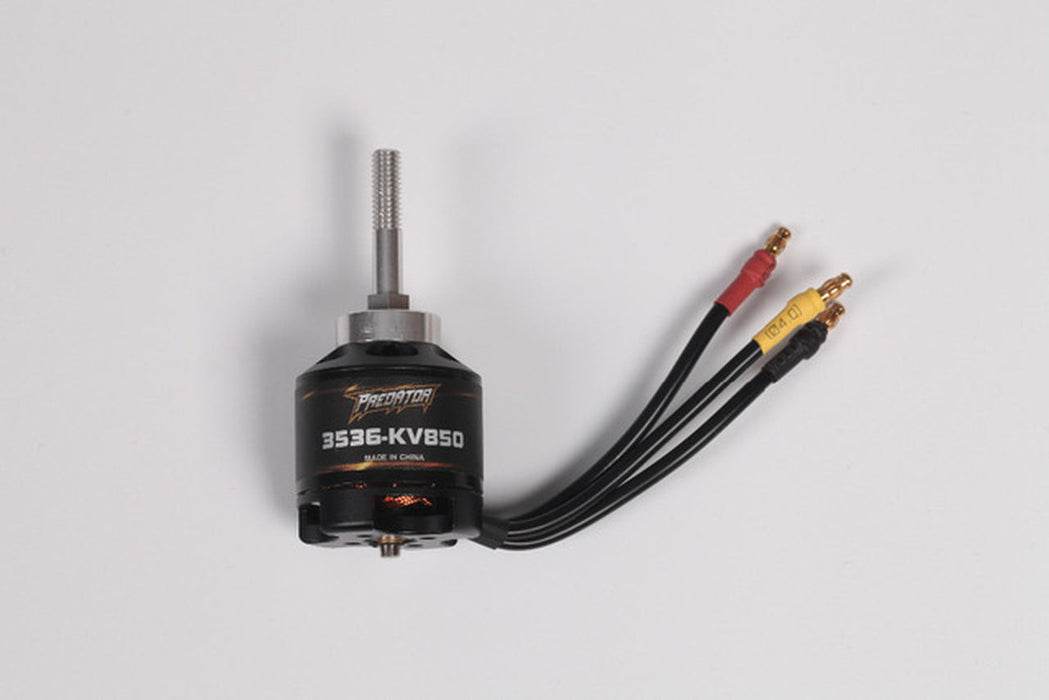

FMS Predator 3536-KV850 Brushless Outrunner Motor

Predator 3536-KV850 Brushless Outrunner Motor

Fms Predator 3536-KV850 Brushless Outrunner Motor

FMS 3536-KV850 Motor - FMMKV850
The following FMS/RocHobby aircraft use this motor as well:

FMS Stearman PT-17
FMS Henschel Hs 123
FMS Piper J3 Cub V2
FMS Sky Trainer 182
FMS Sky Trainer 400
RocHobby Waco
RocHobby Staggerwing

Dimension (mm) ?35*89
Weight (not including connectors) 132g
Voltage (S) 3
Max Current (A) 2.5
Length of Front Shaft (mm) 32
ESC 25-35A
Lamination Thickness (mm) 17MM
Magnet Type 45H
Kv (rpm/v) 850
Max Current (A) 34
Resistance (mh) 0.04
Max Voltage (V) 16V
Power (W) 350W
Shaft A (mm) M6
Length B (mm) 42
Diameter C (mm) 34.7
Can Length D (mm) 22.5
Total Length E (mm) 89

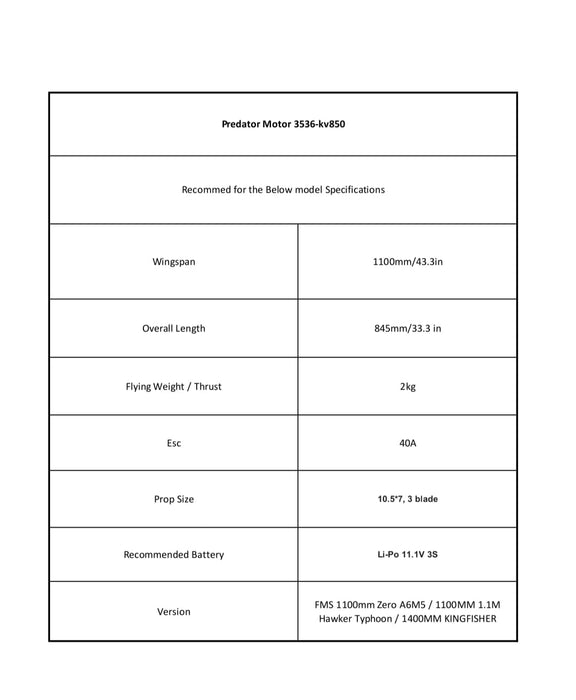

Predator 3536-KV850 MOTOR

Recommend for the below model Specifications

Wingspan: 1100mm/43.3in
Overall Length: 845mm/33.3 in
Flying Weight / thrust: 2kg
Motor Size: 3536-kv850
ESC: 40A
Prop Size: 10.5*7, 3 blade
Recommended Battery: Li-PO 11.1V 3S

VERSION-FMS 1100mm Zero A6M5 / 1100MM 1.1M Hawker Typhoon / 1400MM KINGFISHER
