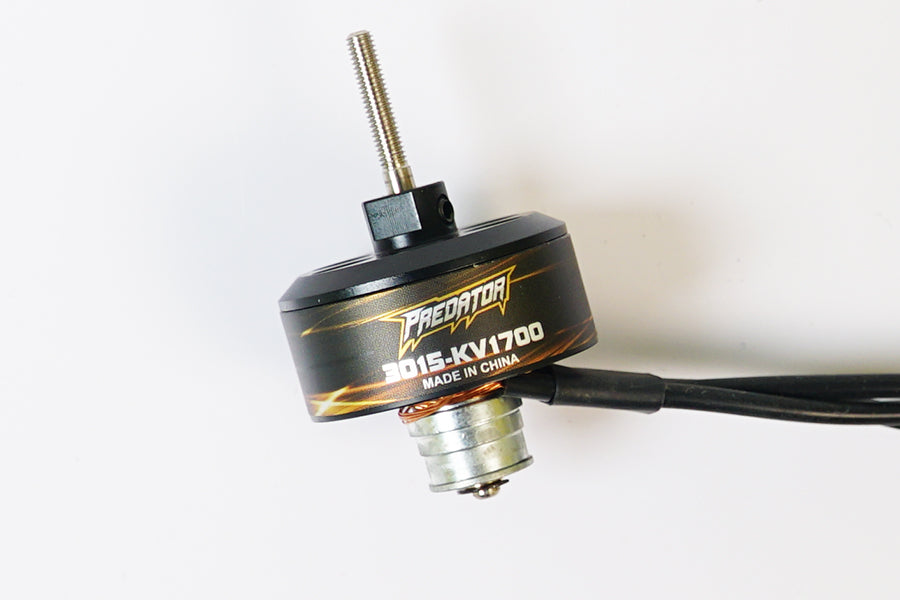

Predator 3015-KV1700 Brushless Outrunner Motor

Product description

This is the new black Predator motor, with the same function and spec as the old gold PAEP motor.

Dimension (mm) :Ф30x51
Weight:(not including connectors): 55g
Voltage (S): 2
Max Current (A): 1.0A
Length of Front Shaft (mm): M3*17.5
ESC:10-30A
Lamination Thickness (mm):8mm
Magnet Type: 38H
Kv (rpm/v): 1700
Max Current (A): 20
Resistance (mh):0.072
Max Voltage (V) :13V
Power (W): 200W
Can Length (mm): 11.5
Total Length (mm):51
Items: For FMS 800mm F4U V2 / T-28 V2 / 1500mm Moa / Let 13

 NOTE:BLACK PLATE NOT INCLUDED

Predator 3015-KV1700 MOTOR

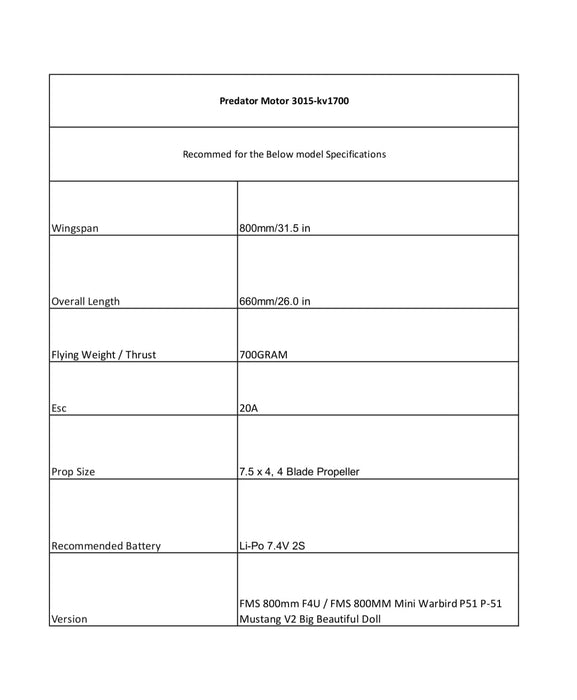

Recommend for the below model Specifications

Wingspan: 800mm/31.5 in
Overall Length: 660mm/26.0 in
Flying Weight / thrust : Around 700g
Motor Size:3015 KV1700
ESC: 20A
Prop Size: 7.5 x 4, 4 Blade Propeller With Spinner
Recommended Battery: Li-Po 7.4V 2S

VERSION-FMS 800MM F4U Corsair / FMSRC 800MM Mini Warbird P51 P-51 Mustang V2 Big Beautiful Doll
