Holybro Original Pixhawk PX4 Flight Controller (without GPS)
SKU 02364
Sold out
Original price
₹ 26,410.00
-
Original price
₹ 26,410.00
Original price
₹ 26,410.00
₹ 26,410.00
-
₹ 26,410.00
Current price
₹ 26,410.00
Holybro Original Pixhawk PX4 Flight Controller (without GPS)
Spec
Main FMU Processor: STM32F76 (32 bit ARM® Cortex® M7, 216 MHz Processor running NuttX RTOS,
more computing power and 2X the RAM than previous versions)
Abundant connectivity options for additional peripherals (UART, I2C, CAN)
Redundant power supply inputs and automatic failover
External safety button for easy motor activation
New sensors with higher temperature stability
Multicolor LED indicator
Integrated vibrations isolation
High-power, multi-tone piezo audio indicator
microSD card for long-time high-rate logging
16 PWM outputs
Increased ease-of-use: pre-installed with most recent PX4 (v1.9.2)
Electrical Data
Voltage Ratings:
Power module output: 4.9~5.5V
Max input voltage: 6V
Max current sensing: 120A
USB Power Input: 4.75~5.25V
Servo Rail Input: 0~36V
Mechanical Data
Dimensions: 44x84x12mm
Weight: 33.3g

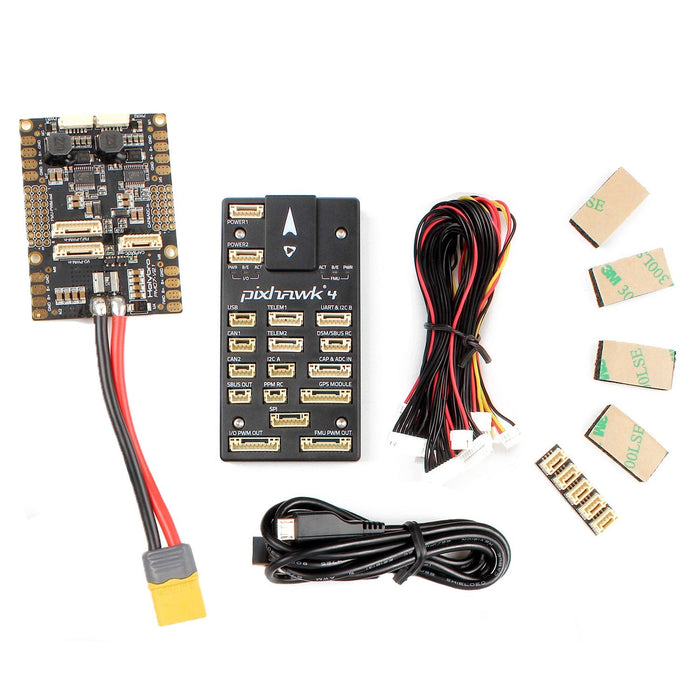

Package Includes:
1 x Pixhawk4 (Plastic Case)

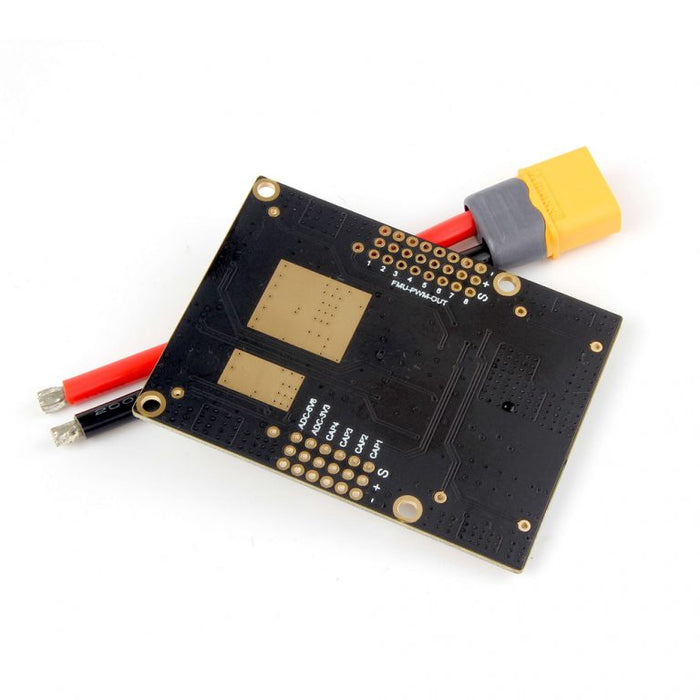

1 x Pixhawk4 PM07 Power Management Board
1 x I2C splitter Board
1 x 6 to 6 pin cable (power)
1 x 4 to 4 pin cable (CAN)
1 x 6 to 4 pin cable (Data)
1 x 10 to 10 pin cable (PWM)
1 x 8 to 8 pin cable(AUX)
1 x PPM/SBUS out cable
1 x XSR receiver cable
1 x DSMX receiver cable
1 x SBUS receiver cable
1 x USB cable
1 x Foam Set
1 x Pixhawk4 Quick Start Guide
