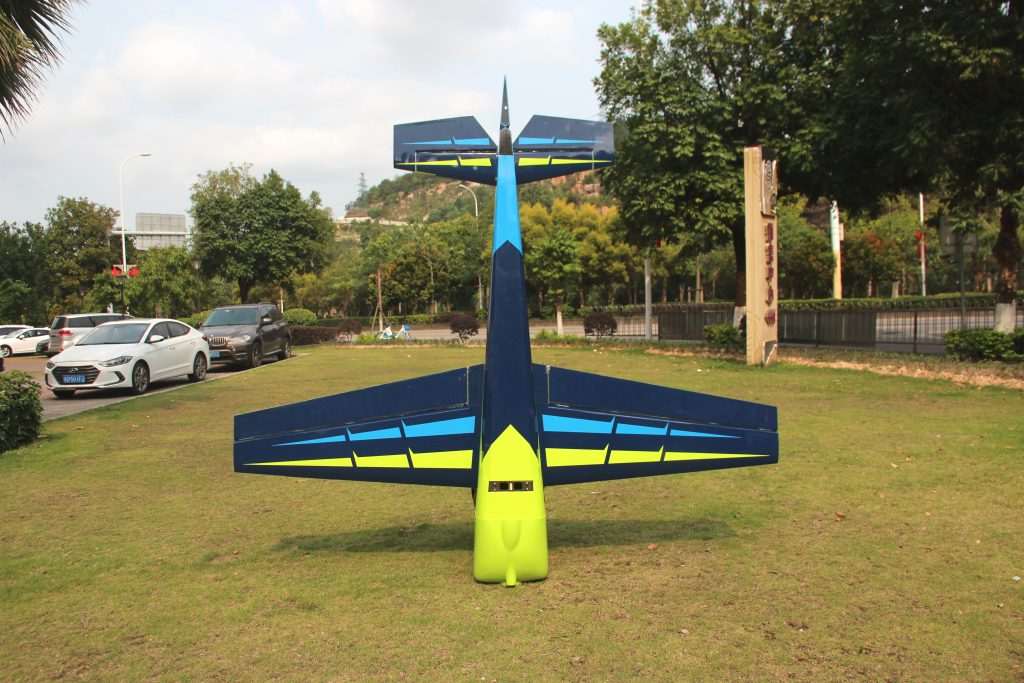

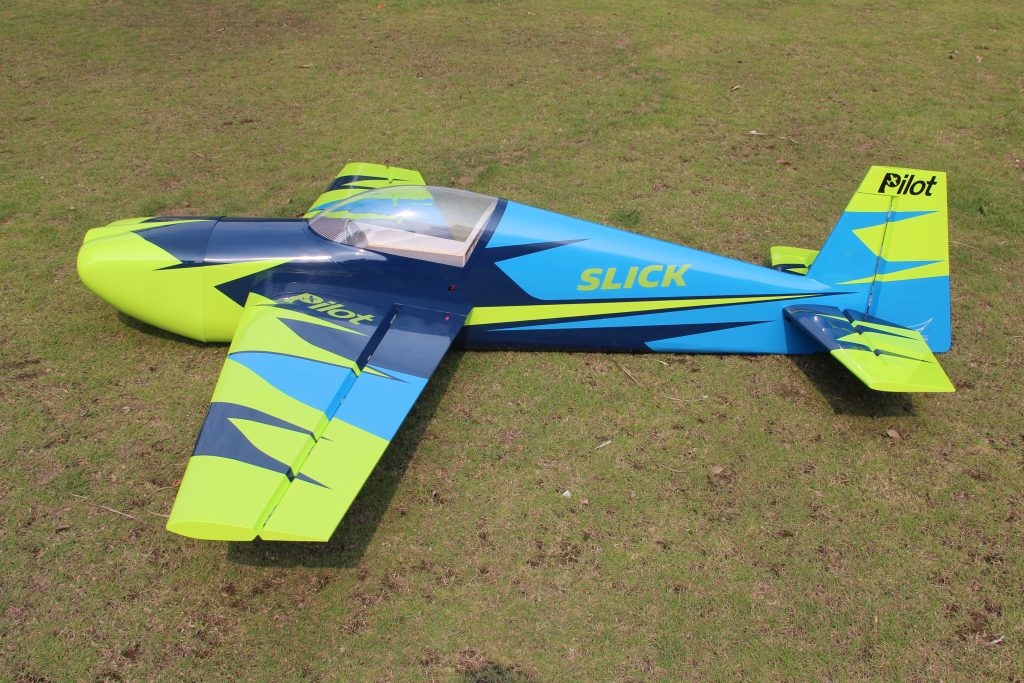

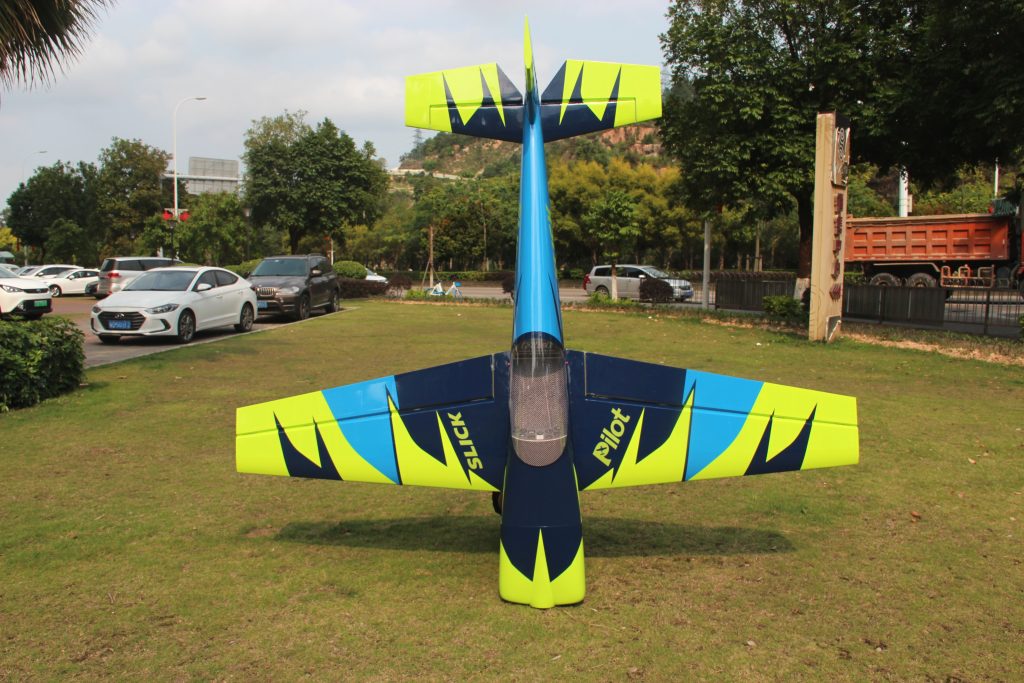

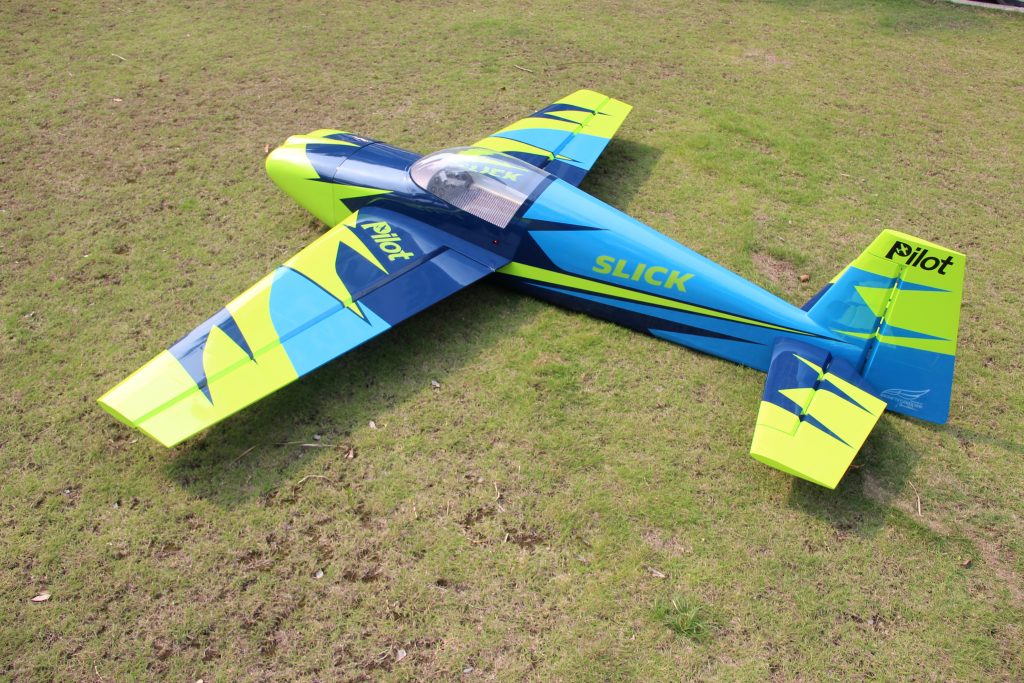

Pilot Rc Slick 103" Scheme No 02

*****BACK ORDER BOOKING ONLY

*****TENTATIVE DATE OF ARRIVAL : 20^TH APRIL 2022 (+/- 15days)

Slick – 103″ (2.63m)

Colour scheme Slick 02: Green and blue

References: Oracover 28-042, 21-053, 21-019 / Ultracote (royal green), HANU875, HANU905

SPECIFICATIONS:

FEATURES:

NEW! Hybrid construction from wood and composite materials for specially reinforced fuselage and wings.

NEW! Patented quick assembly system for wings, stabilizer and SFG

NEW! Patented quick assembly system for canopy.

Genuine German Oracover (Ultracote) covering

Highly prefabricated, experienced builders can have air ready in under a day

Pre-installed hinges (glued and pinned)

Internally mounted cowling – so no visible external screws exposed (two exposed screws underneath for easy mounting)

Removable wings and stabs

Laser engraved motor mounting position

Easy canister installation due to open construction

Pull push system for Rudder servo

INCLUDED HARDWARE:

Complete air frame with all basic accessories (such as carbon fibre main undercarriage, tail-gear assembly and wing-tubes as well as fibreglass control horns and wheel pants)

Pre-installed hinges and pre-mounted canopy

Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve

Wheels, axels and wheel pants

Pre-prepared pull-pull wires and pushrods with ball links

Matching carbon spinner

REQUIRED HARDWARE:

Motor: 80-120cc or equivalent electric

Servos: 7-8 high torque (minimum 20kg) plus throttle // Uses x2 per aileron, x1 per elevator and x1 or x2 on rudder

Also requires all the usual accessories such as transmitter, receiver, propeller, batteries, powerbox, extension leads and possibly other small accessories.

 EXTENSION WIRE LENGTHS:

Throttle:35cm

Each aileron: 25cm + 75cm

(nearest servo and furthest servo – to reach receiver direct)

Each elevator: 150cm

Rudder: 130cm

(when using direct – if installing pull pull, no required extension)

CENTER OF GRAVITY:

212mm

Measured back from leading edge of the wing at the fuselage.

You will find a laser engraved C.G. emblem on the inside of the fuselage, located close to the wing tube, which also shows the exact location for Center of Gravity.
