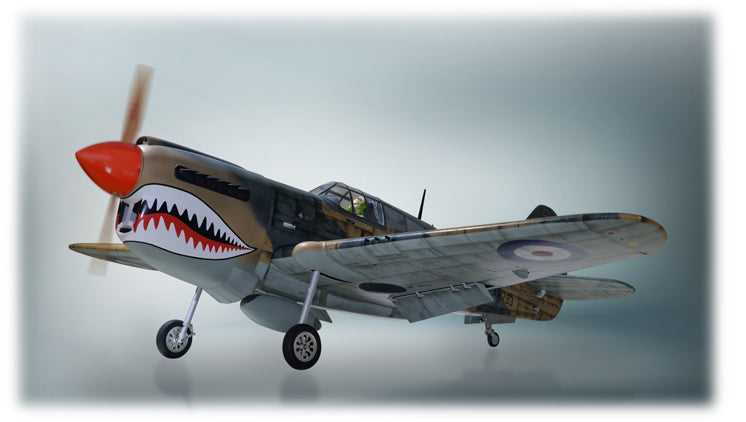

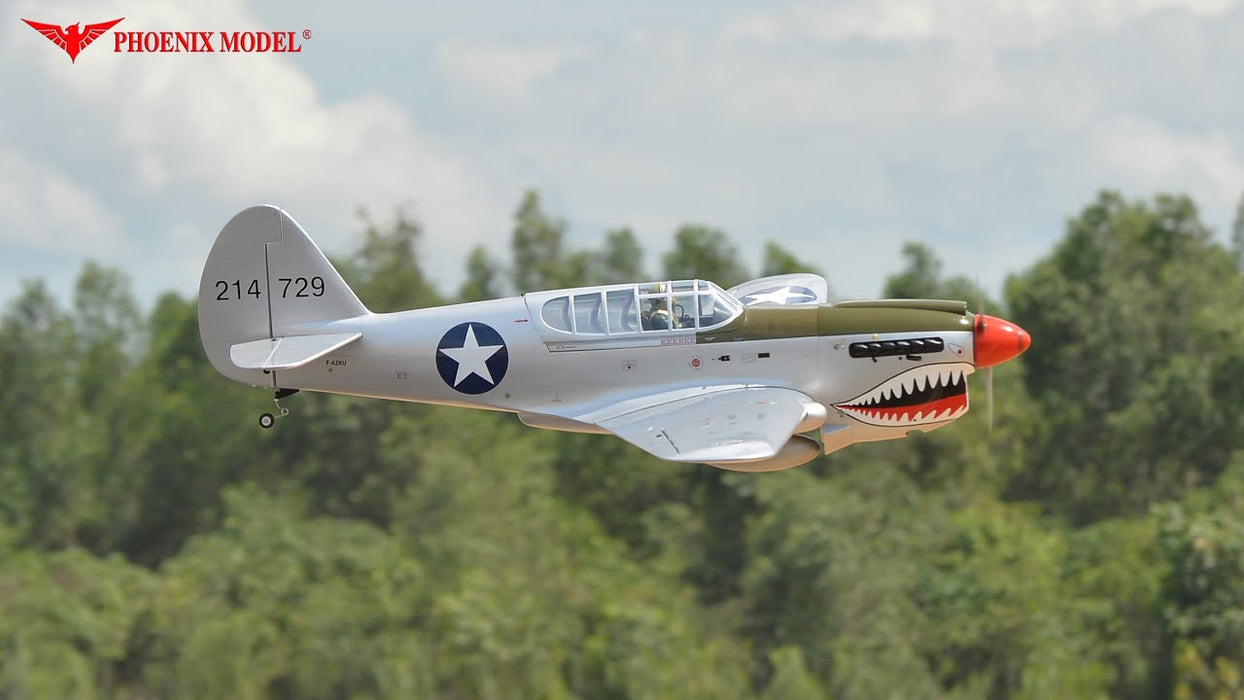

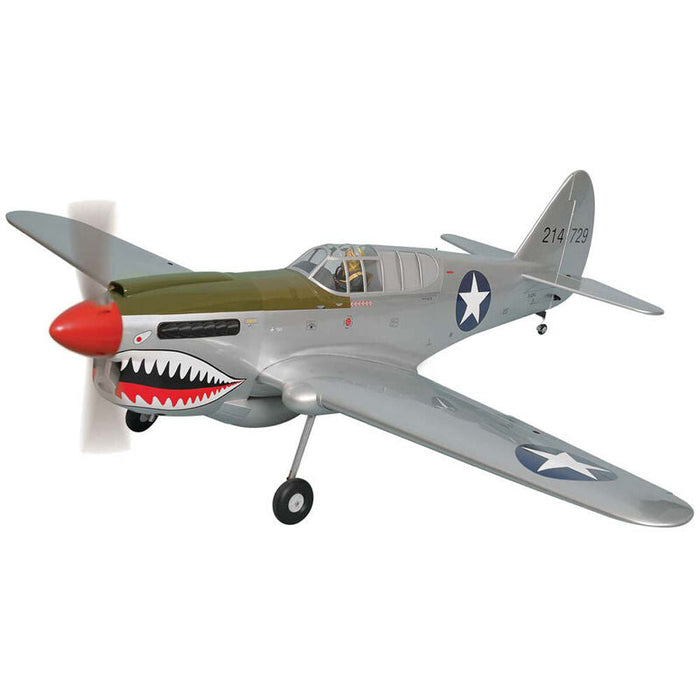

Phoenix Model P-40 Warhawk nitro plane RTF

Phoenix Model P-40 Warhawk nitro plane RTF

The P-40 Warhawk was an American single-engine, single-seat, all-metal fighter and ground attack aircraft that first flew in 1938. The P-40 design was a modification of the previous Curtiss P-36 which reduced development time and enabled a rapid entry into production and operational service. The Warhawk was used by most Allied powers during World War II, and remained in front line service until the end of the war. This ARF version assembles quickly and delivers exquisite results!

This is the Radio Controlled, Gasoline or Glow Powered,
30cc/EP scale 1:4 3/4 Almost Ready to Fly P-40 War hawk Airplane.
For Intermediate Level Pilots.

FEATURES:
Construction: Laser cut balsa and plywood
Wing: Two piece
Aileron and Flap Control: Dual servo
Covering: Oracover heat shrink covering
Cowl: Painted fiberglass
Landing Gear: Air retracts with CNC machined suspension metal struts
tail gear, prebent wire
Spinner: 4.7" (120mm) diameter red plastic
Fuel Tank: Approximately 16oz (473cc)
Motor Mount: Three plywood plates with aluminum standoffs
Engine Mount: Plywood with aluminum standoffs

ITEMS INCLUDES:
OS 4 STROKE ENGINE FS200 WITH MUFFLER-QUALITY PRE OWNED

FUTABA SERVO S-U300-9NO

OS GLOW PLUG NO.8-1NO

MASTER SCREW PROPELLER 18X6 -1NO

7.4V 2500MAH 18650 BATTERY-1NO

FUTABA RECEIVER R3008SB-1NO

ALL HARDWARE ITEMS

CONNECTORS

IEMS EXCLUDED:

1. FUTABA TRANSMITTER T8J https://havochobby.in/products/futaba-t8j-8-channel-1?_pos=2&_sid=6babd3592&_ss=r
   2.FUEL https://havochobby.in/products/nitro-fuel-air5-vp-power-master-per-gallon?_pos=1&_sid=4b0843ac3&_ss=r
   3.GLOW STARTER https://havochobby.in/products/anderson-glow-starter-82mm-410242?_pos=1&_sid=796aae2b4&_ss=r

SPECIFICATIONS:
Wingspan: 80.3" (2040mm)
Length: 70.7" (1797mm)
Flying Weight: 14.5 - 16.5lbs (6600 - 7500g)
Wing Area: 1176 sq in (76 sq dm)
Wing Loading: 31.13 oz/sq ft (95g/sq dm)
Wing Type: Naca airfoils
Servo Mount: 0.83 x 1.6" (21 x 42mm)
Center of Gravity (CG): 4.7" (120mm) back from leading edge of wing
measured at the fuselage
Control Throws: Low Rate High Rate
Ailerons, up/down: 0.51" (13mm) 10% expo 0.59" (15mm) 10% expo
Elevator, up/down: 0.51" (13mm) 12% expo 0.59" (15mm) 12% expo
Rudder, right/left: 1.2" (30mm) 15% expo 1.8" (45mm) 15% expo
Flap, Mid 0.59" (15mm) down, Landing 0.98" (25mm) down
