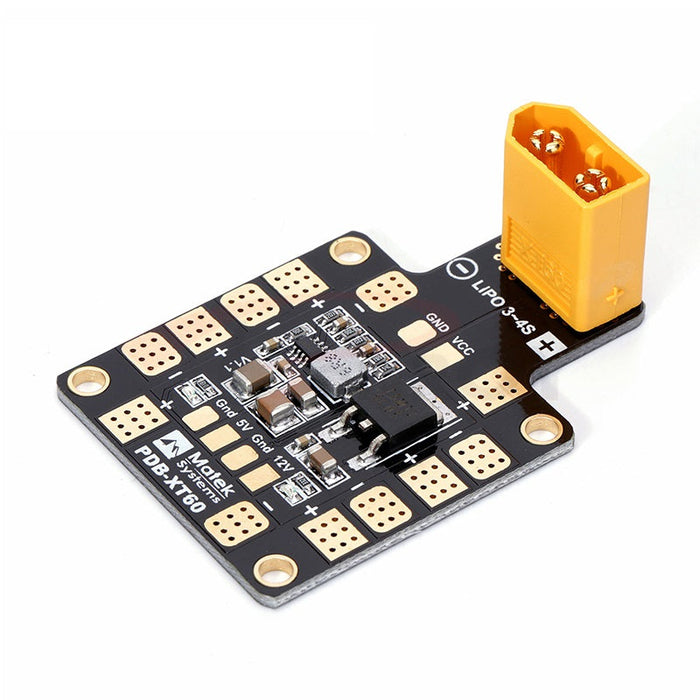

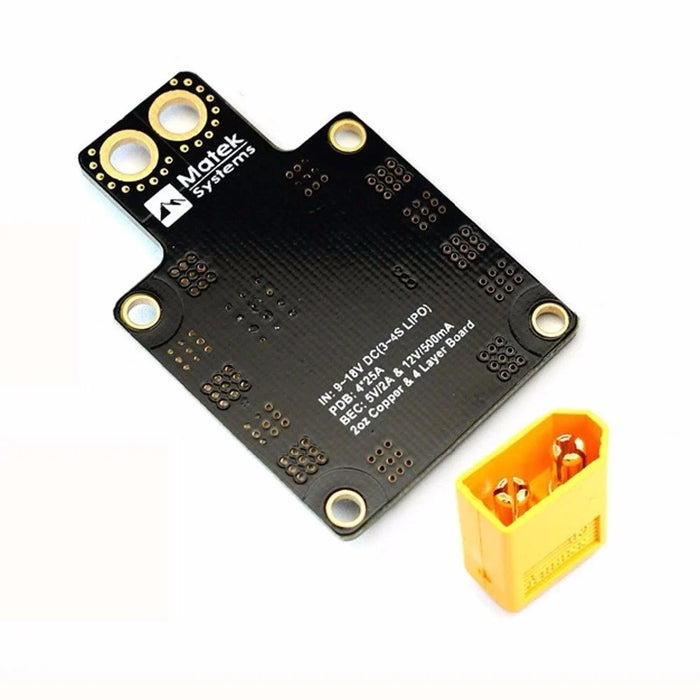

Pdb Xt60 With Bec 5V And 12V

Pdb Xt60 With Bec 5V And 12V

1. 4-layers and 1.6mm PCB
2. Built-in XT60 Socket

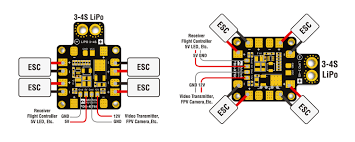

3. Total 6 pairs ESC solder tabs are fit for H or X type frame
4. Regulated 5V and 12V outputs
5. Short circuit tolerantInput voltage range: 9 – 18V DC (3S-4S LiPoly operation)
6. Output continuous current: 25Ax4 or 15Ax6
7. Output Peak current (10 seconds/minute): 30Ax4 or 20Ax6
8. Short-circuit tolerant: 5 seconds/minute

Features :

1. 4-layers and 1.6mm PCB
2. Built-in XT60 Socket
3. Total 6 pairs ESC solder tabs are fit for H or X type frame
4. 5V and 12V Output LED indicators
5. Regulated 5V and 12V outputs
6. BEC 5V output: 5V/2A (Max.2.5A 10s/minute)
7. Output Ripple: 40mV (VIn= 16V, VOut= 5V@2A load)
8. Short-circuit tolerant: 5 seconds/minute
9. BEC 12V output (4S LiPoly, 13~18V DC): 12V/500mA (Max.0.8A 5s/minute)
10. BEC 12V output (3S LiPoly): =3S LiPoly voltage – 1V

Package includes :

1 x PDB-XT60 W/BEC 5V and 12V board
1 x XT60 male Connector
