Os Gt 120Cc Gas Engine

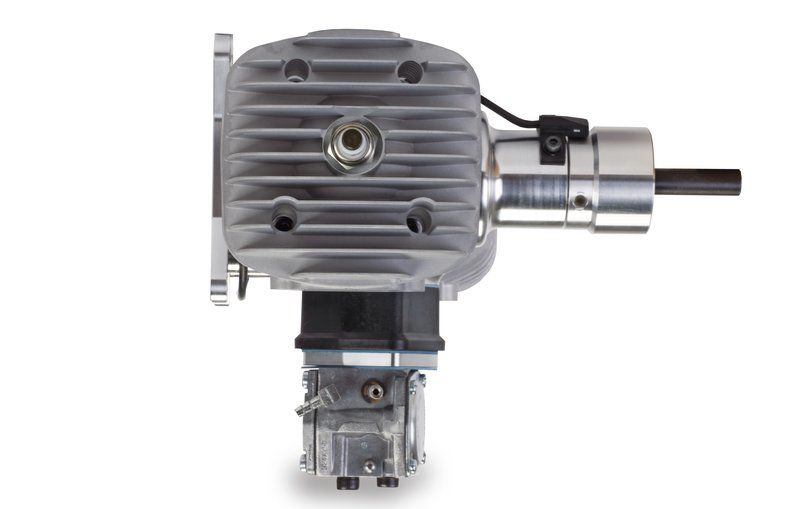

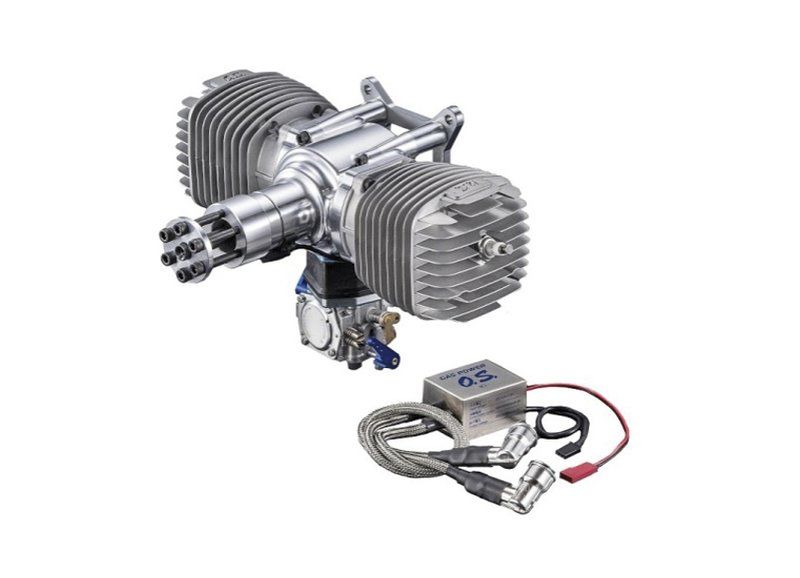

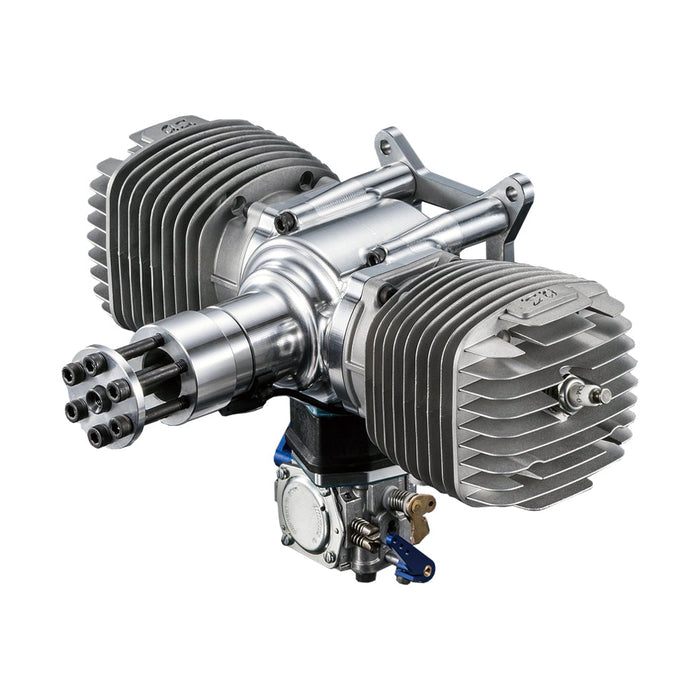

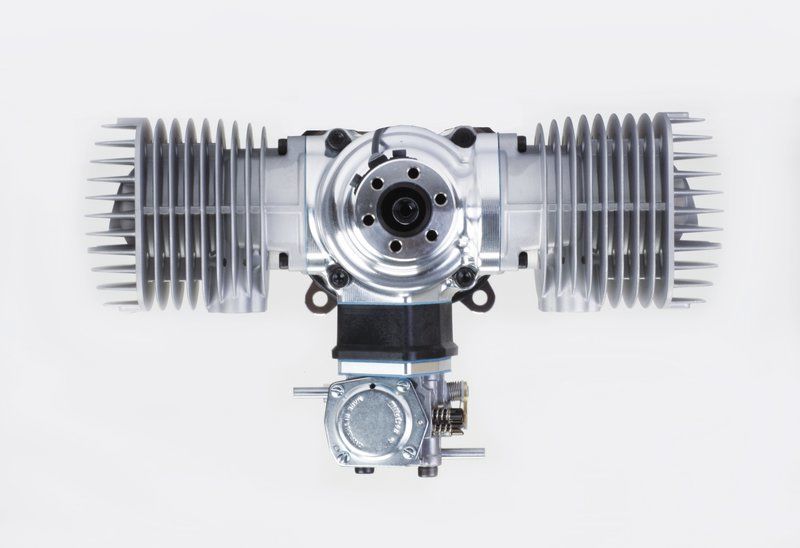

OS GT-120 GAS ENGINE (WITH ELECTRONIC IGNITION)

Compatible with 100-inch class Acro machines and 20 kg class scale planes.
2 Stroke Gasoline 120cc horizontally opposed 2-cylinder engine

The new OS GT 120 T Boxer engine uses the proven parts of the OS GT 60 engine and combines them to a boxer engine with 120ccm, this engine is perfectly suited for aerobatic machines with 2.6-2.7 m wingspan, it´s power is also very good for glider towing. Like all other O.S. GT engines it is characterized by a very quiet and stable running behavior.

The mounting holes are identical to DA and DLE engines, so the GT-120 fits in all models of this engine category.

FEATURES

CNC machined crankshaft housing

Mounting holes as in DA and DLE

Quiet, stable and powerful running behavior

Bore [mm] : 44

Stroke [mm] : 39,4

Width [mm] : 266

Height approx. [mm] : 135

rpm range, approx. : 1600-8000

Ratio oil/fuel : 1:40

All-up weight [g] : 2600

Output [kW / PS] at [rpm] : 7,35 (10,0) 7000

Shaft diameter [mm] : 10

Includes:

 Igniter IG-10

Spark plug CM-6 2 pcs

Propeller washer

Cap screw M5x50 6 pcs

Muffler Not Included
