OS BRUSHLESS MOTOR OMA 3815-1000
|

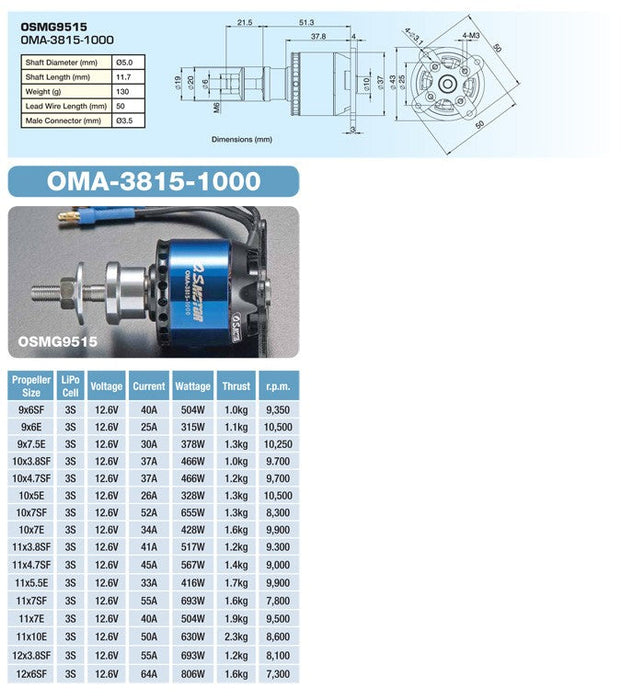

Specifications: |
|
|
Connectors |
3.5mm (Inc.) |
|
Poles |
14 |
|
Length |
37.8mm |
|
Weight |
130g |
|
Bearings |
3 |
|
Voltage |
11.1v |
|
Max Current |
45A |
|
Current Range |
50 - 70A |
|
Diameter |
37mm |
|
ESC Timing Degrees |
20 - 30 Degrees |
|
KV RPM |
1000 |
|
Max Efficiency |
85% |
|
Shaft dia |
5mm |
|
Shaft Length |
11.7mm |

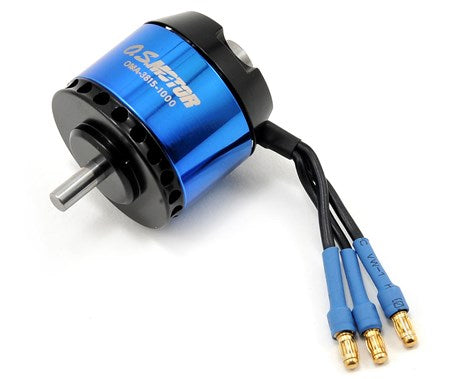

Electric motor without coal (brushless) very high performance produced by the leading manufacturer of internal combustion engines in the world.
Equipped with an external casing, mounted on ball bearings of large dimensions and fitted with the original cooling O.S. system to deliver maximum power for a long time thanks in part to the use of high quality materials and with a very high accuracy of machining.

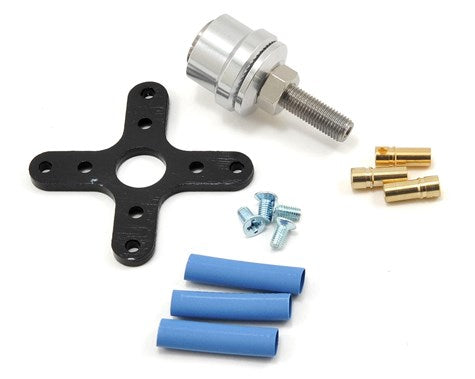

Supplied with adaptor to propeller stainless steel and fixing accessories.
This engine is equivalent to a thermal engine 2, 5cc (type O.S.15LA).
It requires the use of a variable speed of 35 to 60A and a 3-cell LiPo battery, it allows to use 9 x 6 to 12 x 6 propellers.
Features:
-Engine 14 poles
-KV: 1000.
-Carter diameter: 37mm.
-Carter length: 37.8 mm
-Diameter of the shaft: 5mm
-Axis length: 11.5 mm
-Weight: 130 g
-Jacks 3.5 mm
