Orange OT5320M 7.4V 20kg.cm 180° Copper Metal Gear Digital Servo Motor

Orange OT5320M 7.4V 20kg.cm 180° Copper Metal Gear Digital Servo Motor

1. Input Voltage Range (VDC):  4V-8.4V
2. Rated Torque: 20Kg.cm @ 7.4V
3. Gears Type: Copper Metal
4. Connector: JR
5. Command Signal: PWM
6. Size (L x W x H) mm: 55 x 20 x 43

The Orange OT5320M 7.4V 20kg.cm 180° Copper Metal Gear Digital Servo Motor works with any servo code, library, and hardware. It rotates approximately 120-degree, 60 degrees in each direction. This motor package comes with a selection of hardware and arms.

Wire Description:

• RED – Positive
• Brown – Negative
• Orange – Signal

Features:

1. Copper Gears Construction
2. The connection cable is thicker
3. Equips high-quality motor
4. High resolution
5. Fast control response
6. Constant torque throughout the servo travel range
7.  Excellent holding power

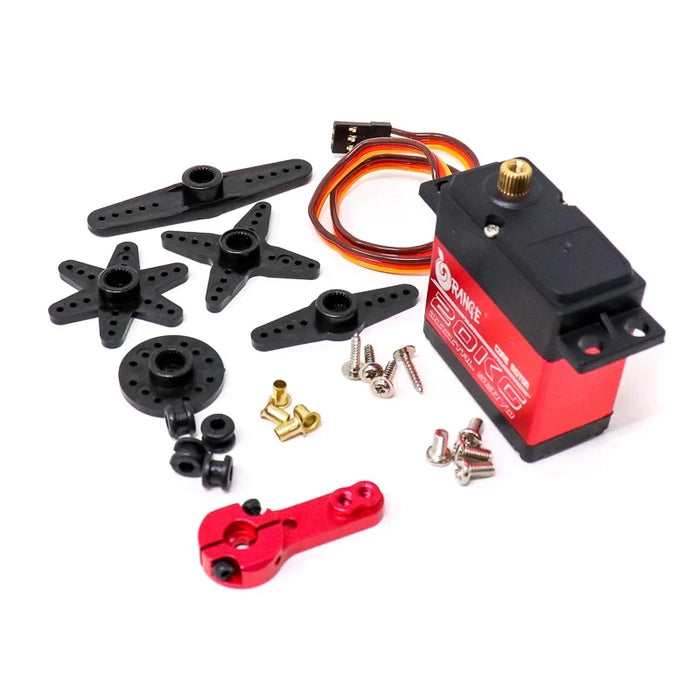

Package Includes:

1 x Orange OT5320M Copper Gear Digital Servo Motor

1 x Set of Horns

• Two Arm Small (D: 38mm)
• Two Arm Big (D: 55mm)
• Four Arm (D:36.50mm)
• Six Arm (D: 31.5mm)
• Round Horn (D: 20.8)

1 x 25T Aluminum Servo Horn Arm

1 x Set of Screws

1 x Other fitting Accessories set
