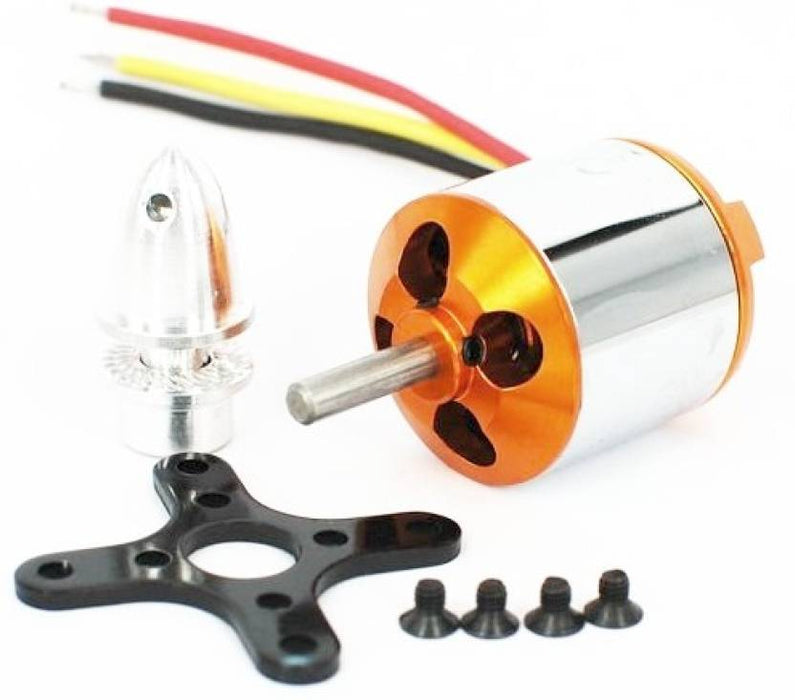

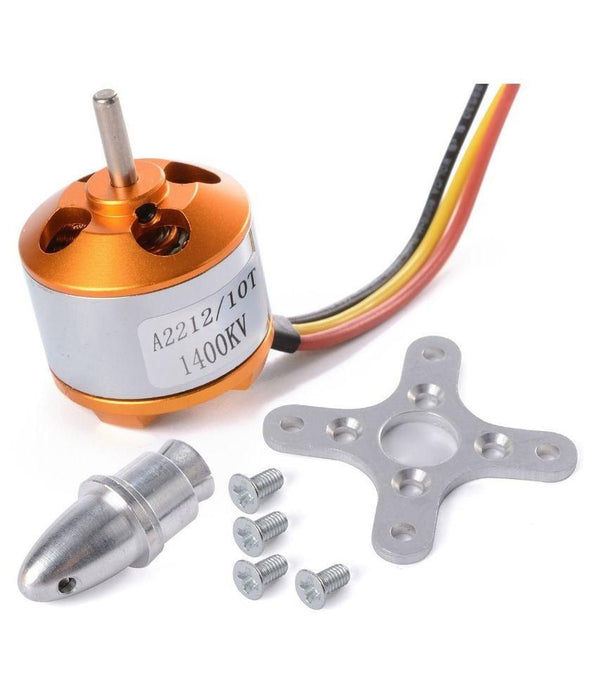

BRUSHLESS MOTOR G.POWER 1400KV

A2212 is a brushless outrunner dc motor specifically made to power Quadcopters and Multirotors. It is a 1400kV motor. It provides high performance, super power and brilliant efficiency. These motors are perfect for medium size quadcopters with 8 inch to 10 inch propellers. Use this to build powerful and efficient quadcopters.

Perfect with our F450 quadcopter frame. Our 30A ESCs can be used to drive the motor.

Specifications:-

• KV: 1400


• No load Current : 10 V : 0.5 A.


• Current Capacity: 12A/60s


• No Load Current @ 10V: 0.5A


• No. Of Cells: 2-3 Li-Poly


• Motor Dimensions: 27.5 x 30mm


• Shaft Diameter: 934;3.17mm


• Shaft diameter : 3.175mm.


• Minimum ESC Specification: 18A (30A Suggested)


• Thrust @ 3S with 1045 propeller: 1000gms approx


• Thrust @ 3S with 0945 propeller: 650gms approx


• Thrust @ 3S with 0845 propeller: 550gms approx
