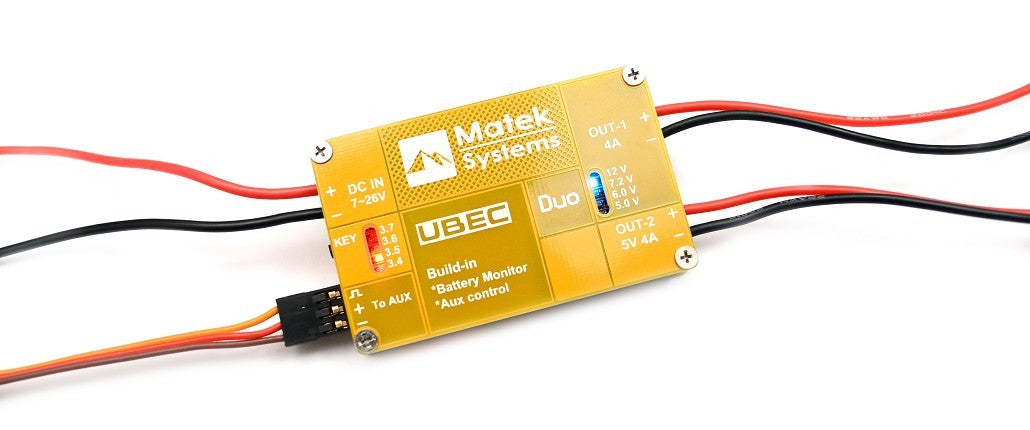

Matek Systems UBEC DUO 4A/5~12V & 4A/5V

Product Description:

Matek Systems UBEC DUO 4A/5~12V & 4A/5V

Features:

• Switch-mode buck regulator
• Two independent output channels
• 5V Output & 5-12V Output both rated at 4A
• Built-in Aux control (On/Off) function
• Low input voltage alarm & threshold setting
• Output Short-circuit protection

Specification:

• Input voltage range: 7~26V (2~6S LiPoly battery)
• Out-1: 5V, 6V, 7.2V, 12V (adjustable), 0~4A, Max 6A, inbuilt Aux control switch
• Out-2: 5V, 0~4A, Max 6A
• Efficiency: up to 95%
• Standby current: 10mA
• LiPoly voltage alarm setting: 3.4V, 3.5V, 3.6V. 3.7V/Cell & OFF
• Input cable: 20cm (Silicone 20 AWG)
• Output cable: 30cm (2pairs, Silicone, 22AWG)
• Size: 58x36x8mm
• Weight: 32g
