Matek Digital Airspeed Sensor (Aspd-4525)

MATEK DIGITAL AIRSPEED SENSOR ASPD-4525

Description

Matek Digital Airspeed Sensor (ASPD-4525)

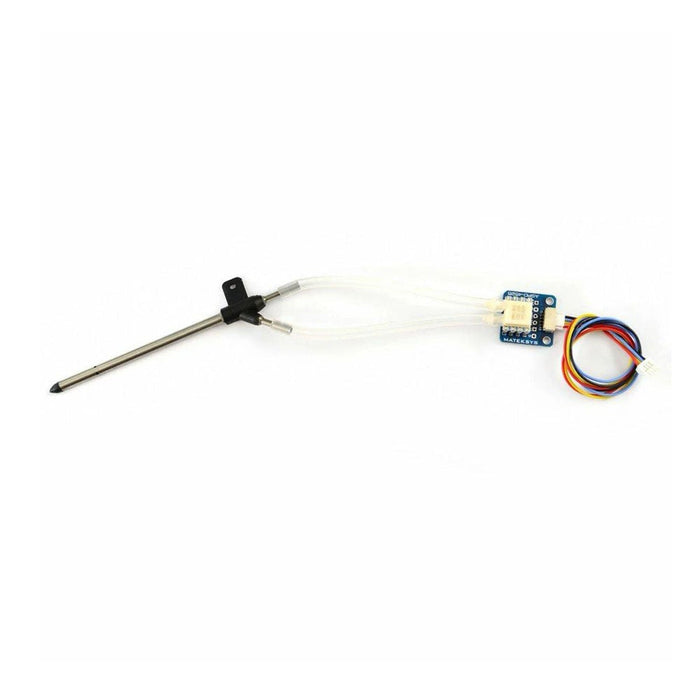

The Mateksys Digital Airspeed Sensor ASPD-4525 features a ASPD-4525 sensor board, JST-GH to JST-GH 20cm silicon cable, pitot tube and a clear silicon tubing (40cm) to help monitor your wing’s airspeed!

Specifications

Board Supply voltage: 4~6V DC

Sensor: MS4525DO

Working current: 5mA

Output: I2C (SCL & SDA)

Pressure Ranges: 1 PSI (6.89kPa)

Maximum Pressure: 20 PSI (137.9kPa)

Operating Temperature: -40°C ~ 125°C

Accuracy: ±0.25% SPAN

Red LED: power indicator

JST-GH sequence: 5V, SCL, SDA, GND

Weight: 3.5g (sensor board)

Wiring

5V to FC 4~6V

SCL to FC I2C_SCL

SDA to FC I2C_SDA

G to FC GND

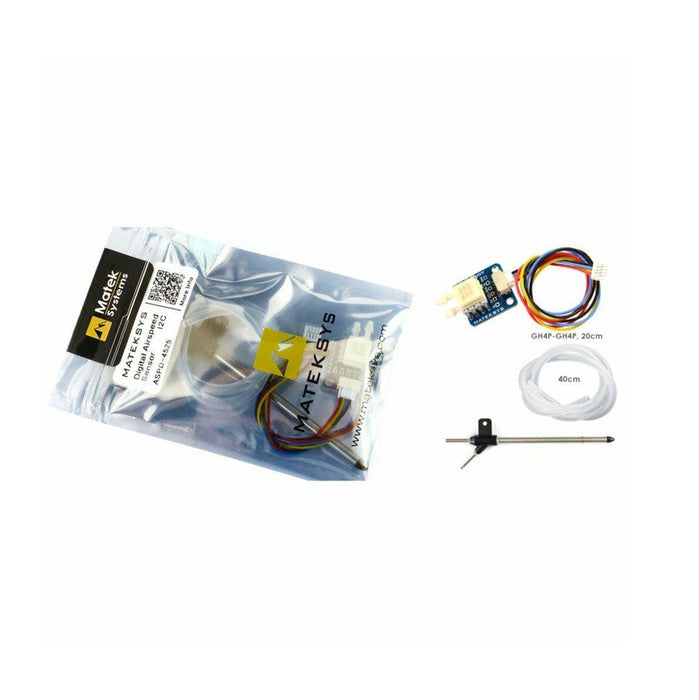

Includes

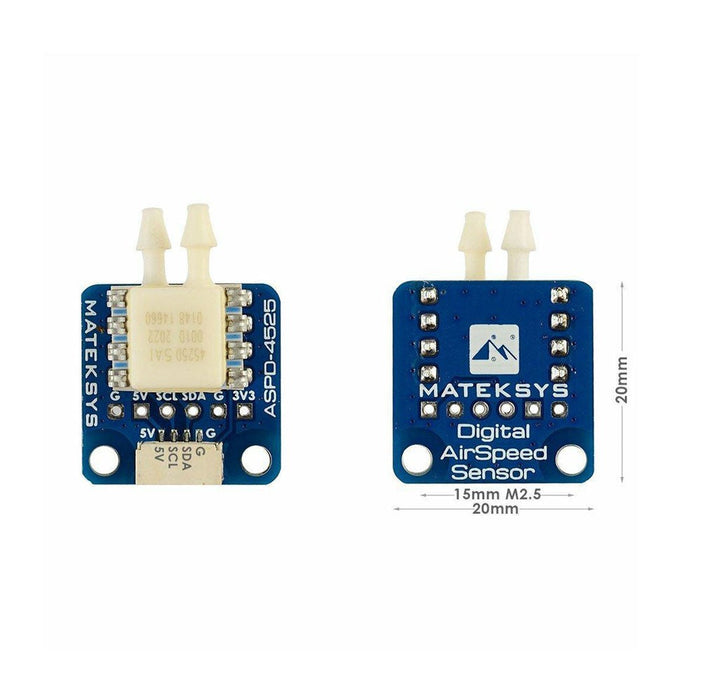

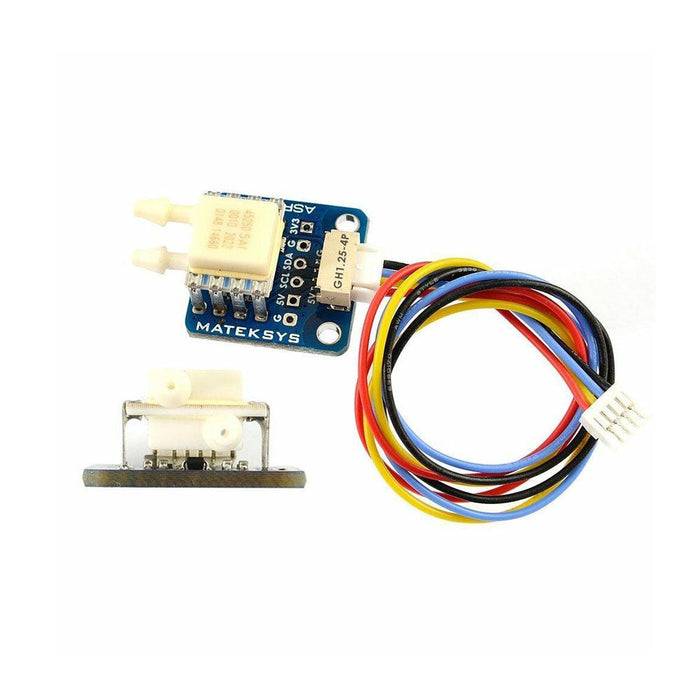

ASPD-4525 Sensor Board

JST-GH to JST-GH 20cm silicon cable

Pitot Tube

Clear silicon tubing 40cm
