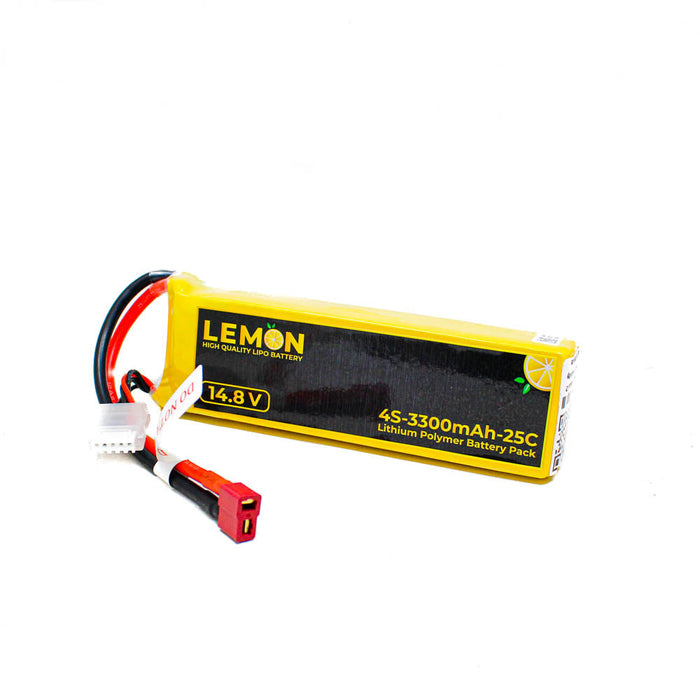

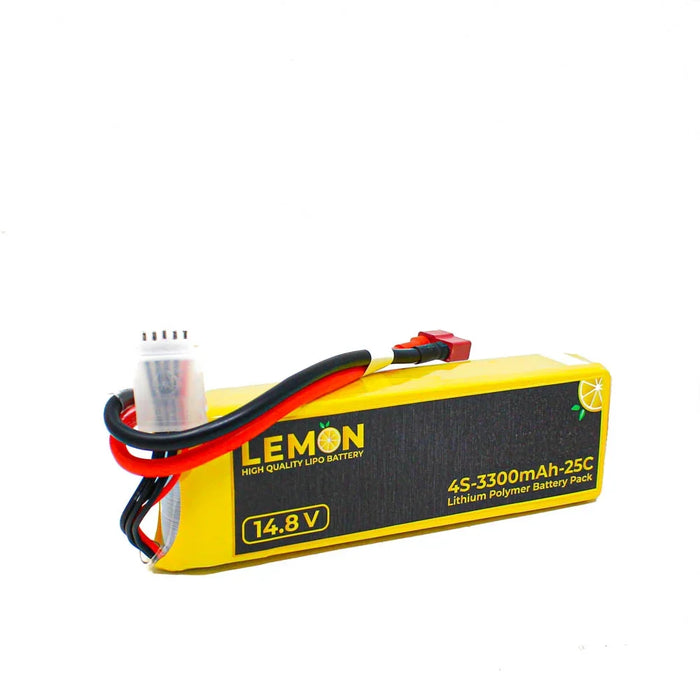

Lemon 3300mAh 4S 25C/50C Lithium Polymer Battery Pack

Model No.

3300mAh 4S 25C

Connecting Mode

4S-1P

Connector Type

Deans

Nominal Capacity (mAh)

3300mAh @ 0.2C Discharge

Minimum capacity

3185mAh @ 0.2C Discharge

Nominal Voltage (V)

14.8V（Cell 3.7V）

Open-Circuit Voltage

16.6~16.8V（Cell 4.15~4.20V）

Charging time

Rapid charge：1.5 hours(3.3A)
Standard Charging：7.5 hours(0.66A)

High Rate Discharge

≥4.45 min Standard Charge/rest 5min discharge at 40A to 12.8V

Internal Impedance

≤13.0mΩ

Length (mm)

136

Width (mm)

41.5

Height (mm)

25

Weight (g)

325
