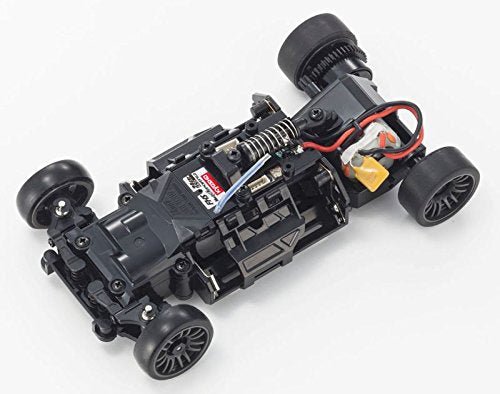

Kyosho Raybrig NSX MINI-Z Racer MR-03

MR03Sports2 r/s RAYBRIG NSX CONCEPT-GT 32225GRG

• Features Perfex KT-19 transmitter. Steering volume adjustment possible.
• Factory assembled with quality finish suitable for interior display.
• All MINI-Z Racer bodies can be installed. *Requires compatible motor case and diff gear assembly.
• Features unique front suspension (VCS) that delivers optimum camber change in concert with suspension stroke.
• Spring stopper can be detached with just two screws for easy replacement of coil spring on front suspension.
• A huge variety of parts for MR-03 chassis can be installed.
• Optional gyro unit (MZW431) can be installed. Adjust the gyro’s sensitivity through the volume control on the chassis.
• Also, this model is specially designed for the KT-19 transmitter so there is no compatibility with the former KT-18 transmitter/EX-5UR ASF transmitter (No.82011).


• Length: 124～133mm（MM Chassis:125～133mm、RM Chassis:124～132mm）
• Width: 65～76mm
• Height: 34～35mm
• Wheelbase: 86～106mm（86、90、94、98、102、106）
• Tread (F/R)- (Wide)61.5mm / 59mm　(Narrow)56.5mm / 56.5mm [when wheel offset is 0]　
• Tire(F/R): 23.5～25×8.5mm/25～27×8.5～11mm
• Gear Ratio: 7.3、6.3、5.5、4.9：1
• Weight: 135g approx.
• Motor: 130-Class
