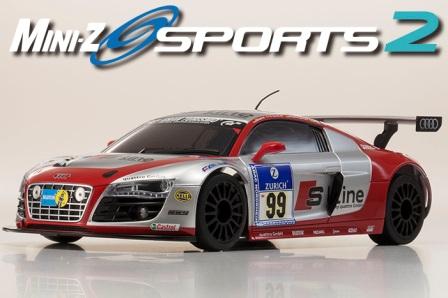

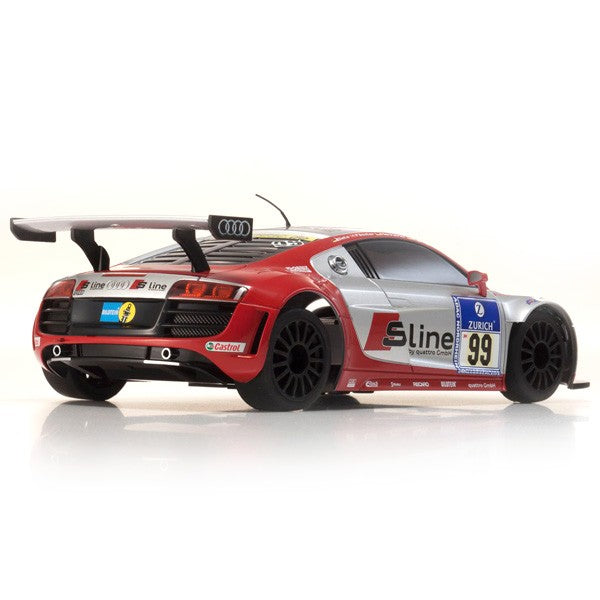

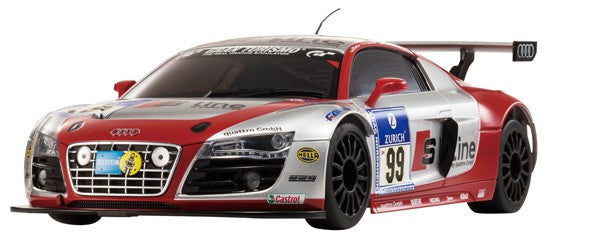

Kyosho Audi R8 MINI-Z Racer MR-03 Sports.
- Features Perfex KT-19 transmitter. Steering volume adjustment possible.
- Factory assembled with quality finish suitable for interior display.
- All MINI-Z Racer bodies can be installed. *Requires compatible motor case and diff gear assembly.
- Features unique front suspension (VCS) that delivers optimum camber change in concert with suspension stroke.
- Spring stopper can be detached with just two screws for easy replacement of coil spring on front suspension.
- A huge variety of parts for MR-03 chassis can be installed.
- Optional gyro unit (MZW431) can be installed. Adjust the gyro s sensitivity through the volume control on the chassis.
|
Readyset Contents > · Factory assembled chassis · Pre-painted factory assembled plastic body finished with markings · 2.4Ghz transmitter Perfex KT-19 · Parts set for changing front tread · Front suspension spacer for adjustment · 6T, 7T, 8T, 9T pinion gears · Wheel wrench · Pinion tools · Spare wheel nut · Tires and wheels included |
|
|
< Required For Operation > · 4 x AAA size alkaline batteries or NiMH x 4 for chassis · AAA x 4 alkaline batteries for transmitter |
|

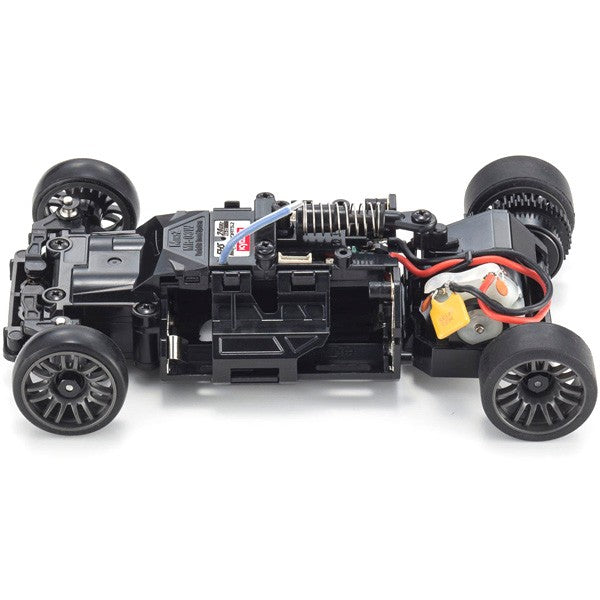

Chassis Technical Data |
|
Length |
124-133mm(MM Chassis:125-133mm,RM Chassis:124-132mm) |
|
Width |
65-76mm |
|
Height |
34-35mm |
|
Wheelbase |
86-106mm(86,90,94,98,102,106) |
|
Tread (F/R) |
(Wide)61.5mm / 59mm (Narrow)56.5mm / 56.5mm [when wheel offset is 0] |
|
Tire(F/R) |
23.5-25×8.5mm / 25-27×8.5-11mm |
|
Gear Ratio |
7.3,6.3,5.5,4.9:1 |
|
Weight |
135g approx. |
|
Motor |
130-Class |
