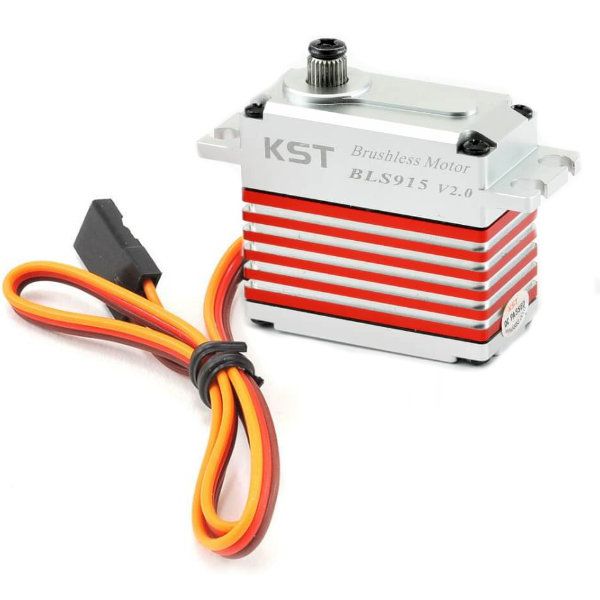

KST BLS915 V8 HV Standard Brushless Servo 25Kg/Cm@8.4V MW-KSTBLS915V2

KST BLS915 V8 HV Standard Brushless Servo 25Kg/Cm@8.4V MW-KSTBLS915V2

KST BLS915 V8 HV Standard Brushless Servo 25kg/cm@8.4V MW-KSTBLS915V2

BLS915 V8 Technical details:

Operating voltage (max.) [V]: 6-8.4V actuating
force [kg / cm] @ 4.8V: -
actuating force [kg / cm] @ 6.0V: 18
actuating force [kg / cm] @ 7.4V : 22
actuating force [kg / cm] @ 8.4V: 25
actuating time [s / 60 °] @ 4.8V: -
actuating time [s / 60 °] @ 6.0V: 0.09
actuating time [s / 60 °] @ 7.4V: 0.08
Positioning time [s / 60 °] @ 8.4V: 0.07
width [mm]: 20.0
length [mm]: 40.5
height [mm]: 38.0
weight [g]: 78.0
motor type: Brushless
frequency range: 1520us / 333Hz, 900us-2100us
gear type: Steel
bearing type: 2BB
output shaft type: H25T / 3F
servo type: Heli
electronics: digital
position sensor : potentiometer
waterproof: no
