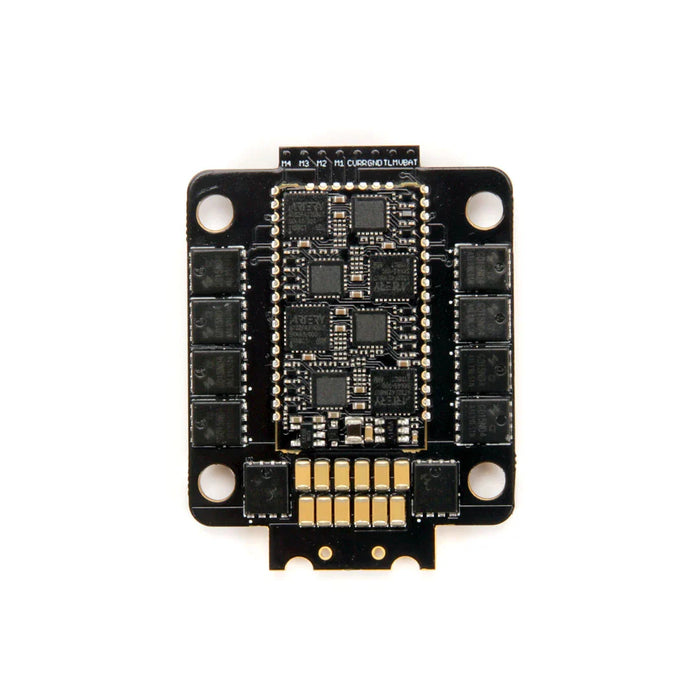

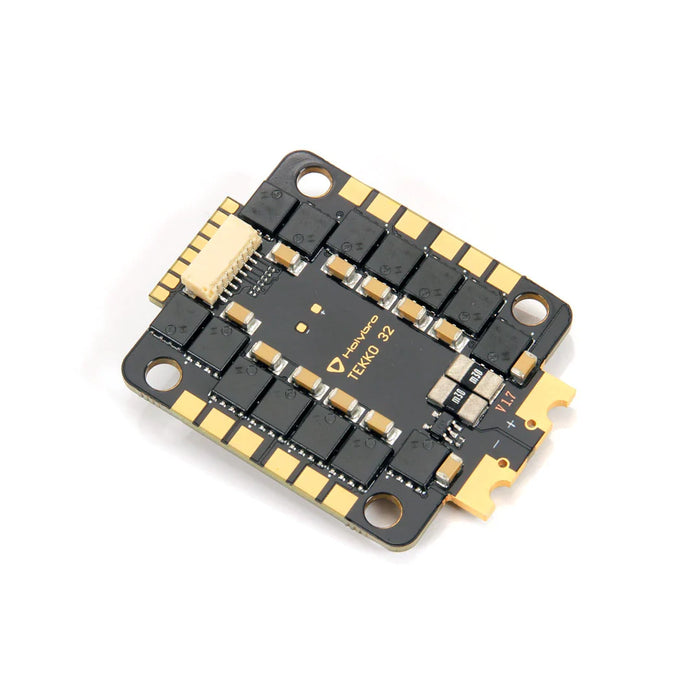

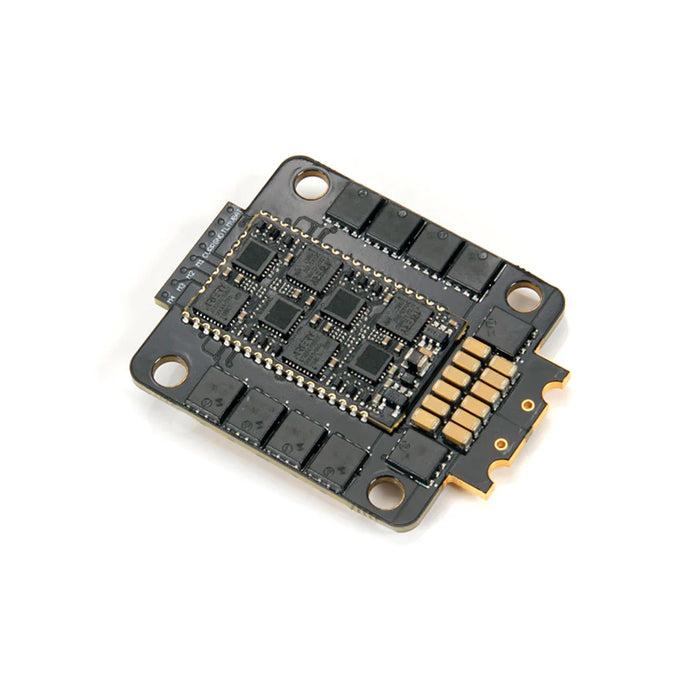

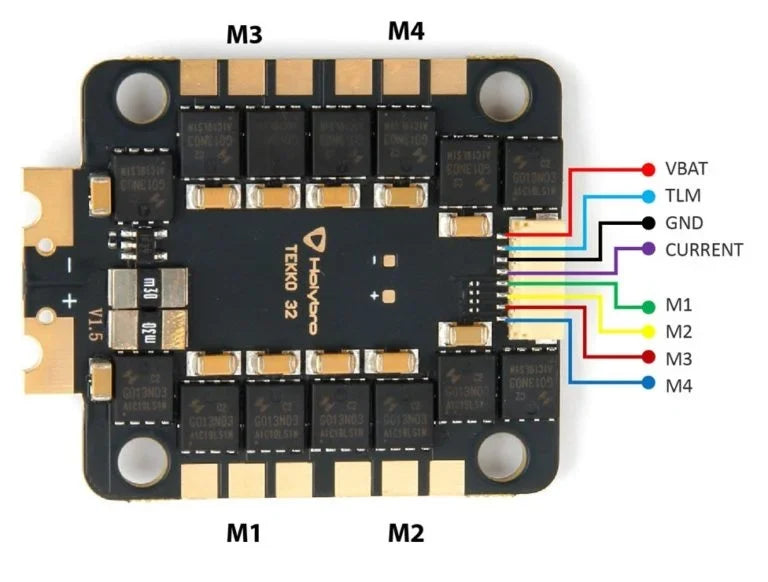

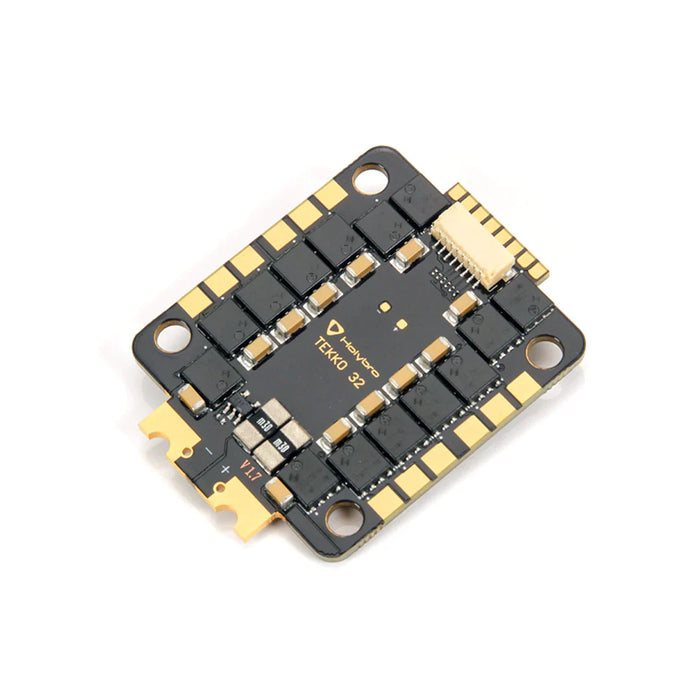

Holybro Tekko32 F4 4in1 50A ESC

Holybro Tekko32 F4 4in1 50A ESC

1. Continuous Current: 50A x4
2. Burst Current: 60A x4
3. Supports 4-6S battery
4. Supports DShot 150/300/600/1200 & MultiShot/OneShot/Proshot/PWM etc.
5. ESC telemetry Supported

F4 MCU @150Mhz / PWM output up to 96K / 4~6S / BLHeli32 / 30×30

Features:

1. New and faster F4 MCU @ 150Mhz (compared to F3 @108Mhz & F0 @48Mhz)
2. PWM Frequency:  16K to 96K
3. Separate drive & control circuit, broadens the current capability of the drive circuit while reducing the electrical interference to the control circuit.

Specifications:

1. Continuous Current: 50A x4
2. Burst Current: 60A x4
3. Supports 4-6S battery
4. Supports DShot 150/300/600/1200 & MultiShot/OneShot/Proshot/PWM etc.
5. ESC telemetry Supported
6. Onboard analog current sensor
7. No output BEC
8. BLHeli_32 firmware
9. 1000uf 35v capacitor included (highly recommended for 6s setup)
10. Amperage meter scale ratio: 168
11. Dimensions: 45x37x6mm / Weight: 13.8g
12. Mounting holes: M4 30.5×30.5mm (M3 grommets included)

Package Includes:

1 x Holybro Tekko32 F4 50A BLHeli_32 4-In-1 ESC
4 x M3 Anti-Vibration Silicone Grommet Insert
1 x Electrolytic capacitor: 1000uF 35v
1 x 8pin to 8pin 1mm pitch 65mm cable
1 x 8pin to 8pin 1mm pitch 25mm cable
