Holybro Sik Telemetry radio V3-100 mW 433 Mhz

SKU 05830
Sold out
Original price ₹ 10,130.00 - Original price ₹ 10,130.00
Original price
₹ 10,130.00
₹ 10,130.00 - ₹ 10,130.00
Current price ₹ 10,130.00

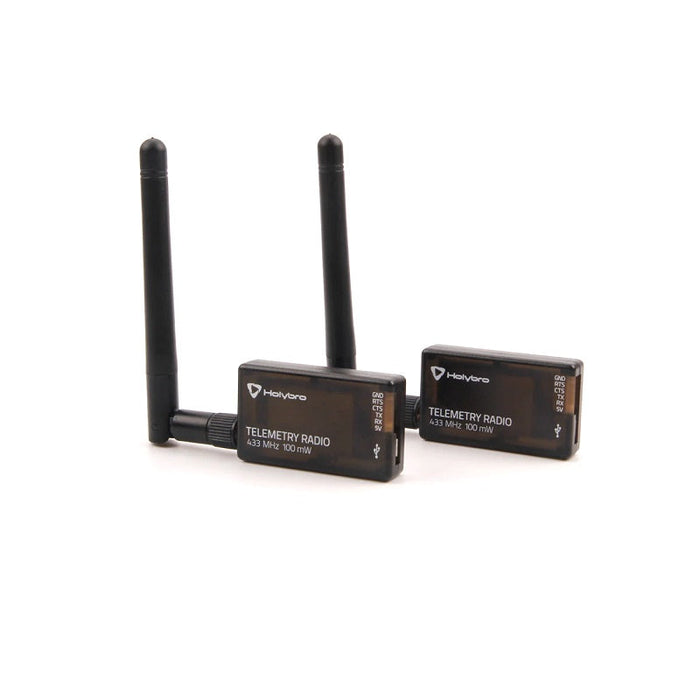

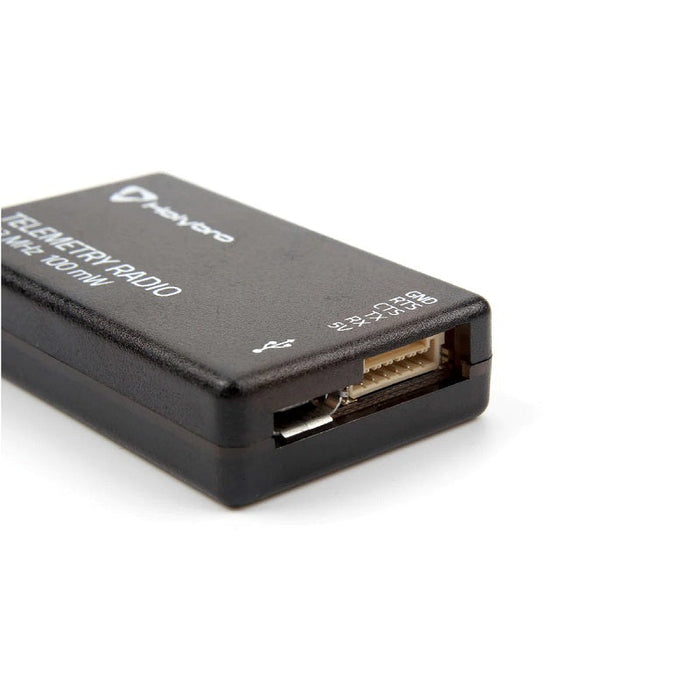

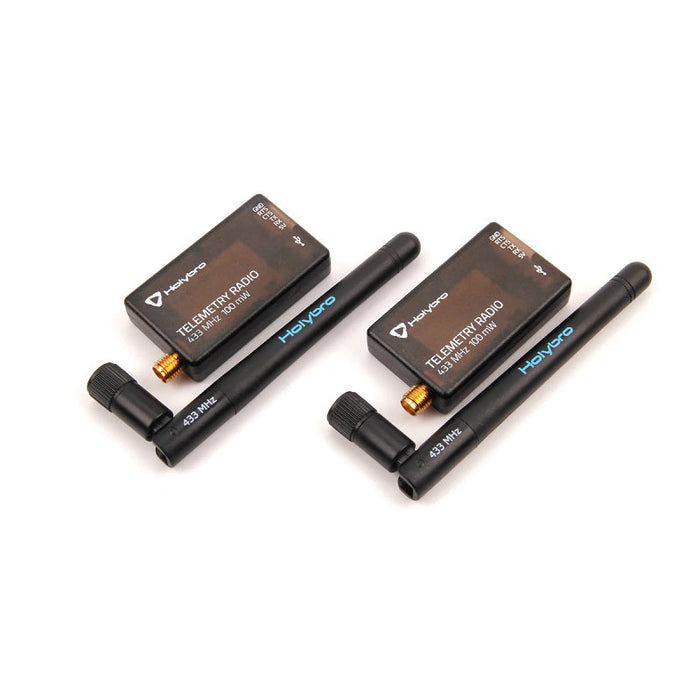

Holybro Sik Telemetry radio V3-100 mW 433 Mhz

  1. Micro-USB port (Type-C Adapter Cable Included)
  2. Frequency Hopping Spread Spectrum (FHSS) Configurable duty cycle
  3. Error correction corrects up to 25% of bit errors Open-source SIK firmware
  4. Configurable through Mission Planner & APM Planner

This Holybro SiK Telemetry Radio is a small, light and inexpensive open source radio platform that typically allows ranges of better than 300m “out of the box” (the range can be extended to several kilometres with the use of a patch antenna on the ground). This radio is plug-n-play all Pixhawk Standard and other Flight Controller, providing the easiest ways to setup a telemetry connection between your Autopilot and a ground station. It uses open source firmware which has been specially designed to work well with MAVLink packets and to be integrated with the Mission Planner, Ardupilot, QGroundControl, PX4 Autopilot. The radios can be either 915Mhz or 433Mhz and you should purchase the model which is appropriate for your country/region.



Features:

  1. Open-source SIK firmware
  2. Plug-n-play for Pixhawk Standard Flight Controllers
  3. Easiest way to connect your Autopilot and Ground Station
  4. Interchangeable air and ground radio
  5. Micro-USB port (Type-C Adapter Cable Included)
  6. Frequency Hopping Spread Spectrum (FHSS) Configurable duty cycle
  7. Error correction corrects up to 25% of bit errors Open-source SIK firmware
  8. Configurable through Mission Planner & APM Planner
  9. FT230X/FT231 is a USB to BASIC UART IC
  10. 6-position JST-GH connector



Package Includes:

1 x Holybro Sik Telemetry radio V3-100 mW 433 Mhz





Connector

RP-SMA connector

Communication

2-way full-duplex communication through adaptive TDM UART interface

Input Voltage (V)

5V DC (from USB or JST-GH)

Transmit current

100 mA at 20dBm

Receive current

25 mA

Serial interface

3.3 V UART

Communication Protocol

MAVLink protocol framing
