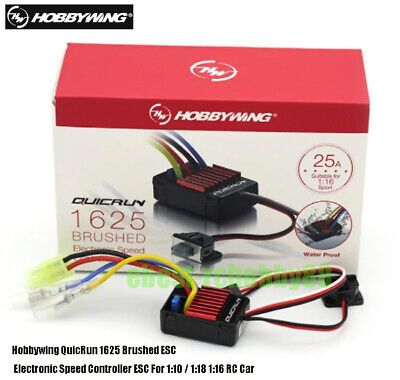

HobbyWing QuicRun 1625 25A waterproof Brushed Electronic Speed Controller

1. Waterproof and dustproof, suitable for races in all weather conditions.
2. Small size with built-in capacitor module.
3. Fwd/Rev/Br running mode fits various vehicles (Fwd =Forward, Br=Brake, Rev=Reverse).
4. Great current endurance capability.
5. Great built-in BEC output capacity.
6. Automatic throttle range calibration, easy to use.
7. ESC parameters are easy to set withwith jumpers.
8. Multiple protections:
9. Over Voltage Protection
10. Low voltage cut-off protection for battery
11. Over-heating protection
12. Throttle signal loss protection.
13. Risk-Free Manufacturer’s limited warranty.

1. Cont. Current /Peak Current/ Resistance: 25A/100A/0.003?
2. Motor Type Supported: Brushed Motor
3. Car Applicable: 1:16 &1:18 On-road/Off-road/Buggy/Monster
4. Suitable Battery: 2-3S LiPo, 6-9 cell NiMH
5. Brushed Motor Limit:
   1. 2S LiPo or 6 cell NiMH: 280, 370 or 380 Size Motor RPM<30000 @7.2V
   2. 3S LiPo or 9 cell NiMH: 280, 370 or 380 Size Motor RPM<20000 @7.2V
6. BEC Output: 1A/5V (Linear Mode)
7. PWM Frequency: 1KHz
8. Size/ Weight: 34(L)*24(W)*14(H) / 23.5g
9. Running Modes: Forward/Reverse/Brake

Package Includes:

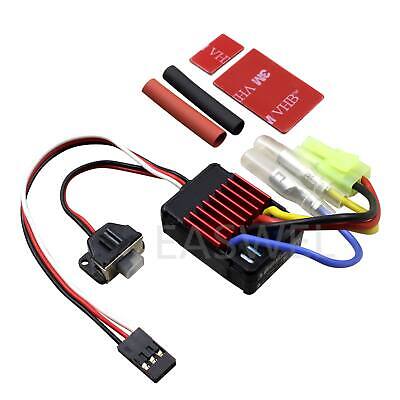

1 x HobbyWing QuicRun 1625 25A waterproof Brushed Electronic Speed ​​Controller

1 x User Manual
