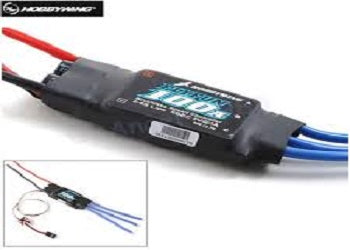

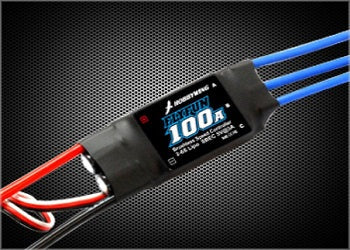

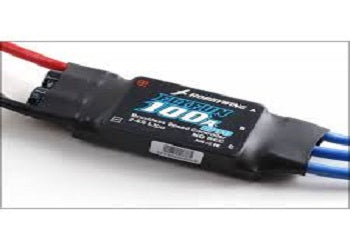

HOBBYWING ESC 100AMP

100A ESC Professional Series from HobbyWing

Specifications:

• Output:  Continuous 100A, Burst 120A up to 10 seconds.

• Input Voltage: 2-6 cell lithium battery or 5-18 cell NiCd/NiMh battery.

• BEC: FlyFun-100A: 3A / 5V switching mode BEC.

• Refresh rate of throttle signal: 50Hz to 432Hz.

• Max Speed:  210000rpm for 2 Pole BLM, 70000rpm for 6 pole BLM, 35000rpm for 12 pole BLM.

• Size: FlyFun-100A: 83mm*31mm*16mm.

• Weight: FlyFun-100A: 76.2g.



Features:

• Safety arming feature: Regardless of the throttle stick position, the motor will not spin after battery is connected.

• Throttle calibration function: Throttle range can be calibrated to be compatible with different transmitters.

• User programmable.

• Multiple program methods supported: transmitter stick, LED Program Card. ESC is very easy to program at home or at the flying field.

• Compatible with LiPo battery and NiCd/NiMH battery.

• Internal timing can be changed to be suitable for different brushless motors.

• Full protection: Low voltage cutoff protection / Over-heating protection / Throttle signal loss protection.

• Extremely low resistance PCB is used at the power output section giving the ESC super current endurance capability.

• Microprocessor uses a separate voltage regulator IC, with great anti-jamming capability.
