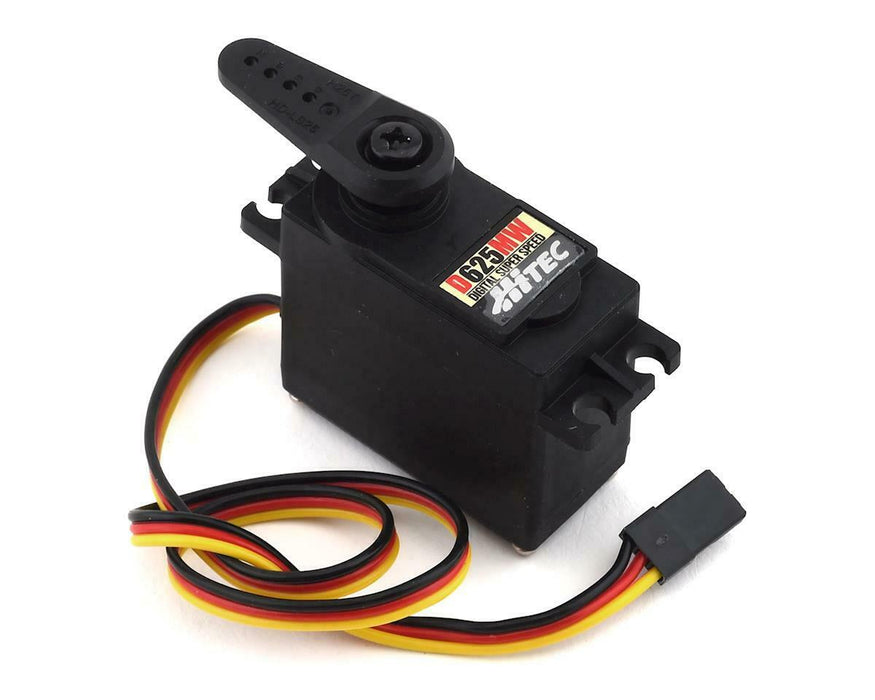

Hitec Servo D625mw

Features

• Programmable PWM Digital Amplifier
• 32-Bit MCU with 12-Bit ADC Circuitry
• 4096 Resolution
• 1M Cycle Long Life Potentiometer
• Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
• Dual Ball Bearing Supported Output Shaft
• 25-Tooth Output Spline

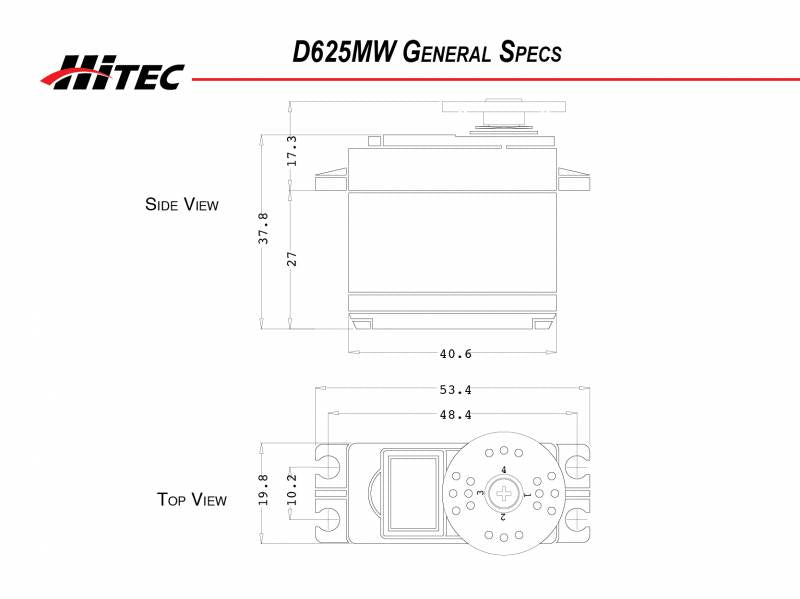

Physical Specifications

• Dimensions (Inches)-1.59 x 0.77 x 1.48
• Dimensions (Metric)-40.6 x 19.8 x 37.8
• Weight (Ounces)-2.11
• Weight (Gram)  -57.0
• Circuit Type-32bit Programable Digital
• Motor Type-3 Pole Metal Brush Ferrite
• Gear Material-Metal
• Bearing Type-Dual Ball Bearing
• Output Shaft (type / Ømm)-H25T
• Case Material-Plastic
• Dust / Water Resistance               -N / A
• Connector Gauge (AWG) / Strand Count-22 / 60

Radio Control Applications

• Parkflyer-N / A
• Sport Plane-12 - 15 lbs.
• Sailplane-2 meters and up
• 3D Performance-12 - 15 lbs.
• Scale-12 - 15 lbs.
• Electric Helicopter-600mm
• Gas Helicopter-50-59 Class
• On Road-1/10th
• Monster Truck-1/10th
• Buggies                -1/10th
• Truggies-1/10th
• Short Course / Truck-2 meters and up
• Crawlers-N / A
• Sail Boat-= >1M & Scale
• Power Boat-1/10th
