Hitec HS-5125MG Slim Metal Gear Wing Servo

Product Description

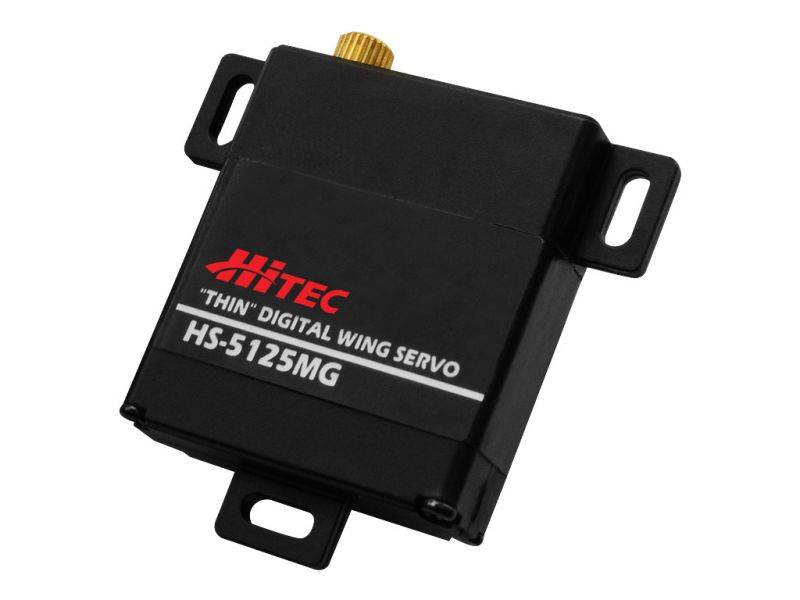

Hitec HS-5125MG Slim Metal Gear Wing Servo

At 10mm thick, the Hitec HS-5125MG servo is a great choice for a super thin wing servo. Featuring a digital programmable circuit providing instant torque and holding power, Hitec’s HS-5125MG also uses our reliable M/P gear and metal gear train technology for super durability.

Features
Super Thin Programmable Digital Wing Servo
Strong Metal Gears
Dual Ball Bearings
Standard Programmable Digital Circuit for Greater Holding Power
10mm Design Fits Perfectly in Slim Aircraft and Glider Wings

Programmable Functions
End Point Adjustments
Direction
Fail Safe
Dead Band
Speed (Slower)
Data Save / Load
Program Reset

Specifications

• Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
• Speed (Second @ 60°) 0.17 ~ 0.13

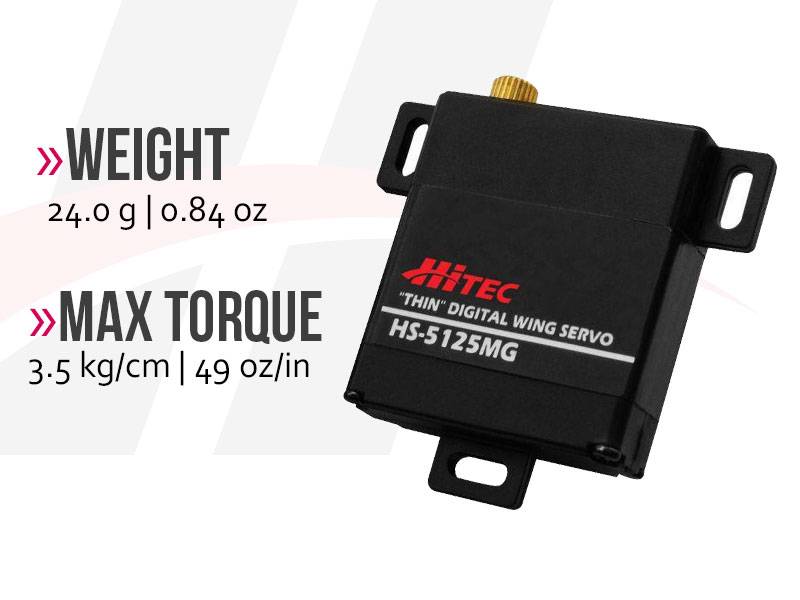

• Maximum Torque Range oz. / in. 42 ~ 49
• Maximum Torque Range kg. / cm. 3.0 ~ 3.5
• Current Draw at Idle 3 mA
• No Load Operating Current Draw 230 mA
• Stall Current Draw 1,200 mA
• Dead Band Width 1 µs

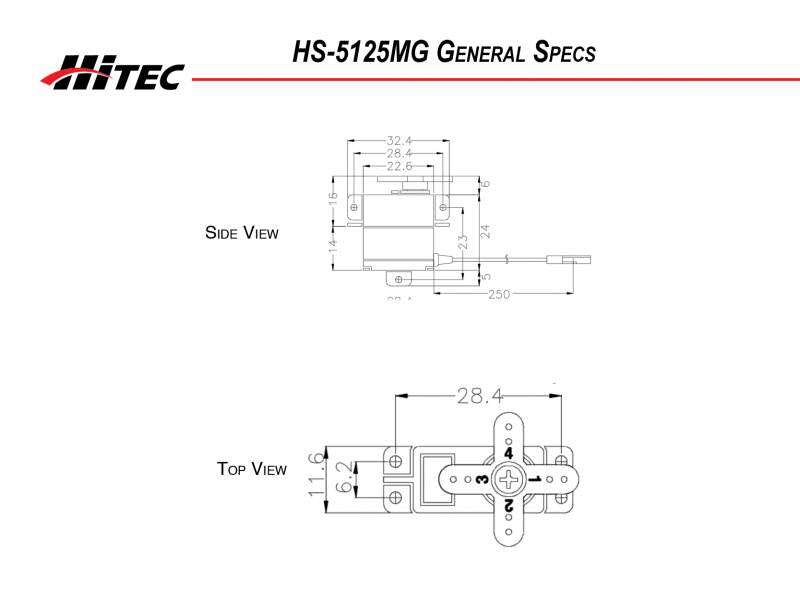

• Dimensions (Inches) 1.18 x 0.39 x 1.33
• Dimensions (Metric) 30.0 x 10.0 x 34.0
• Weight (Ounces) 0.84
• Weight (Gram) 24.0
• Circuit Type G1 Programable Digital
• Motor Type 3 Pole Metal Brush Ferrite
• Gear Material Metal
• Bearing Type Dual Ball Bearing
• Output Shaft (type / Ømm) Micro 23
• Case Material Plastic
• Dust / Water Resistance N / A
• Connector Gauge (AWG) / Strand Count 25 / 40
