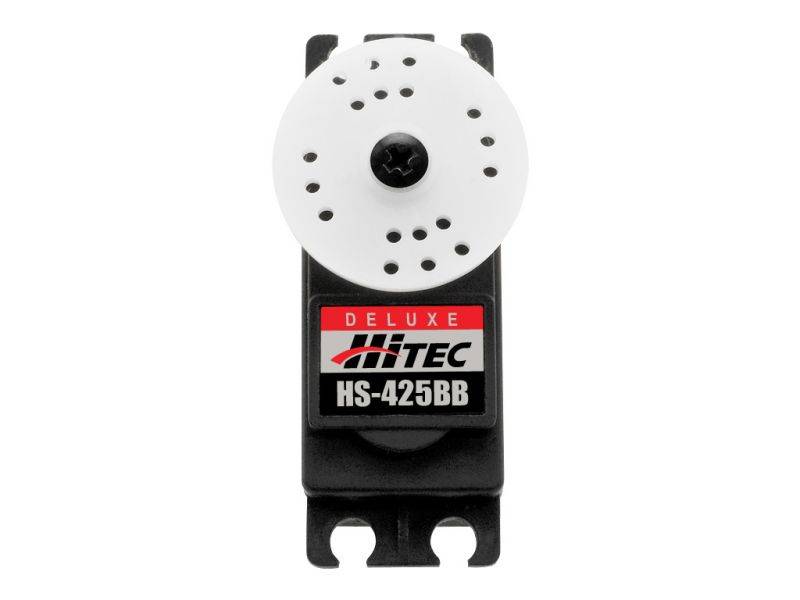

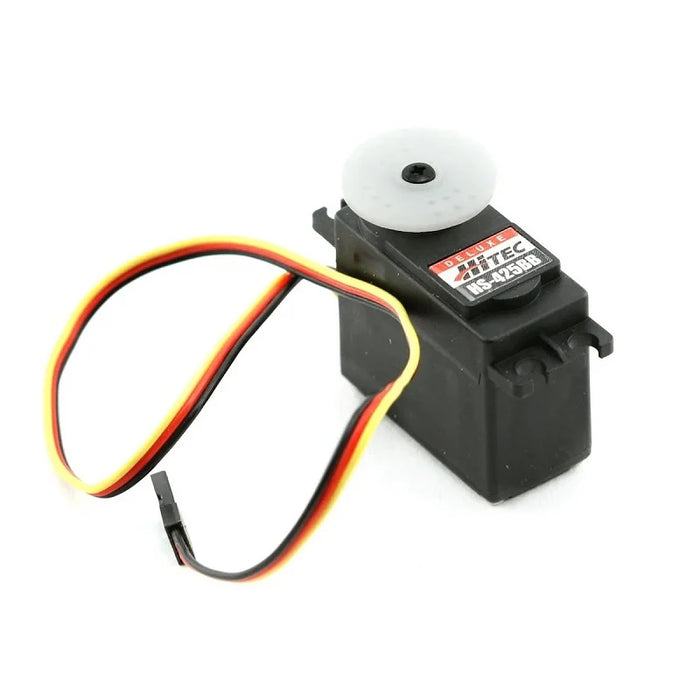

Hitec Hs-425BB Deluxe Ball Bearing Standard Servo

Hitec Hs-425BB Deluxe Ball Bearing Standard Servo

Product Description
The HS-425BB is offered with dual ball bearings, impact resin gears and high performance circuitry. As one of our longest running production servos, it has proven to be a durable and dependable product year after year.

Features
Durable and Dependable Construction
Durable Resin Gear Train
Dual Ball Bearings
High Performance Circuitry


HS-425BB Servo Specifications
Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
Speed (Second @ 60°) 0.21 ~ 0.16
Maximum Torque Range oz. / in. 46 ~ 57
Maximum Torque Range kg. / cm. 3.3 ~ 4.1
Current Draw at Idle 8 mA
No Load Operating Current Draw 150 mA
Stall Current Draw 800 mA
Dead Band Width 8 µs
Physical Specifications
Dimensions (Inches) 1.59 x 0.77 x 1.44
Dimensions (Metric) 40.6 x 19.8 x 36.6
Weight (Ounces) 1.60
Weight (Gram) 45.5
Circuit Type HT7003 Analog SMT
Motor Type 3 Pole Metal Brush Ferrite
Gear Material Nylon
Bearing Type Dual Ball Bearing
Output Shaft (type / Ømm) Standard 24
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 25 / 40
