Hangar 9 Raptor F22

Hanger 9 F-22 Raptor PTS ARF - Grey

Features

• Progressive design allows smooth advancement
• Included NACA droops prevent spins and tip stalls
• 3-position flap system and wing tip extensions for speed control and additional lift

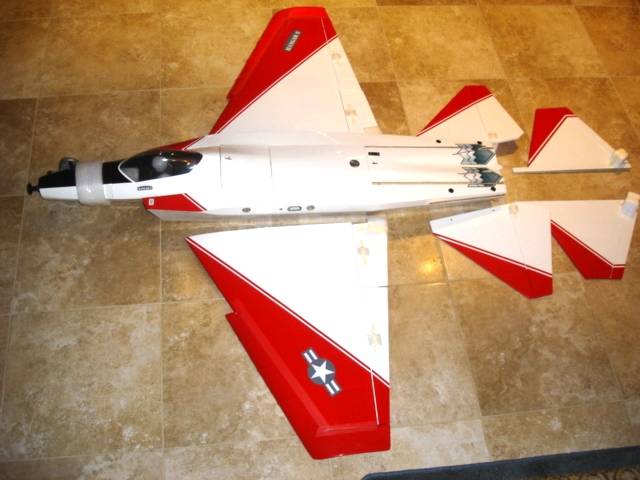

• Removable plug-in wings for simple field assembly, easy transportation and storage
• Precision laser cut parts and the latest assembly techniques
• Prepainted pilot figure installed in cockpit
• Easy access canopy and main hatch
• Covered in exclusive Hangar 9® UltraCote®

Specifications:
Wing Span: 52 in (1321mm) (with droops and tip extensions), 47.9 in (1217mm) (without droops and tip extensions)
Overall Length: 50.3 in (1278mm)
Wing Area: 731 sq in (47.2 sq dm) (with droops and tip extensions), 675 sq in (43.6 sq dm) (without droops and tip extensions)
Flying Weight: 7.0 - 7.5 lb (3.18 - 3.40 kg)
Engine Size: .40 - .52 2-stroke
Radio: 4 channels (5 channels with functioning flaps)
Servos: 5 servos (7 servos needed for optional flaps)
Trim Scheme Colors: Light Grey
Wing Loading: 22.8 - 24.78 oz/sq in
Prop Size: 10-11 in
Spinner Size: 2 in (included)

Needed to Complete

• .46 - .52 2-cycle Glow Engine
• 4-channel radio system (minimum) with reciever
• Servos (5)
• 6-inch Servo Lead Extension (2)
• Long Servo Arm (2)
• Y-harness
• Receiver Battery
• Receiver
• Switch Harness
• 2- or 3-bladed Propeller:

Optional/Additional Radio Equipment for Flap Installation

• 5-channel radio system (minimum) with receiver
• Long Servo Arm (2)
• Servo
• Reverse Servo
• Y-Harness
