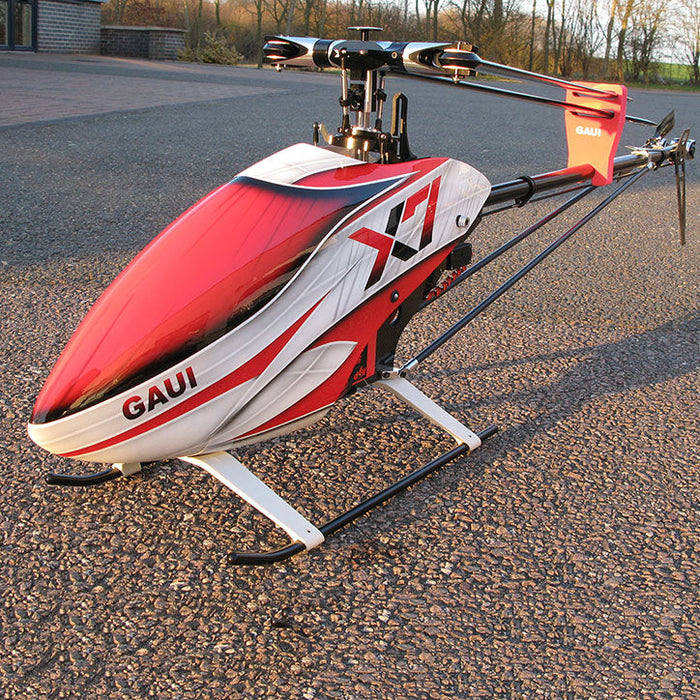

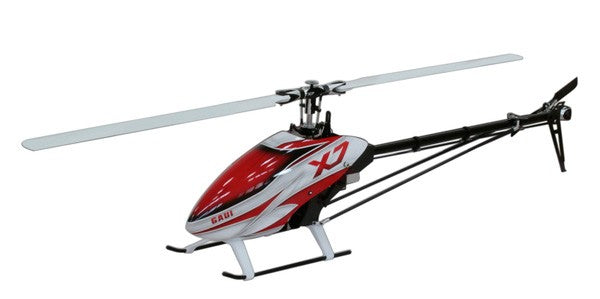

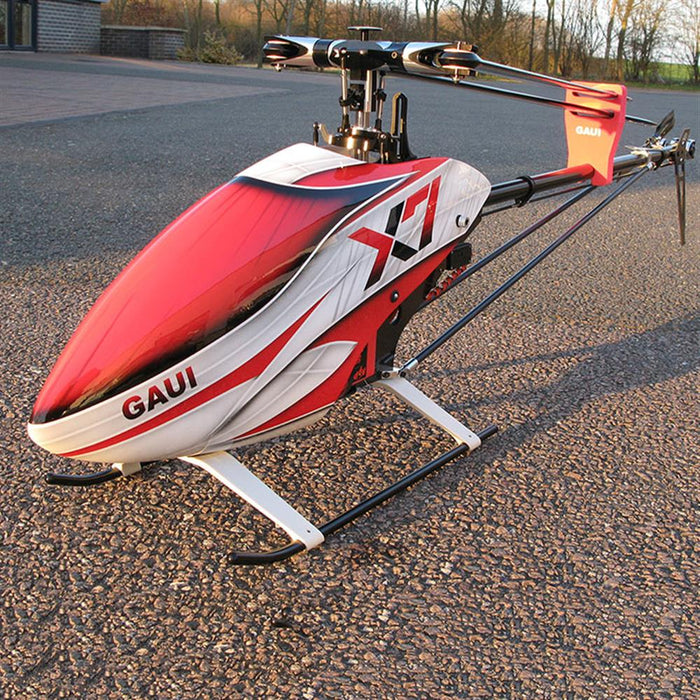

Gaui X7 700 Kit Helicopter

The Gaui X7 is a high performance 3D torque tube driven helicopter that comes with a new design and stylish flybarless main rotor head and swash plate which can produce quicker response and provides superior control precision. It is also equipped with a highly efficient heavy-duty torque tube driven tail, which has excellent performance at high or low head speed. This package do not come with main blades, tail blades and motor.

Features:

• Succinctly & stylishly designed FBL main rotor head and swash plate which produces quicker response and superior control precision.
• I-shape structure and narrow designed CF main frame results in a high rigidity for 3D manoeuvres.
• Equipped with high efficiency heavy-duty torque tube driven tail, which brings excellent performance either in high or low head speed.
• High modulus drive gears/bevel gears can also be compatible for upgrading to 800 class.
• Highest spec CNC 6065 & 7075 aluminium parts, with highest load tolerance and precision for superior 3D performance.

Specifications:

• Overall Length (with Canopy): 1340mm
• Main Rotor Diameter: 1610mm
• Main rotor blades: 720mm
• Overall Height: 370mm
• Overall Width: 200mm
• Tail Blade Length: 105mm
• Tail Rotor Diameter: 290mm
• Motor drive gear: 10T (Ø 6mm)
• Main drive gear: 100T
• Drive gear ratio: 1:10:4.71
• Flying duration: 4~5 minutes
• Power System (Recommended): Motor: 450kV~500kV, ESC: 120A ESC
• Batteries: 6-cell 4200~5500 mAh x 2pcs
• Total weight: 2300g ±3% (kit with canopy, w/o all electronics, blades and batteries.)

This package includes:

• CF main frame/integrated CNC Servo/motor mounts FRP canopy
• X7 Standard Canopy Protective Cover
• Torque Tube Drive

Required to fly:

• Radio (6+channel)
• Receiver
• Cyclic Servos x 3
• FBL Gyro+tail rudder servo
• PowerJive 120HV/ Heli Jive 120HV/CC120HV ESC

• 450~500 KV brushless motor(Motor shaft length ~46mm, Ø6mm)
• 690~710mm main blades
• 95~105mm tail blades
• 6s x 2, 4000-5000mAh Lipo
