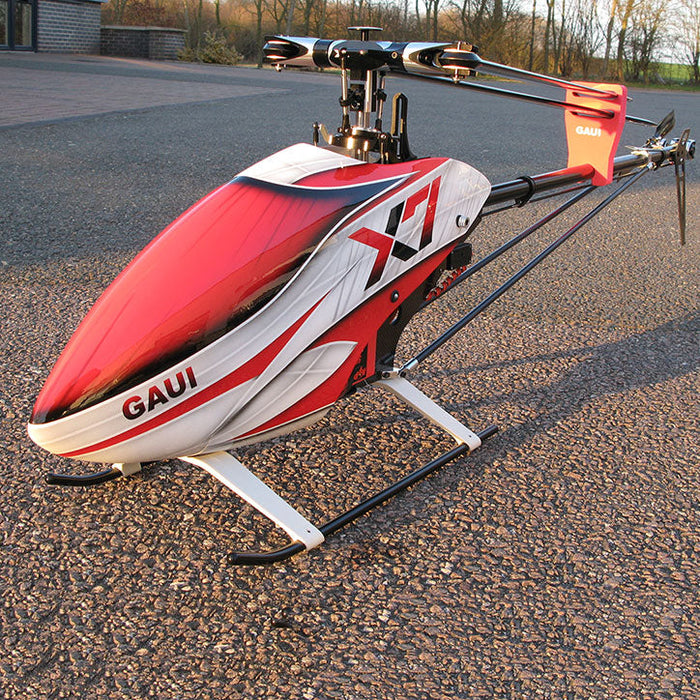

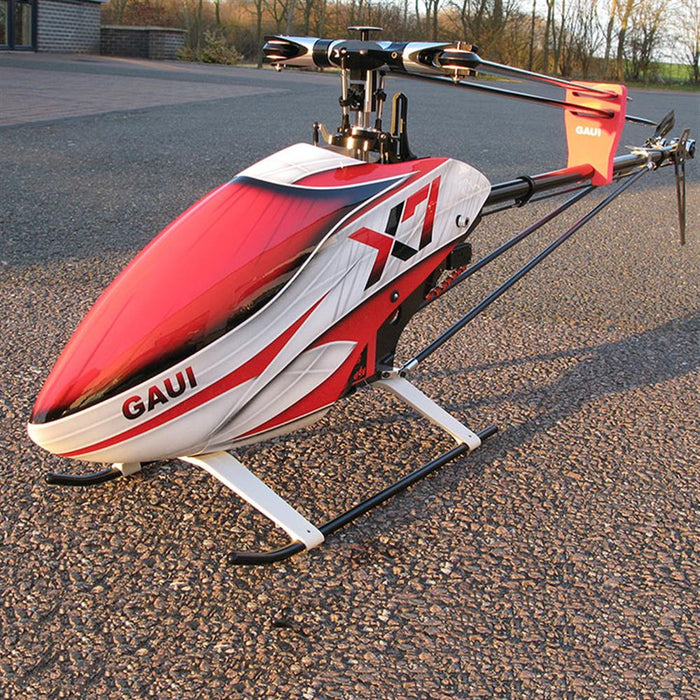

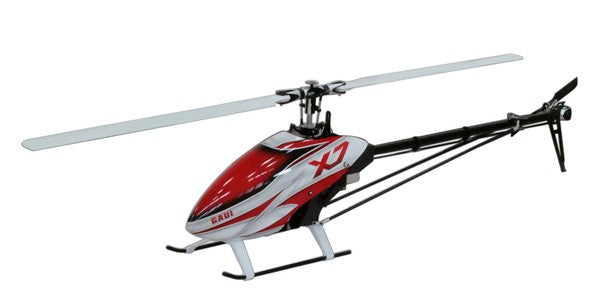

GAUI X7 700 ELECTRIC HELICOPTER RTF
The Gaui X7 is a high performance 3D torque tube driven helicopter that comes with a new design and stylish flybarless main rotor head and swash plate which can produce quicker response and provides superior control precision. It is also equipped with a highly efficient heavy-duty torque tube driven tail, which has excellent performance at high or low head speed.
Features:
- Succinctly & stylishly designed FBL main rotor head and swash plate which produces quicker response and superior control precision.
- I-shape structure and narrow designed CF main frame results in a high rigidity for 3D manoeuvres.
- Equipped with high efficiency heavy-duty torque tube driven tail, which brings excellent performance either in high or low head speed.
- High modulus drive gears/bevel gears can also be compatible for upgrading to 800 class.
- Highest spec CNC 6065 & 7075 aluminum parts, with highest load tolerance and precision for superior 3D performance.
Specifications:
- Overall Length (with Canopy): 1340mm
- Main Rotor Diameter: 1610mm
- Main rotor blades: 720mm
- Overall Height: 370mm
- Overall Width: 200mm
- Tail Blade Length: 105mm
- Tail Rotor Diameter: 290mm
- Motor drive gear: 10T (Ø 6mm)
- Main drive gear: 100T
- Drive gear ratio: 1:10:4.71
- Flying duration: 4~5 minutes
ITEMS INCLUDED:
GAUI X7 700MM ELECTRIC HELICOPTER
FS-ST8 TRANSMITTER
ORANGE RX DSM2 RECEIVER
HOBBYWING ESC 130A HIGH VOLTAGE
FUTABA SERVO ARM-4NO
FUTABA DIGITAL SERVO S3152 -1NO
FUTABA SERVO S9156-3NO
LIPO 22.2V 4500MAH 6S 25C/50C LEMON BATTERY -2NO
CONNECTORS
ALL HARDWARE
RADIO TELEMETRY 433MHZ 500MW FOR PIXHAWK AND APM FC
HOLYBRO PIXHAWK 4 NEO M8N GPS MODULE
HOLYBRO PIXHAWK 6C PM02
ANTI VIBRATION SHOCK ABSORBER
LIPO 7.4V 2200MAH 2S 30C/60C ORANGE BATTERY
FLYSKY FS-ST8 2.4GHZ ANT TRANSMITTER WITH FS-SR8 RECEIVER
UBEC-8A 6-36V 2-8S LIPO ESC
ITEMS EXCLUDED:
- LIPO CHARGER https://www.havochobby.in/products/imax-b6-80w-6a-charger-discharger-1-6-cells-dc-5a-12v-60w-adapter-accopy?_pos=4&_sid=2ee8ed739&_ss=r
- STARTER KIT https://www.havochobby.in/products/align-super-starterfor-helicopter-black-no-battery-inc-hfsstq06t?_pos=1&_sid=5906805f3&_ss=r
