FUTABA RADIO T6L 6CHANNEL

This is the Futaba T6L Sport 6-Channel T-FHSS Air Radio System.
Transmitter and R3106GF Receiver Only, Servos Not Included.

• Elevon, V-Tail and Flaperon mixing
• Built-in full-range transmitter antenna
• Trainer function (student only), Trainer Cord required (not included)
• AUX channel 5 switch function
• AUX channel 6 dial function
• Fail safe function on throttle channel (ch 3) moves throttle servo
• to a predetermined position in the event of radio interference
• Servo reversing
• Low battery alarm
• Link mode
• Range check
• One year limited warranty through the Futaba USA Service Center
• beginning at date of purchase

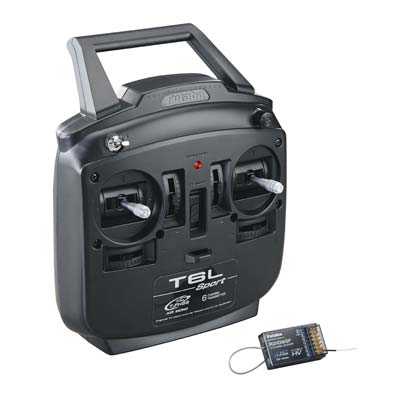

• T6L Sport 6-Channel T-FHSS Air Radio System with the R3106GF
• Receiver and Instruction Manual

• Four AA batteries for transmitter
• Servos of pilot's choice

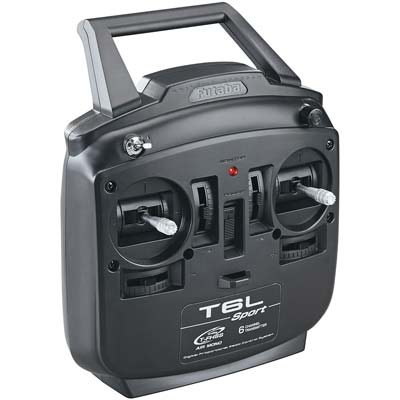

• T6L Sport Transmitter;
• Type: 2-stick, 6-channel, T-FHSS Air (Mono Directional) 2.4GHz system
• Transmitting Frequency: 2.4GHz
• System: T-FHSS Air (Mono Directional), no telemetry
• Power Supply: 6.0V dry battery
• R3106GF Receiver, FUTL7609;
• Type: T-FHSS Air (Mono Directional) 2.4GHz system, no telemetry
• Power Requirement: 4.8-7.4V battery, or regulated output from ESC,
• etc.*
• Dimensions: 1.7 x 0.98 x 0.35" (43.1 x 25.0 x 8.8mm)
• Weight: 0.3oz (7.8g)
• *When using ESC make sure that regulated output capacity meets usage
• application.
