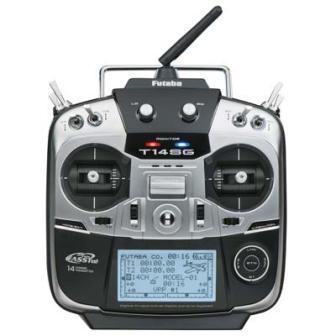

Futaba Radio T14SG 14 Channel

Futaba 14SGA 14-Channel Air Computer System

• 2.4GHz FASSTest technology is also compatible with Futaba FASST and
• S-FHSS protocols, allowing this system to be used with most 2.4GHz
• air receiver Futaba produces
• Transmits and receives telemetry data with Futaba telemetry sensors
• (not included, sold separately) to monitor flight data, receive
• alerts and more, see COMMENTS below
• 30 model memory with 10 character model naming and 10 character user
• naming
• Model data can be saved to an SD card (not included, purchase
• separately SD:32MG-2GB, SDHC:4GB-32GB)
• One year limited warranty through the Futaba USA Service Center
• beginning at date of purchase
• Left and right assignable slider switches
• Two assignable rotary knobs
• Six assignable three-position switches
• One assignable momentary two-position switch
• One assignable two-position switch
• S.BUS2 programmability allows multiple servos, gyros and telemetry
• to be installed with minimum amount of cables
• Programming port and earphone jack

Airplane Features:

• 7 different wing types, 3 different tail types, 2 different rudder
• types
• Flap setting menu
• Differential ailerons
• Aileron to camber flap mixing, aileron to rudder mixing
• Rudder to aileron mixing and rudder to elevator mixing
• Camber mixing, elevator to camber mixing, camber flap to elevator
• mixing
• Snap roll, V-tail and airbrake mixing
• Ailevator
• Winglet
• Motor mixing
• Fuel mixture mixing (single and twin)
• Gyro mixing
• Throttle curve (5-point), Pitch curve (5-point)
• Idle down
• Helicopter Features;
• 6 swash plate types
• Pitch/throttle curves (5-point)
• Throttle hold
• Swash mix
• Throttle mix
• Pitch to rudder mixing
• Fuel mixture
• Gyro (flybarless support)
• Governor (700-3500 rpm)
• Hover pitch and throttle
• High/low pitch
• Swash AFR
• Swash setting (mixing rate, linkage and speed compensation), swash
• ring (electronic)
• Throttle cut

Glider Features:

• 11 different wing types, 3 different tail types, 2 different rudder
• types
• Flap setting menu
• Differential Ailerons
• Aileron to camber flap mixing
• Aileron to brake flap mixing
• Aileron to rudder and rudder to aileron mixing
• Rudder to elevator mixing
• Camber mixing
• Elevator to camber mixing
• Camber flap to elevator mixing
• Butterfly mixing, butterfly to elevator mixing

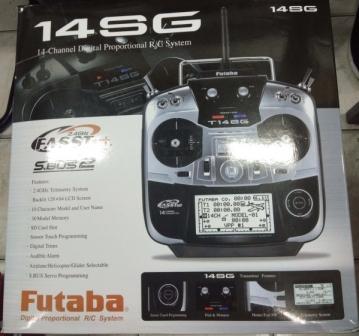

Futaba 14SG 14 Channel 2.4GHz Computer Radio System on Mode 2 with
R7008SB Receiver, 6V 1800mAh NiMH Transmitter Battery, Instruction
Manual, and LiFe Spacer for optional FT2F2100B/FT2F1700B battery*
pack, Battery Charger, Neck Strap, and Switch Harness

Servos of modeler's choice

• Transmitter;
• Transmitting Frequency: 2.4GHz band
• System: FASSTest14CH, FASSTest12CH, FASST MULTI, FASST 7CH, S-FHSS
• switchable
• Power Supply: 6.0V HT5F1800B NiMH battery (FUTM1482)
• R7008SB Receiver (FUTL7675);
• Receiving Frequency: 2.4GHz FASSTest system
• Power Requirement: 3.7 - 7.4V (voltage range 3.5 - 8.4V)
• Current drain: 75mA
• Extra Voltage Port: 0 - 70V DC
• Size: 0.98 x 1.9 x 0.56" (24.9 x 47.3 x 14.3mm)
• Weight: 34.5oz (980g)
