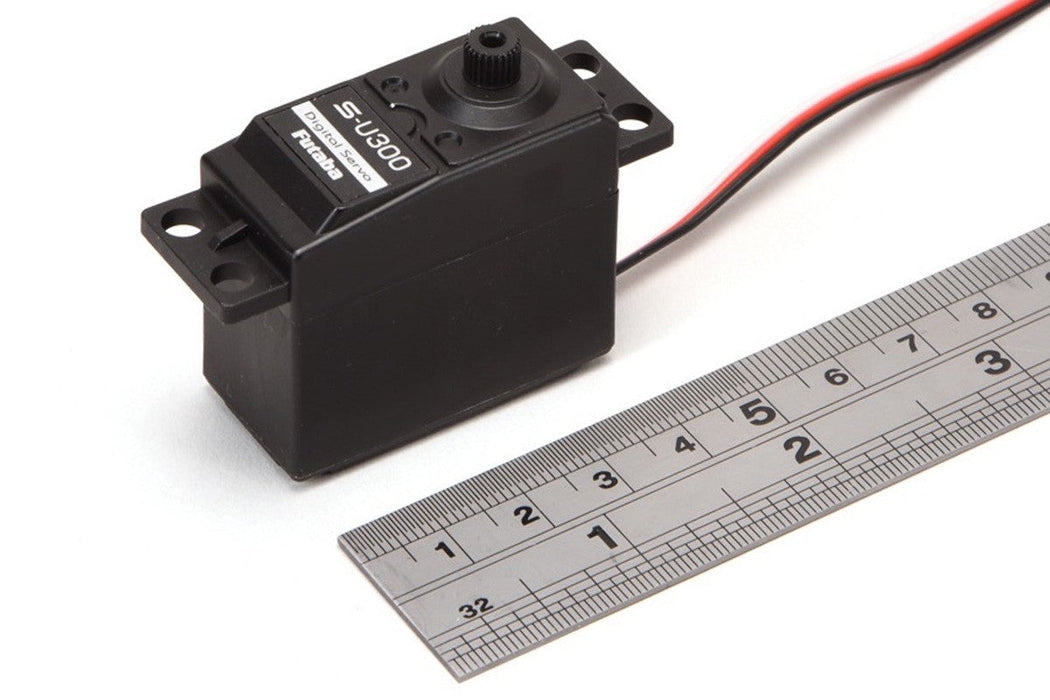

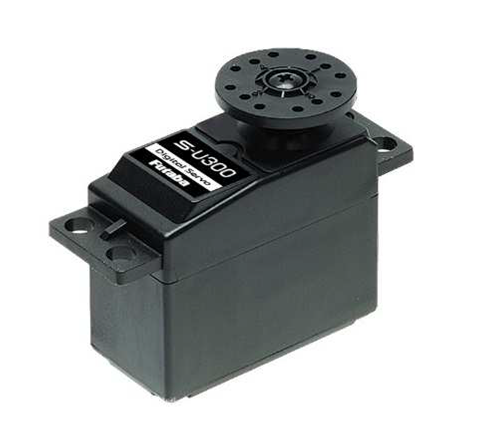

Futaba SU300 (S-U300) Standard Digital Servo

Futaba have introduced the new S-U300 programmable servo (a upgrade of popular S3003 Servo). Featuring a wireless assembly technology, the servo has a high vibration resistance and long lifetime. The servo produces up to 4,1kg-cm of torque at a speed of down to 0,19s when operated with 6V input. The S-U300 features a 6-way potentiometer with indirect drive while the S.BUS2 technology making it programmable with many adjustable parameter settings.

Specification:

• Torque (4.8V): 3.2kg-cm
• Torque (6.0V): 4.1kg-cm
• Speed: 0.23s (4.8V), 0.19s (6.0V)
• Operating voltage: 4.8 �0V
• Working frequency: 50 � 70Hz
• Weight: 36g
• Size: 40.4 x 19.8 x 36mm

Plastic Gearing

6mm/25T Spline

3Pole Cored Motor
