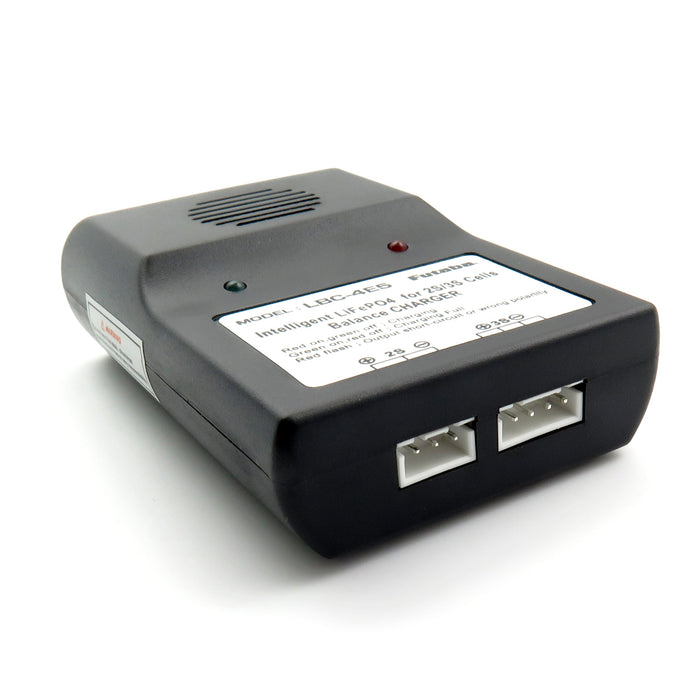

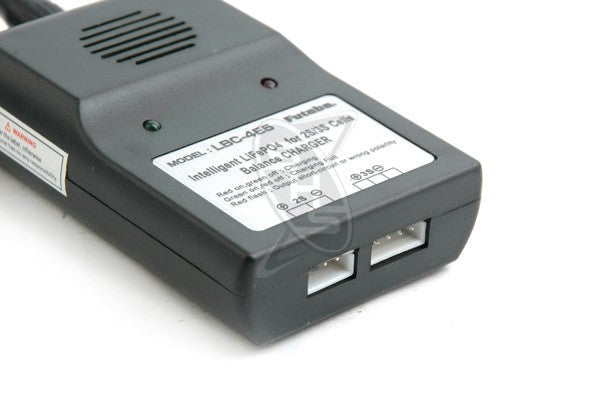

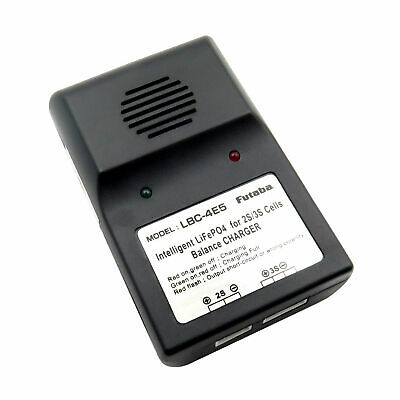

Futaba Life Charger Lbc-4E5

FUTABA LBC-4E5 LIFE BATTERY CHARGER

Futaba LBC-4E5 LiFe Battery Charger is designed for use with Li-FePO4 polymer battery, it is compaitible with Futaba FR2F1800 LiFe battery for receiver.

Specifications:

• Rechargeable battery: Li-FePO4 polymer battery/2S or 3S
• Operating Temperature: 0^oC~ +40^oC (0^oC~ +30^oC is recommended)
• Storage temperature: -20^oC ~ +60^oC
• Input: DC10 ~ 18V (DC12 ~ 16V is recommended)
• Output: 8.4V(2S), 12.6V(3S)
• Output current: 1.1A
• Balancce Voltage: 30mV
• Protection circuit: Reverse/Short
• Output connector: 2S/3S (Do not connect to the "2S" and "3S" simultaneously or at the same time)
• Dimensions: 23.5 x 53 x 81.5mm (main charger's body)
• Weight: 53g

Specifications of AC Adapter (FAD-4): NOT INCLUDING

• Rated Input: AC 100 ~ 240V, 50/60Hz, 650mA
• Rated Output: DC 15V, 800mA
• Dimensions: 47 x 70 x 31mm (excluding wires)
• Weight: 103g
