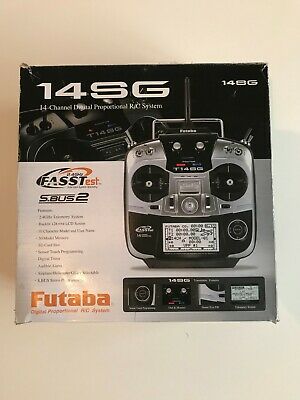

FUTABA RADIO T14SG 14CHANNEL TX &RX

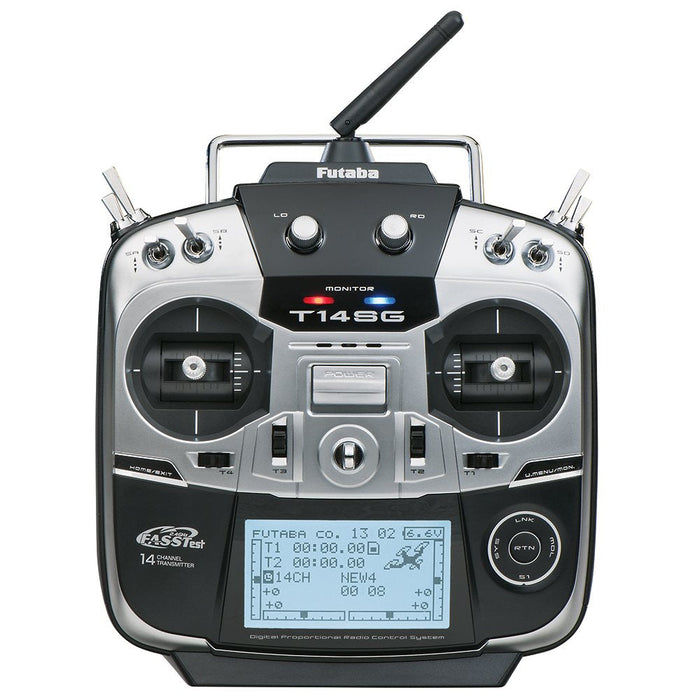

Futaba 14SGH 14Channel 2.4GHz Radio Transmitter & Receiver

Product Description

The Futaba 14SG is the only 14-channel system with 2.4GHz FASSTest technology. It's also compatible with Futaba FASST and S-FHSS protocols, so you can fly with virtually any 2.4GHz air receiver Futaba produces.

The 14SG can transmit bi-directionally and receive telemetry data. Install Futaba telemetry sensors (sold separately) to monitor flight data, receive alerts while in flight and more. Heli pilots will prefer the 14SG's 3-axis gyro support, which makes the 14SG the perfect system for flybarless flight. The 14SG is also a great choice for multirotors, offering all the features and functions pilots demand for First Person View racing!

14SGH Features:

• Channels: 12 proportional, 2 switched
• Compatible with FASSTest, FASST and S-FHSS protocols
• FASSTest telemetry - compatible with Futaba telemetry sensors (sold separately)
• Free online user-updatable software
• 30-model memory
• 10-character user naming
• 10-character model naming
• Airplane, helicopter, multirotor and glider programming
• Large, 1.75" x 3" backlit LCD screen with 128 x 64 resolution
• SensorTouch programming

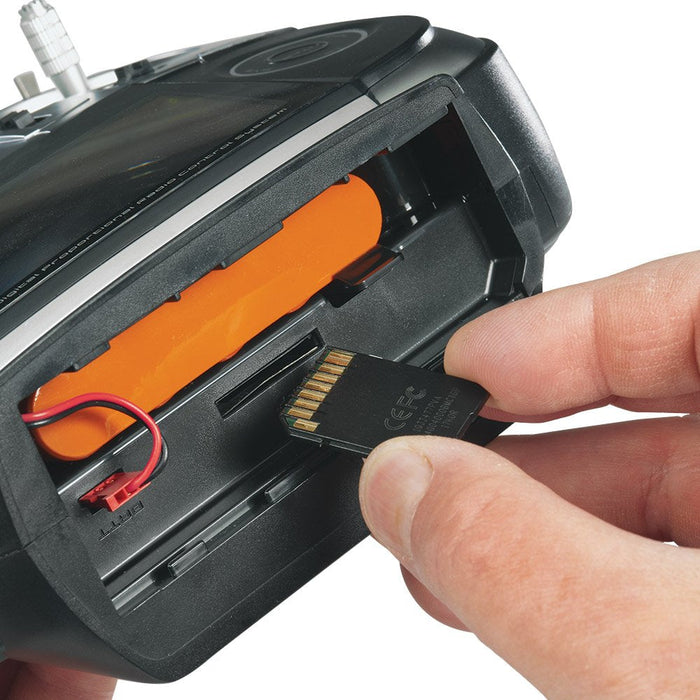

• Compatible with secure digital memory cards for external storage of model setups and software updates (32MB-2GB; HC (High-Capacity): 4GB-32GB)
• Left and right assignable slider switches
• Two assignable rotary knobs
• Six assignable three-position switches
• One assignable momentary two-position switch
• One assignable two-position switch
• Comfortable rubber grips on the sides and back
• Wide top switch spacing
• Adjustable stick tension
• 4 vibration warning types
• Home/Exit; User Menu/Servo Monitor buttons
• Audio earphone jack (for telemetry alarms)
• 6V 1800mAh NiMH battery pack
• User stick calibration
• Trainer system
• Servo speed adjust
• 5 programmable mixes
• V-tail, Ailevator, winglet, motor mixing
• Trim mix
• Logic switch (condition switch only)
• Internal programmer for S.Bus servos
• User menu
• Servo monitor (neutral and moving tests)
• 2 count up/countdown timers
• Integral timer
• Model timer
• Quick model select
• Dual ball bearing gimbals

R7008SB Receiver Features:

• Bidirectional communication for telemetry through the S.Bus2 port
• Bus technology: serial bussing multiple servos for cleaner installations
• 8-chanell PWM output ports for standard configurations
• Dual Antenna Diversity (DAD) maximizes signal reception
• High Voltage
• External voltage port
• Battery fail safe
• Channel mode allocations for dual receiver set-ups
• Power Requirement: 3-7-7.4V (voltage range: 3.5-8.4V)
• Extra Voltage Port: 0-70V DC
• Receiver Dimensions: 0.98 x 1.9 x 0.56"; (24.9 x 47.3 x 14.3 mm)
• Receiver Weight: 0.38 oz (10.9 g)

Requirements:

• Servos of modeler's choice

Specifications:

• Transmitting Frequency: 2.4GHz band
• System: FASSTest 14-channel; FASSTest 12-channel; FASST multi; FASST 7-channel; S-FHSS switchable
• Power Supply: 6.0V HT5F1800B NiMH Battery (FUTM1482)
