Fly Sky Radio FS-i6S Remote Control 2.4G 10CH AFHDS with FS-IA10B Receiver

FS-i6S Radio Remote Control 2.4G 10CH AFHDS with FS-IA10B Receiver

Specifications:

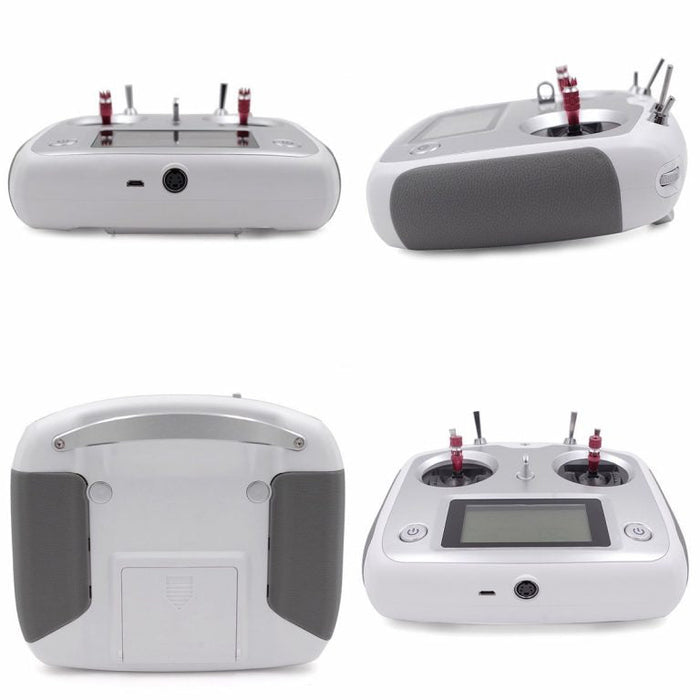

Transmitter

1. Brand Name: FlySky
2. Item Name: FS-i6s transmitter
3. Channel: 10
4. Model Type: Quadcopter
5. Channel resolution: 4096 steps
6. Low voltage warning: less than 4.2v
7. ANT length: 26 x 2mm( dual antenna)
8. Weight: 576g(Without mobile Holder)
9. Battery: 6v 1.5 AA x 4(not included)
10. Size: 179 x 81 x 161mm
11. Color: Silver
12. Certificate: CE ,FCC
13. RF specification:
14. RF Range: 2.405 – 2.475GHz
15. Bandwidth: 500khz
16. RF Power: less than 20dBm
17. RF mode: AFHDS 2A
18. Modulation type: GFSK
19. RX Sensibility: -105dBm

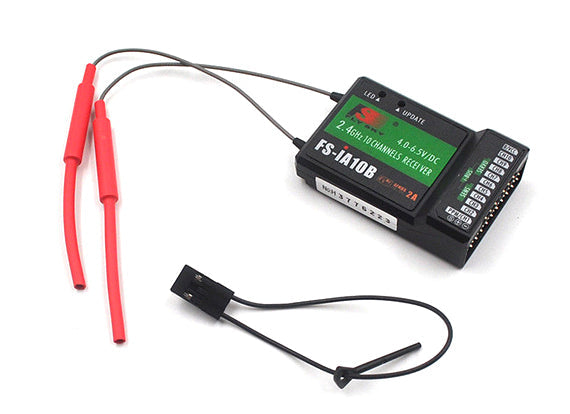

Receiver:

1. Brand Name: Flysky
2. Item Name: FS-IA10B Receiver
3. Number of Channels: 10
4. Suitable models: Airplane / glider / helicopter Health
5. Frequency range :2.4-2 .48 GHz
6. Number of newspapers: 160
7. Transmitting power: not more than 20dBm
8. Receiver sensitivity:-105dBm
9. 4G modes: automatic frequency second generation digital system
10. Encoding: GFSK
11. Antenna length: 26 mm * 2 (dual antenna)
12. Weight: 19.3 g
13. Input power :4.0~6 .5 V DC
14. Dimensions: 47  x 33.1 x 14.7 mm
15. Color: Black
16. Certification: CE0678, FCC
17. i-BUS Interface: Yes
18. Data acquisition interface: Yes

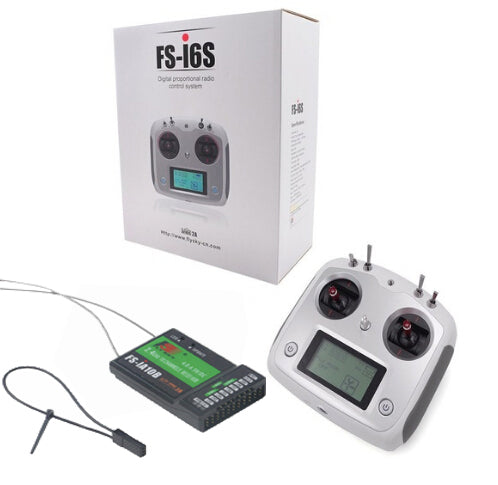

 Package Includes:

1 x FS-i6S Remote Control 2.4G 10CH AFHDS Transmitter

1 x FS-IA10B Receiver

1 x USB Cable

1 x User Manual
